What specific bullet diameter and length range is the Lee Precision 90887 designed to handle?

This model is engineered for bullet diameters from .355 to .365 inches and lengths ranging strictly from 0.460 inches up to 0.600 inches. This makes it ideal for standard 9mm Luger, .380 Auto, and .357 SIG projectiles.

Which reloading presses are compatible with the Lee 90887 Bullet Feed Die & Fingers?

It is specifically designed for legacy Lee progressive presses including the Pro 1000 manufactured after 1992 and the Load-Master. For presses utilizing standard threaded setups like the Auto Breech Lock Pro, dedicated bushings or lock rings are required.

What happens if my bullets fall outside the 0.460 to 0.600 inch length window?

If your projectiles are shorter than 0.460 inches, such as lightweight 90-95 grain .380 ACP bullets, you will need Lee model 90893. Conversely, bullets longer than 0.600 inches, like heavy 147 grain 9mm projectiles, require Lee model 90895.

Does this mechanical reloading accessory require any electrical compliance or SAA/RCM certification in Australia?

No, the Lee 90887 is a 100% mechanical reloading press accessory that requires zero electrical input. Therefore, Australian 240V mains power specifications, plugs, and SAA/RCM regulatory marks do not apply.

What types of bullet profiles work best with these feed fingers?

The unit is optimized primarily for jacketed or lead round-nose flat-base bullets to ensure smooth feeding. Wadcutters, semi-wadcutters, or heavily rebated boat-tail bullets may experience feeding failures, tipping, or alignment issues in the die.

How many bullets can the feed system hold at once when paired with this die?

The die feeds seamlessly from standard 25-bullet capacity feed tubes included in legacy systems, or up to approximately 100 bullets when you pair your setup with the optional Lee Multi-Tube Feeder.

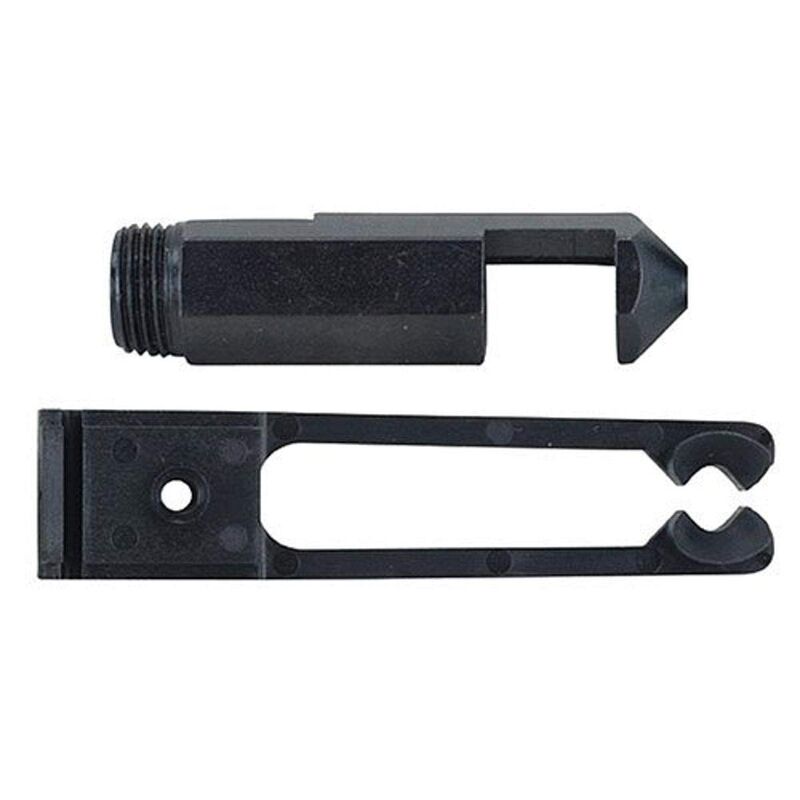

Bullet Feed Die - Lee Precision 90887

The Lee Precision 90887 Bullet Feed Die & Fingers is a dedicated progressive reloading accessory designed to automatically position and seat projectiles directly into flared cartridge cases. Built for legacy progressive setups including the Lee Pro 1000 (post-1992 models with carrier attachment lugs) and Lee Load-Master presses, this 100% mechanical die eliminates manual bullet placement to increase reloading output by 50% to 100%. It serves as an integrated replacement or calibre-conversion component for the Lee Bullet Feed Kit, operating with standard 25-capacity feed tubes or multi-tube configurations without requiring electrical power.

Automated Bullet Placement: Holds, aligns, and drops projectiles straight into the cartridge mouth at the seating station, improving consistency and cycle speed.
Calibre Conversion Component: Adapts existing Lee feeder mechanisms to run medium-length 9mm to .365 caliber projectiles without replacing the complete feeder assembly.
Mechanical Operation: Functions entirely via press stroke mechanics without motors, wiring, or electrical inputs.
Magazine Flexibility: Feeds projectiles from standard 25-bullet single feed tubes or up to approximately 100 rounds when paired with an optional multi-tube adapter.

Specifications

Manufacturer Part Number (MPN): 90887
Compatible Calibre Range: .355″ to .365″ bullet diameter (9mm Luger, .380 Auto, .38 Super, 9x18mm Makarov, .357 SIG)
Compatible Bullet Length Range: 0.460″ to 0.600″ (11.68 mm to 15.24 mm)
Supported Bullet Profiles: Jacketed or lead round-nose flat-base bullets
Press Compatibility: Lee Pro 1000 (post-1992), Lee Load-Master (requires model-specific setup on Pro 4000/Auto Breech Lock Pro)
Packaging Dimensions: Approximately 15 × 5 × 3 cm
Shipping Weight: Approximately 50 g to 90 g
Power Requirement: None (mechanical)

Who is the Lee Precision 90887 Bullet Feed Die & Fingers for?

Progressive reloading press operators loading 9mm Luger, .380 Auto, or .357 SIG — Automatically feeds and aligns projectiles with a diameter of .355 to .365 inches (9mm to .365 caliber) into the case mouth, removing manual handling on compatible progressive presses.
Reloaders converting an existing Lee Bullet Feed Kit to medium-length 9mm projectiles — Adapts an existing reloading press bullet feed die assembly to handle projectile lengths strictly within the 0.460 to 0.600 inch (11.68 mm to 15.24 mm) window, typical of standard 115-grain to 124-grain round-nose profiles.

Less suitable for: Projectiles outside the 0.460″ to 0.600″ range; bullets shorter than 0.460 inches require a dedicated short-bullet feed die (such as model 90893), while bullets exceeding 0.600 inches in length require an extended-length bullet feed die (such as model 90895).

SKU	LE102206LP
Model #	90887
Brand	Lee Precision
Shipping Weight	0.2000kg
