What exact bullet dimensions are compatible with the Lee Precision 90888 Feed Die?

This #4 feed die and small feed finger kit is engineered specifically for bullets with a diameter ranging from .355 to .365 inches and a length between .60 and .75 inches. This makes it ideal for handling high-volume 9mm, .38 Special, and .357 Magnum reloading applications.

Which progressive reloading presses are compatible with this feed die kit?

The 90888 is designed for Lee Pro 1000 and Load-Master progressive presses equipped with the legacy Lee Bullet Feed Kit mechanism. It can also be adapted for the Auto Breech Lock Pro or Pro 4000 when using a steel breech lock bushing and lock ring.

Are there specific bullet profiles that work best with these feed fingers?

Jacketed or lead round-nose flat-base bullets feed most reliably through the included small feed fingers. Bullets with deep hollow points, sharp semi-wadcutters, or lengths outside the .60 to .75 inch boundary conditions may cause bridging, jams, or feeding failures.

Does this mechanical reloading accessory require any electrical compliance or SAA/RCM certification in Australia?

No electrical compliance or certification is required. The Lee Precision 90888 is a completely mechanical, case-actuated accessory that operates without electric motors, making it entirely maintenance-free regarding Australian electrical standards and safe for outback reloading benches.

Bullet Feed Die - Lee Precision 90888

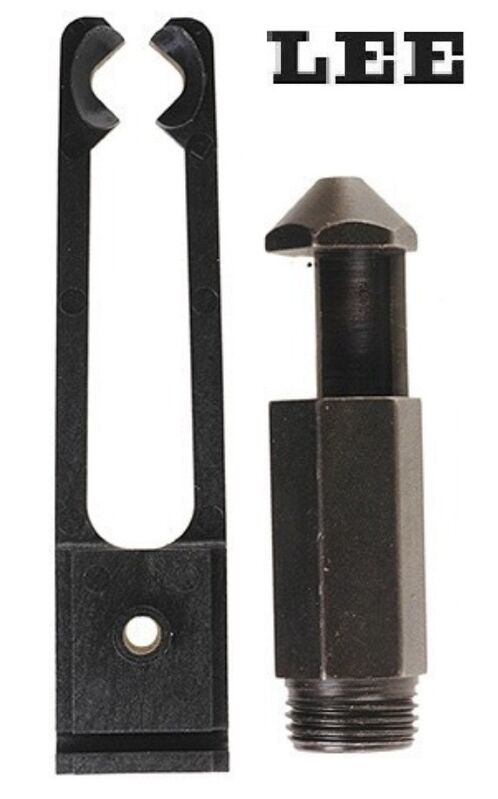

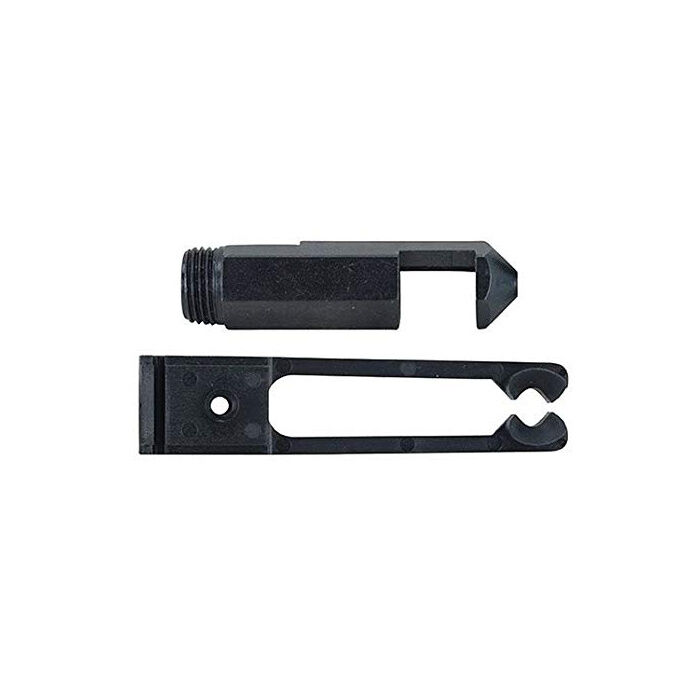

The Lee Precision 90888 Bullet Feed Die & Fingers is a mechanical progressive reloading component designed to automate projectile placement onto flared cartridge cases. Engineered as a calibre and length conversion assembly (Die BF3412 and finger assembly BF4307) for the legacy Lee Bullet Feeder system, it automatically indexes bullets measuring .355" to .365" in diameter with lengths between .60" and .75" (15.24 mm to 19.05 mm). By mechanically seating the projectile squarely over the case mouth as the press ram cycles, it increases handloading output by 50% to 100% compared to manual placement while reducing tilted seatings and case mouth shaving.

Key Features

Automated Bullet Alignment: Uses spring-tensioned plastic feed fingers to drop and align flat-base, round-nose bullets squarely over the flared case neck.
Increased Output: Eliminates manual bullet positioning on progressive strokes, increasing cyclic loading speed by an estimated 50% to 100%.
Fully Mechanical Operation: Operates entirely via case actuation and the physical press stroke without motors, cords, or electrical power requirements.
Direct Press Integration: Compatible with Lee Pro 1000 and Load-Master progressive presses equipped with the legacy Bullet Feed Kit arm (as well as Auto Breech Lock Pro / Pro 4000 presses utilising a steel breech lock bushing and lock ring).

Specifications

Manufacturer Part Number (MPN): 90888 (Die BF3412 + Fingers BF4307)
Compatible Bullet Diameters: .355" to .365" (e.g., 9mm Luger, .380 ACP, .38 Super, 9x18mm Makarov, .38 Special, .357 Magnum)
Compatible Bullet Lengths: .60" to .75" (approx. 15.24 mm to 19.05 mm)
Preferred Bullet Profiles: Jacketed or lead round-nose flat-base projectiles
Press Compatibility: Lee Pro 1000, Load-Master, and Auto Breech Lock Pro / Pro 4000
Weight: Approximately 0.05 kg to 0.1 kg

Who is the Lee Precision 90888 Bullet Feed Die For 9mm To .365 Caliber .60 To .75 Long for?

IPSC and Service Pistol Competitors — who require rapid progressive reloading of high-volume 9mm Luger and .38 Super match ammunition using bullets measuring between .355" and .365" in diameter with projectile lengths strictly between .60" and .75".
Cowboy Action Shooting (CAS) Participants — who handload .38 Special and .357 Magnum cartridges on progressive presses using .357" to .358" diameter round-nose lead bullets that fall within the .60" to .75" length window to maintain consistent feeding rates.

Less suitable for: Projectiles shorter than .60" or longer than .75", sub-.355" calibres, or bullets larger than .365" (such as .40, .44, and .45 calibres), which jam or fail to feed and require shorter, longer, or alternate diameter-specific feed die assemblies; and standalone 7/8"-14 single-stage or progressive presses lacking the legacy feed mechanism, which require a dedicated inline bullet feed die.

SKU	LE102205LP
Model #	90888
Brand	Lee Precision
Shipping Weight	0.2000kg
