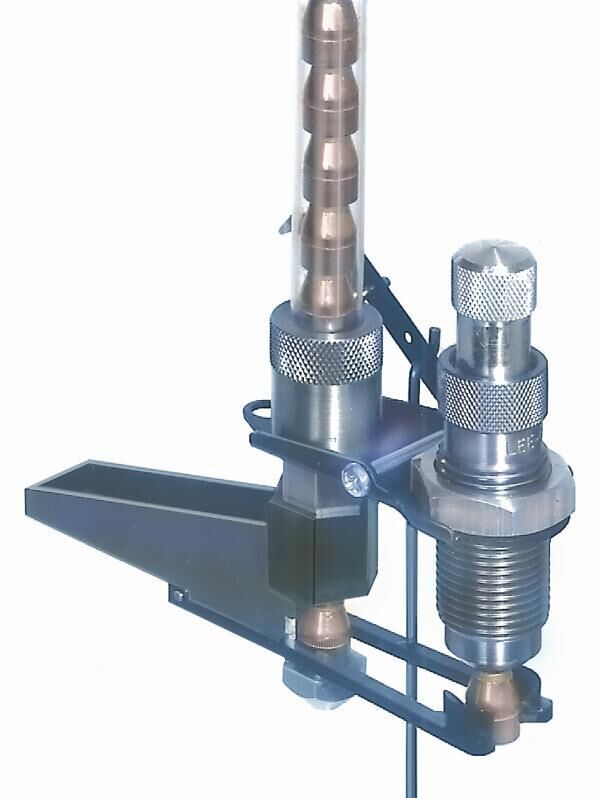

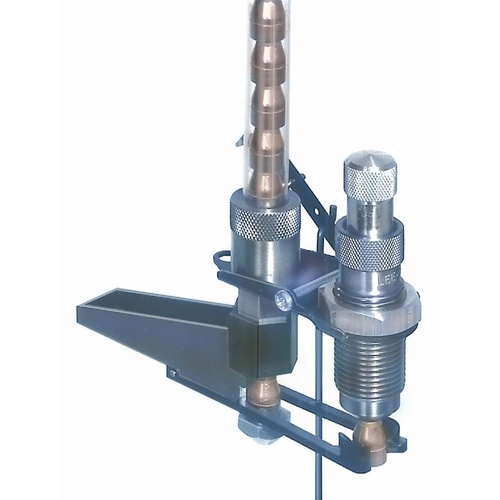

The Lee Precision Bullet Feed Kit (MPN 90894) is a purely mechanical progressive reloading accessory designed to automate projectile placement directly into the case mouth at the bullet seating station. Powered entirely by the mechanical stroke of the press ram without motors or electrical wiring, this kit eliminates manual bullet positioning to align projectiles consistently and increase progressive reloading cyclic output by 50% to 100%.

Key Features

• Mechanical Operation: Actuates automatically via press linkages during the reloading cycle, requiring no 240V power or electronic collator hardware.
• Consistent Alignment: Feeds and positions projectiles square to the case mouth, reducing alignment errors during high-speed seating strokes.
• Standard Clear Feed Tube: Includes a dual-nesting clear tube assembly (~13 inches long) that holds approximately 25 bullets for visual tracking during operation.
• Progressive Press Integration: Mounts natively to Lee Pro 1000 and Lee Load-Master progressive presses, and fits the Lee Auto Breech Lock Pro / Pro 4000 using standard Breech Lock bushings and lock rings.

Specifications

• Model Number (MPN): 90894
• Compatible Bullet Diameter: 9mm (.355″) through .365″
• Compatible Bullet Length: 0.460″ to 0.600″ (11.68 mm to 15.24 mm)
• Feed Tube Capacity: Approximately 25 bullets
• Feed Tube Dimensions: ~13″ length (.445″ OD / .375″ ID inner tube; .562″ OD outer tube)
• Unit Weight: Approximately 0.23 kg (0.5 lbs)
• Power Requirement: 100% mechanical (press-actuated)

Who is the Lee Precision 90894 Bullet Feeder Kit for?

• High-volume 9mm handloaders competing in IPSC handgun disciplines — feeds standard handgun projectiles measuring between 0.460″ and 0.600″ (11.68 mm to 15.24 mm) in length directly into cases to support fast, repetitive match ammunition production.
• Sport shooters using Lee progressive presses seeking faster cyclic output — uses a mechanical bullet feeder kit holding approximately 25 bullets to eliminate manual projectile handling on Lee Load-Master and post-1992 Lee Pro 1000 presses.

Less suitable for: Handloaders using projectiles outside the 0.460″ to 0.600″ length window or diameter range outside .355″ to .365″ (who require dedicated short-, long-, or alternate-calibre bullet feed kits), reloaders running pre-1992 Pro 1000 carriers lacking the carrier attach lug, or standard 7/8″-14 single-stage press users needing standalone inline bullet feed dies.
