What mounting options does the Leupold SX-5 Santiam HD 27-55x80mm have for tripods?

The SX-5 Santiam HD features both an integrated Arca-Swiss tripod adapter foot and a built-in 1/4-20 tripod adapter port. This dual setup allows it to connect directly to Arca-Swiss quick-release heads and standard camera or spotter tripods without requiring additional mounting plates.

How does the angled body and rotating eyepiece help when glassing in the field?

The angled body features a rotatable eyepiece with a built-in locking tripod collar, letting you rotate the scope body left or right to suit your viewing position. This ergonomic design significantly reduces neck strain during awkward viewing angles or when glassing for extended periods from a vehicle.

Is the Leupold SX-5 Santiam HD built to withstand harsh Australian outdoor conditions?

Yes, this spotting scope is fully nitrogen-purged, waterproof, and fogproof to handle extreme environments ranging from the alpine humidity of the Snowy Mountains to the dusty heat of the Australian Outback. Additionally, it features hydrophobic Guard-ion coatings to easily shed water, dirt, and oil from the lens surface.

Does this optic require any Australian electrical or regulatory compliance?

No electrical compliance is required because the Leupold SX-5 Santiam HD is a purely mechanical, passive optical instrument containing no integrated electronics, batteries, or digital components. Therefore, it does not need 240V mains power compatibility, an Australian power plug, or SAA/RCM certifications.

Angled Spotting Scope - Leupold LE185605

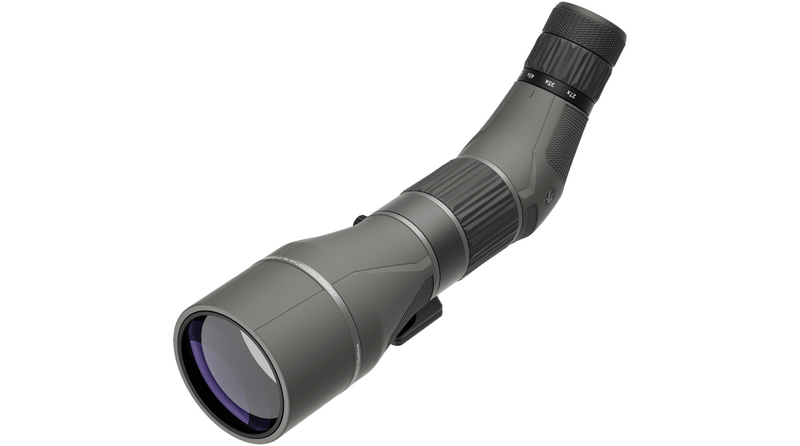

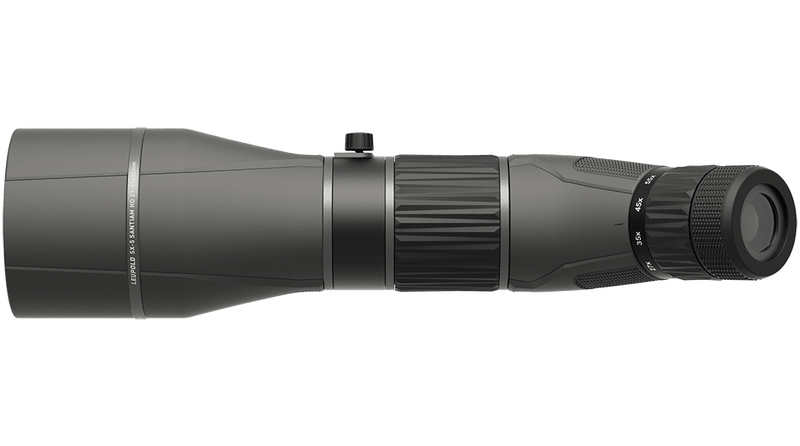

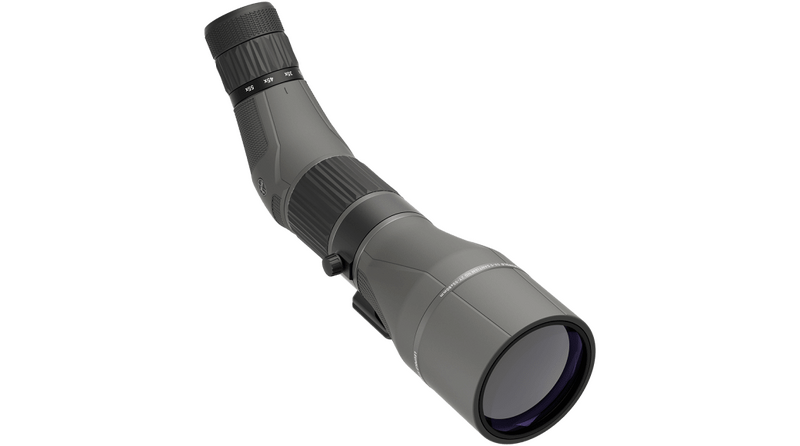

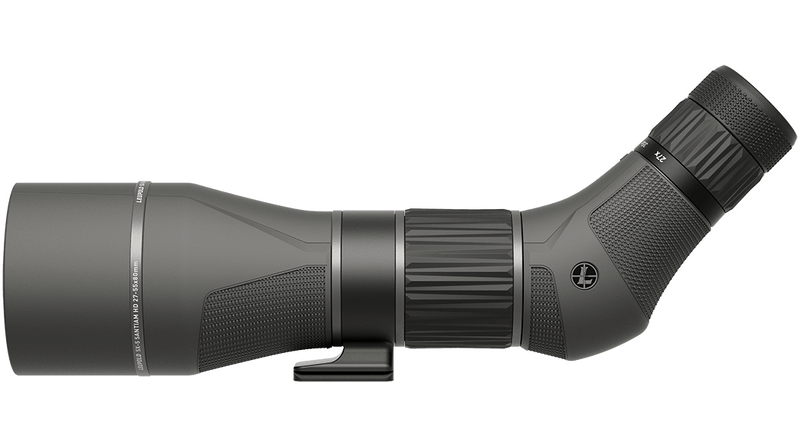

The Leupold SX-5 Santiam HD 27-55x80mm Angled Spotting Scope (Model LE185605) is a high-performance optical instrument engineered for demanding, long-range observation. Featuring an 80mm objective lens and a versatile 27x to 55x magnification range, this spotting scope delivers clear edge-to-edge resolution and light transmission under challenging lighting conditions. Designed and assembled in the USA, it utilizes high-definition calcium-fluoride lenses to minimize chromatic aberration, ensuring precise color rendition and sharp resolution across the entire field of view.

Key Features:

Professional-Grade Optical System: Incorporates phase-coated roof prisms and calcium-fluoride lenses to eliminate color fringing and maximize light transmission in low-light environments.
Advanced Protective Coatings: Features DiamondCoat 2 ion-assist exterior lens coatings for scratch resistance, alongside a hydrophobic Guard-ion coating that sheds dust, dirt, oil, and water from the lens surface.

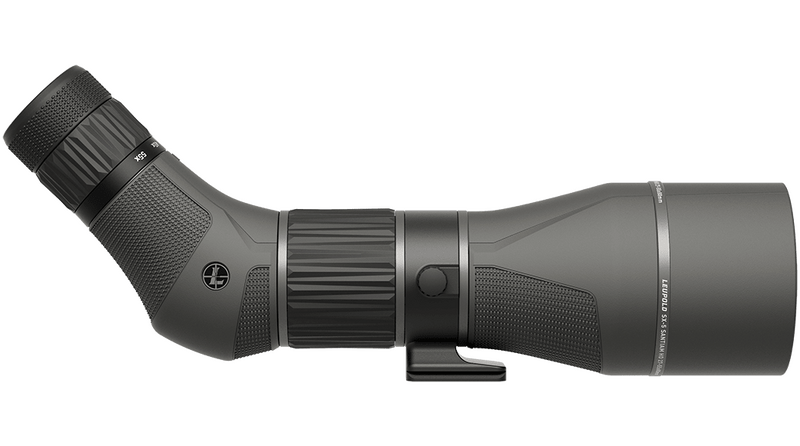

Integrated Arca-Swiss Mounting: Equipped with a built-in Arca-Swiss tripod adapter foot and a standard 1/4-20 tripod adapter port, allowing direct mounting to compatible quick-release heads without the need for extra plates.

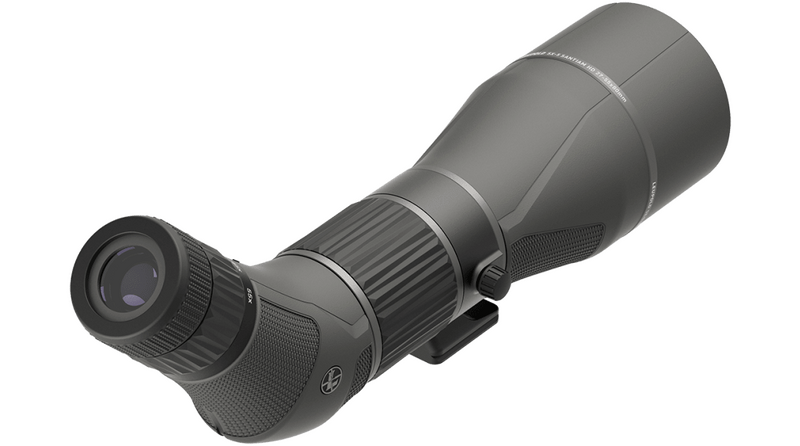

Ergonomic Angled Design: The angled body style includes a rotatable eyepiece with a locking tripod collar, enabling comfortable viewing from varied angles and reducing neck fatigue during long glassing sessions.
Fast Focus System: Features a 270-degree barrel focus mechanism that allows for quick, precise adjustments from close-focus distances up to infinity.

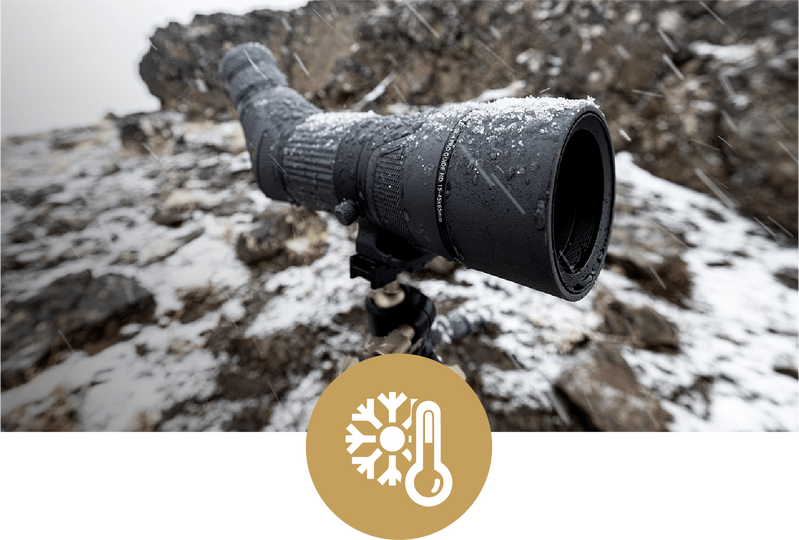

All-Weather Reliability: Fully nitrogen-purged, waterproof, and fogproof, this spotting scope is built to withstand harsh Australian conditions ranging from alpine humidity in the Snowy Mountains to the dry heat of the Outback.

Technical Specifications:

Magnification: 27x to 55x
Objective Lens Diameter: 80 mm
Weight: 68.7 ounces (approximately 1.95 kg)
Length: 15 inches (approximately 381 mm)
Eye Relief: 16.6 mm (at 55x) to 19.2 mm (at 27x)
Linear Field of View (at 1000 Yards): 105 feet at 27x; 73 feet at 55x
Angular Field of View: 2.0 degrees (at 27x) to 1.4 degrees (at 55x)
Close Focus Distance: 11 feet (3.35 metres)
Mount Compatibility: Integrated Arca-Swiss foot and 1/4-20 tripod port

Who It's For:

The Leupold SX-5 Santiam HD 27-55x80mm Angled Spotting Scope is designed for backcountry hunters, target shooters, and wildlife observers who require highly detailed, long-range optical performance. It is particularly suited for individuals needing to read wind conditions, spot bullet impacts on distant targets, or identify specific trophy animal features in rugged outdoor terrain where absolute visual precision is required.

SKU	LD38975LP
Model #	LE185605
Brand	Leupold
Shipping Weight	1.0000kg
