Is the Leupold Mark 4HD 1-4.5x24 suitable for both close-quarters engagements and mid-range hunting in Australian conditions?

Yes, the Leupold Mark 4HD is a versatile Low Power Variable Optic (LPVO) designed for this exact purpose. Its true 1x magnification allows for rapid target acquisition similar to a red dot in close quarters, while the 4.5x zoom provides the capability for precise target engagement at mid-range distances. Its rugged, waterproof, and fogproof construction also makes it ideal for the demanding Australian bush and outback environments.

What Australian safety regulations apply to the Leupold Mark 4HD, particularly concerning its internal battery?

As an optical device powered by a 3V CR2032 coin battery, the Leupold Mark 4HD does not require 240V electrical safety approvals or RCM telecommunications testing. However, it complies with strict Australian mandatory safety standards for products containing button/coin batteries. This means the battery compartment requires a tool or dual-simultaneous action to open, and the product packaging includes the necessary warning labels to prevent child ingestion hazards.

How do the illuminated FireDot BDC reticle and Motion Sensor Technology (MST) enhance the Leupold Mark 4HD's performance?

The illuminated FireDot BDC reticle features a daylight-bright red center dot with 8 brightness settings, enabling rapid target acquisition and providing holdovers for elevation adjustments at extended ranges. The Motion Sensor Technology (MST) automatically deactivates the reticle illumination after 5 minutes of inactivity to conserve battery life. It instantly reactivates the illumination upon detecting any movement, ensuring your reticle is ready when you are.

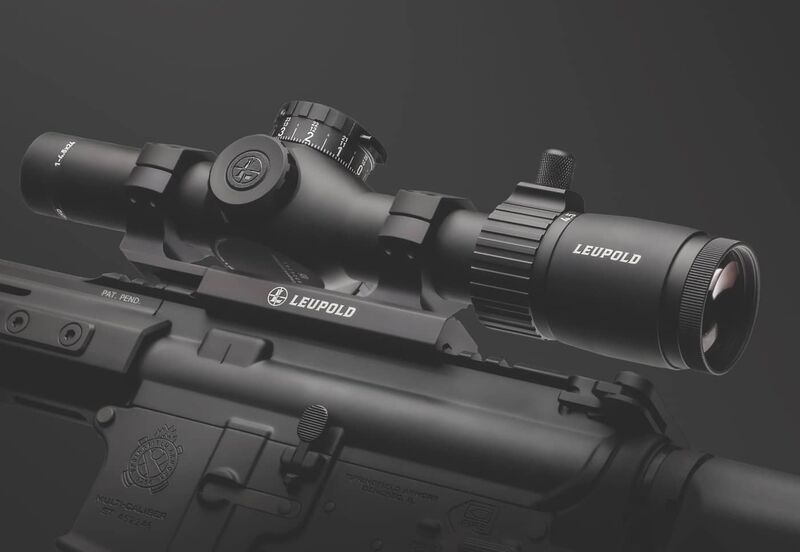

What type of mounting rings are compatible with the Leupold Mark 4HD 1-4.5x24 riflescope?

The Leupold Mark 4HD 1-4.5x24 features a 30mm maintube diameter, requiring 30mm mounting rings. For optimal performance and secure attachment, we recommend Leupold's own 30mm rings, such as the Leupold QRW2 Quick Release Weaver Style Rings (LE174074) or the Leupold Backcountry Rings (LE175120), both available in our range.

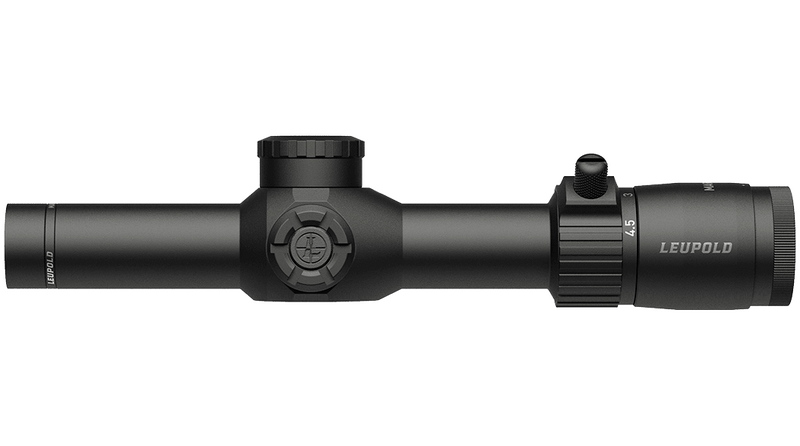

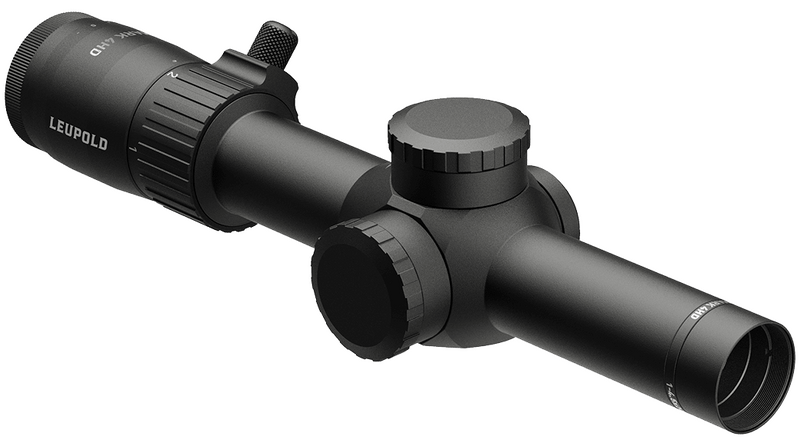

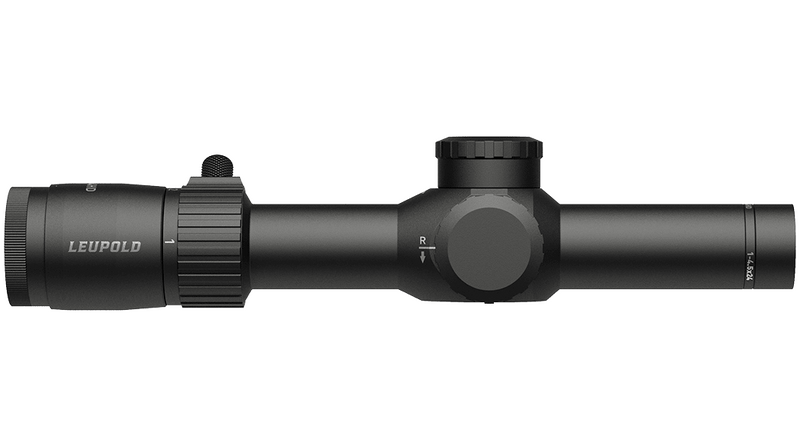

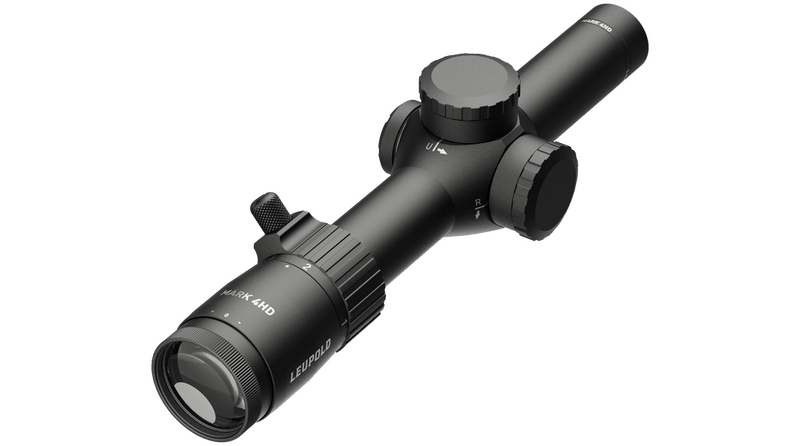

LPVO Riflescope - Leupold Mark 4HD LE183315

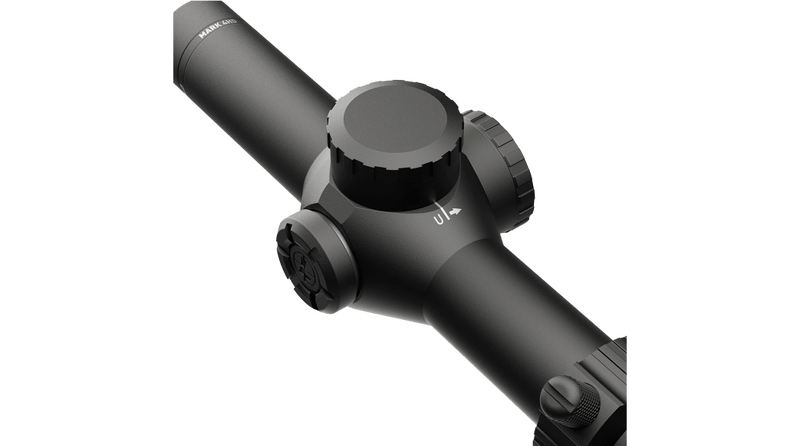

The Leupold Mark 4HD 1-4.5x24 30mm SFP Illum. FireDot BDC (Model 183315) is a high-performance Low Power Variable Optic (LPVO) engineered to bridge the gap between close-quarters speed and mid-range precision. Built around a robust 30mm maintube, this riflescope features a 4:1 zoom ratio that transitions smoothly from a true 1x magnification up to 4.5x. The second focal plane (SFP) design ensures the reticle remains constant in size across the entire magnification range, providing a consistent and familiar aiming point. Designed to withstand harsh environmental conditions, this optic utilizes a professional-grade optical system that maximizes light transmission and minimizes glare in direct sunlight.

Key Features:

Illuminated FireDot BDC Reticle: Features a daylight-bright red center dot with 8 brightness settings, paired with bullet drop compensation holdovers for quick elevation adjustments at extended ranges.
Motion Sensor Technology (MST): Automatically deactivates the reticle illumination after 5 minutes of inactivity to preserve the CR2032 battery, instantly reactivating upon detecting movement.
Professional-Grade Optics: Provides edge-to-edge clarity and advanced glare reduction, ensuring a clear sight picture in challenging lighting conditions.
Rugged Construction: Manufactured from lightweight, aircraft-grade aluminum, making the housing waterproof, fogproof, and shockproof.
Integrated Throw Lever: Includes a removable, low-profile throw lever for fast, positive magnification adjustments in the field.
Australian Battery Safety Compliance: The battery compartment housing the CR2032 coin cell is designed to comply with Australian mandatory safety standards, requiring secure access to prevent child ingestion hazards. Because this is a low-voltage, purely optical device, standard SAA 240V AC electrical safety approvals are not applicable.

Product Specifications:

Model Number: 183315 (LE183315)
Magnification Range: 1x to 4.5x
Objective Lens Diameter: 24 mm
Maintube Diameter: 30 mm

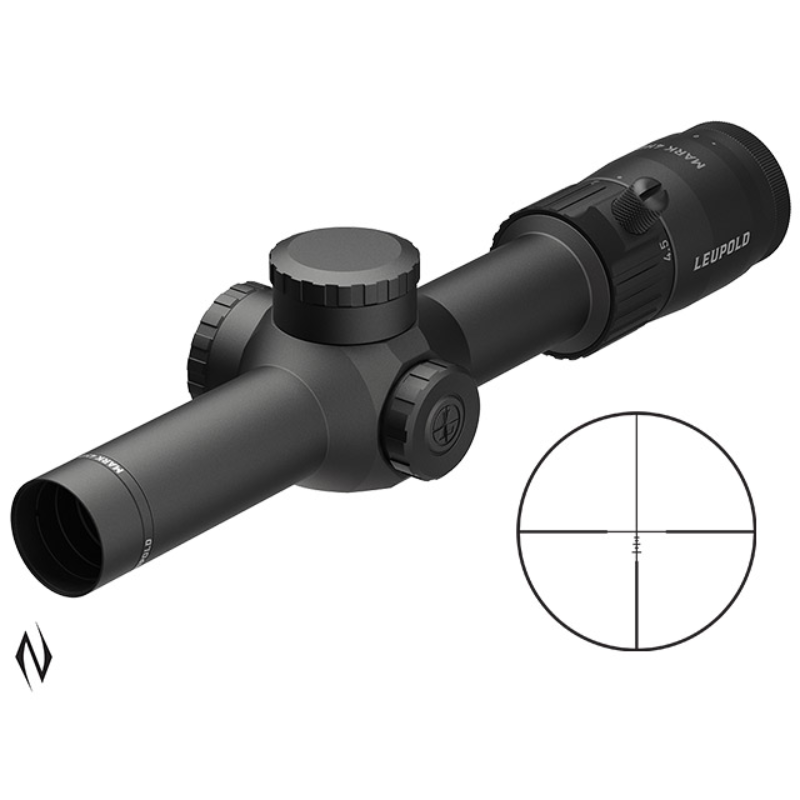

Reticle Type: Illuminated FireDot BDC (Second Focal Plane)
Total Length: 10.70 inches (approx. 27.18 cm)
Weight: 18.0 ounces (approx. 510 grams)
Eye Relief: 3.70 inches to 3.90 inches
Linear Field of View: 118.8 feet at 1x to 25.2 feet at 4.5x (at 100 yards)
Turret Style: Capped elevation and windage turrets with 1/4 MOA click values
Total Adjustment Range: 165 MOA (48 MIL) for both windage and elevation
Parallax: Fixed at 150 yards
Power Source: 1 x CR2032 coin-cell battery

Who It Is For:

The Leupold Mark 4HD 1-4.5x24 is designed for tactical shooters, law enforcement personnel, and hunters operating in varied terrain. In the Australian market, it is highly suited for close-range bush hunting, such as tracking fast-moving game in dense scrub, where the 1x magnification functions similarly to a red dot sight. The ability to quickly dial up to 4.5x magnification makes it equally effective for mid-range pest control and target shooting, offering a versatile, single-optic solution for modern sporting rifles and bolt-action platforms.

SKU	LD38722LP
Model #	LE183315
Brand	Leupold
Shipping Weight	1.0000kg
