What kind of mounting rings do I need for the Leupold Mark 4HD 8-32x56?

This riflescope features a 34mm main tube diameter and requires standard 34mm mounting rings. For Australian shooters looking to mount this to compatible long-range setups, make sure to pair it with high-quality tactical rings that offer adequate clearance for the large 56mm objective lens.

Does this model feature an illuminated reticle or require any batteries for Australian compliance?

No, this specific SKU (LE183970) features a non-illuminated PR2-MIL reticle and contains zero electronic components. Because it is a strictly mechanical optical device, it requires no batteries, power sources, or Australian electrical compliance certifications such as RCM or SAA.

What magnification and reticle type are built into the Mark 4HD LE183970?

This model offers a high-magnification 8-32x zoom range paired with a First Focal Plane (FFP) PR2-MIL reticle, which scales accurately across all magnification settings. Combined with M5C3 ZeroLock turrets offering 0.1 MIL per click adjustments and up to 20 MILs of total elevation travel, it is engineered specifically for extreme long-range precision and tactical shooting.

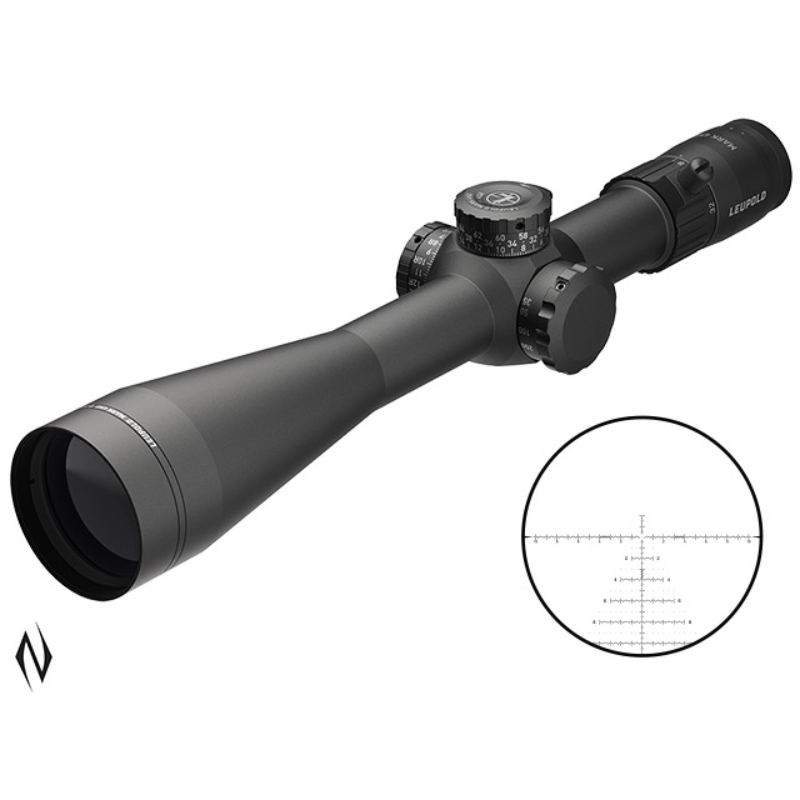

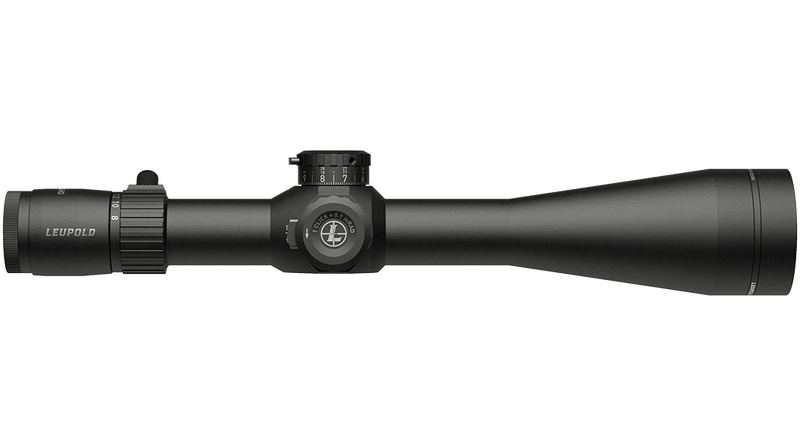

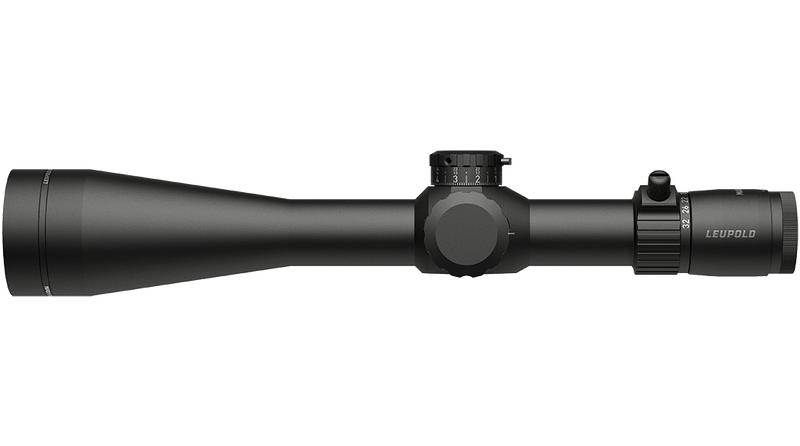

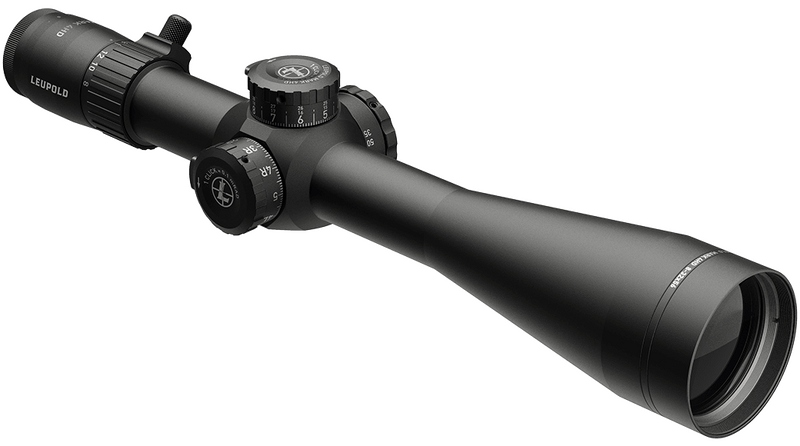

Long Range Riflescope - Leupold LE183970

The Leupold Mark 4HD 8-32x56 M5C3 Side Focus FFP PR2-MIL Riflescope (Model LE183970) delivers high-performance optical clarity and precise mechanical tracking for long-range shooting. Engineered and manufactured in Beaverton, Oregon, USA, this professional-grade optic is built to withstand harsh field conditions. It features a robust 34 mm main tube constructed from high-grade aluminum, offering structural integrity and a wide range of windage and elevation adjustments. This model is entirely mechanical and contains no electronic components, meaning it does not require battery power, charging cables, or Australian regulatory electrical compliance (SAA/RCM), making it exceptionally reliable for remote operations. Key Features of the Leupold Mark 4HD 8-32x56:

First Focal Plane (FFP) PR2-MIL Reticle: The non-illuminated PR2-MIL reticle scales with the magnification from 8x to 32x, allowing for accurate holdovers, range estimation, and windage corrections at any zoom level.

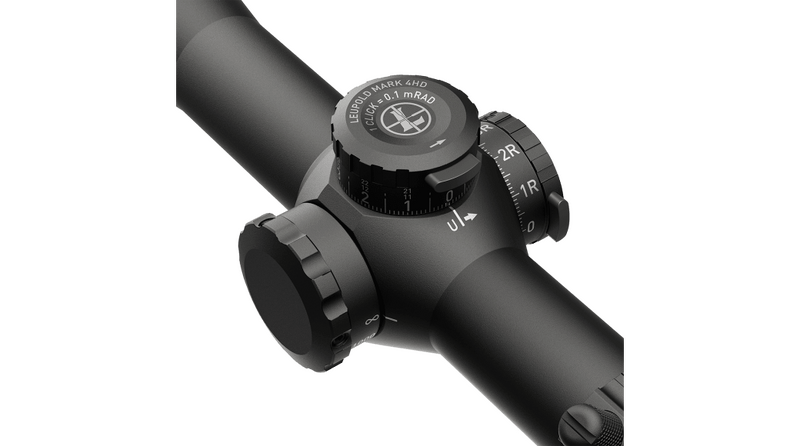

M5C3 ZeroLock Turrets: These low-profile tactile dials provide 0.1 MIL click adjustments with 10 MIL of travel per revolution and up to 20 MIL of total elevation. The physical and visual revolution indicator prevents dialing errors, while the ZeroLock button prevents accidental rotation.
Professional-Grade Optical System: Designed to optimize light transmission, enhance resolution, and reduce glare in challenging lighting conditions, ensuring clear target identification at extreme ranges.
Side Focus Parallax Adjustment: Features an adjustable side focus dial ranging from 25 yards (22.8 meters) to infinity to ensure parallax-free accuracy.
Rugged Performance: The scope is fully waterproof, fogproof, and shockproof, ensuring reliable performance across diverse Australian climates.

Product Specifications:

Magnification Range: 8x to 32x (4:1 zoom ratio)
Objective Lens Diameter: 56 mm
Main Tube Diameter: 34 mm
Focal Plane: First Focal Plane (FFP)
Reticle: PR2-MIL (Non-illuminated)
Elevation Adjustment Range: 20 MIL (10 MIL per revolution)
Windage Adjustment Range: 13 MIL
Click Value: 0.1 MIL
Eye Relief: 3.9 inches to 4.2 inches (99 mm to 107 mm)
Linear Field of View: 13.1 ft to 3.4 ft @ 100 yards (4.37 m to 1.13 m @ 100 m)
Total Length: 15.6 inches (396.2 mm)
Mounting Space: 6.8 inches (172.7 mm)
Weight: 30 ounces (850.5 grams)
Power Source: Fully mechanical (no batteries or charging required)

Who It Is For: The Leupold Mark 4HD 8-32x56 is designed for extreme long-range (ELR) target shooters, Precision Rifle Series (PRS) competitors, and tactical professionals who require absolute tracking repeatability. It is also an excellent option for long-range varmint hunters and predator control operators in rural Australia who need a high-magnification, battery-free optic that performs consistently in rugged outdoor environments.

SKU	LD38933LP
Model #	LE183970
Brand	Leupold
Shipping Weight	1.0000kg
