What mounting rings are required for the Leupold Mark 4HD 8-32x56mm riflescope?

This riflescope features a robust 34mm maintube diameter, meaning it requires standard 34mm mounting rings rather than standard 1-inch or 30mm options. For example, you can pair it with heavy-duty tactical ring mounts designed to fit your specific firearm rail system securely.

Does the Leupold Mark 4HD 8-32x56mm require any electrical certifications or batteries for use in Australia?

No, this is a 100% mechanical and optical riflescope without battery-powered illumination or electronic components. Therefore, standard Australian electrical compliance standards, such as 240V mains power compatibility, SAA approval, and RCM regulatory certification, are completely non-applicable.

What is the benefit of the First Focal Plane PR2-MOA reticle on this model?

The PR2-MOA reticle is situated in the First Focal Plane, meaning the reticle scales proportionally as you adjust the magnification from 8x up to 32x. This allows you to accurately hold over, lead, or estimate range using the 1/4 MOA click M1C3 ZeroLock turrets at any power level during extreme long-range shooting.

Precision Riflescope - Leupold LE183969

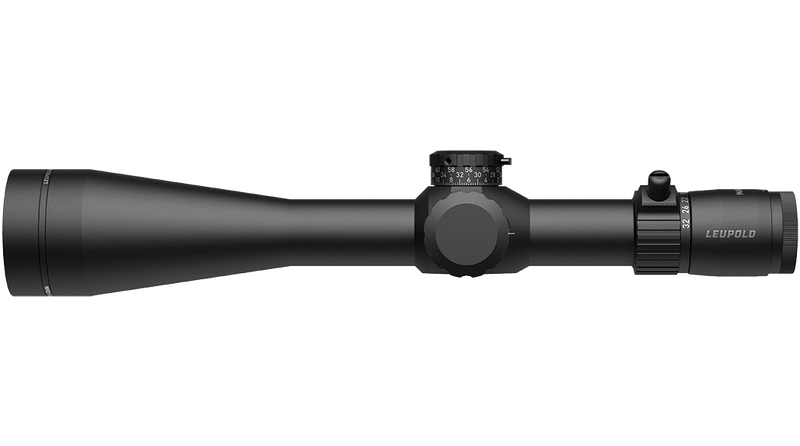

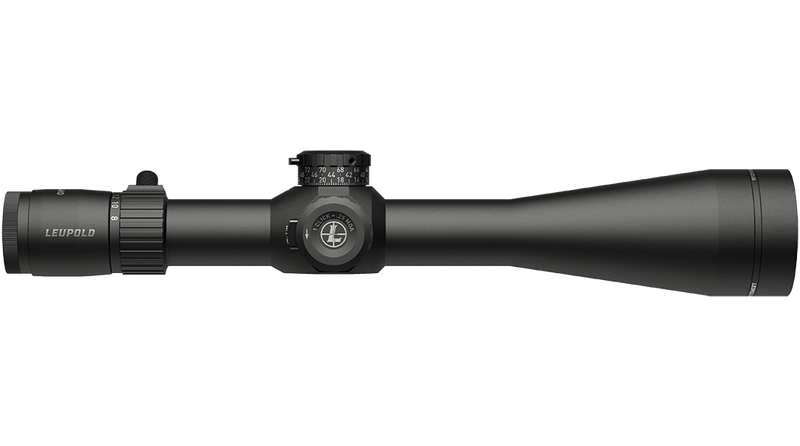

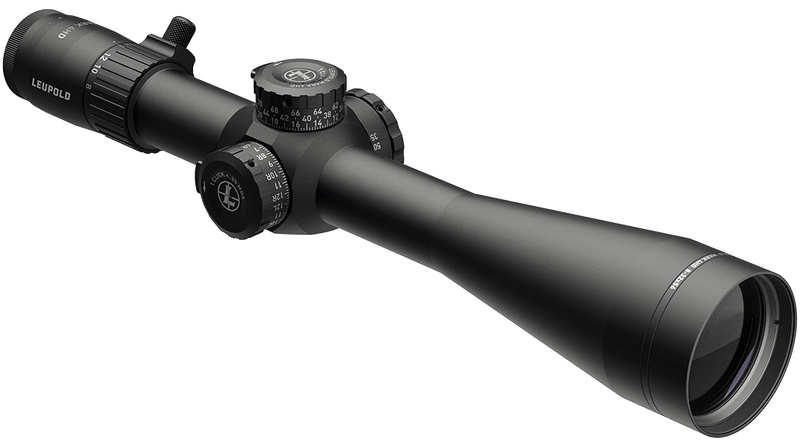

The Leupold Mark 4HD 8-32x56 M1C3 Side Focus FFP PR2-MOA Riflescope (Model LE183969) is a high-magnification precision optic engineered for extreme long-range shooting applications. Featuring a robust 34 mm maintube and a generous 56 mm objective lens, this mechanical riflescope is built to deliver exceptional light transmission and clarity in low-light and high-glare environments. Because it is a purely optical instrument, it requires no battery power or electronic components, making it fully exempt from electronic regulatory compliance standards and highly dependable in remote Australian hunting and shooting environments.

Key Features:

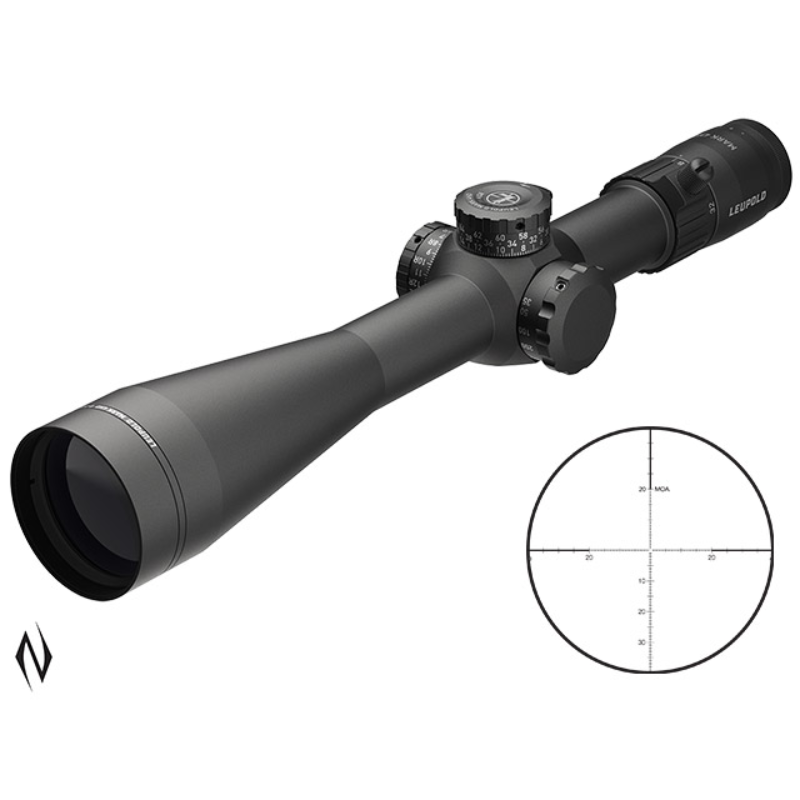

First Focal Plane PR2-MOA Reticle: The reticle scales proportionally with the magnification, allowing shooters to accurately estimate range, hold over, and correct for windage at any power setting from 8x to 32x.

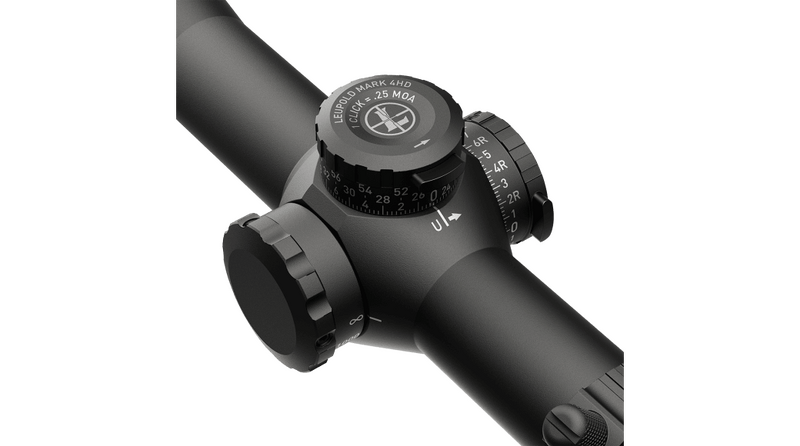

M1C3 ZeroLock Turrets: Provides tactile, precise 1/4 MOA click adjustments with a locking dial mechanism that prevents accidental displacement and allows for a reliable return to zero.
Professional-Grade Optical System: Delivers elite-tier light transmission, exceptional resolution, and glare reduction for consistent performance in challenging lighting conditions.
Side Focus Parallax Adjustment: Enables quick and easy parallax correction from close ranges out to infinity, ensuring maximum accuracy on distant targets.
Rugged Mechanical Design: Constructed from lightweight, aircraft-grade aluminum, the scope features scratch-resistant Guard-Ion lens coatings and is completely waterproof, fogproof, and shockproof.
Integrated Throw Lever: Includes a removable throw lever for fast, smooth magnification adjustments even while wearing gloves.

Technical Specifications:

Model Number: LE183969 (or 183969)
Magnification: 8x to 32x
Objective Lens Diameter: 56 mm
Maintube Diameter: 34 mm
Focal Plane: First Focal Plane (FFP)
Reticle Type: PR2-MOA
Adjustment Increment: 1/4 MOA per click
Maximum Elevation Adjustment: 70 MOA
Maximum Windage Adjustment: 45 MOA
Field of View: 13.10 feet (at 8x) to 3.40 feet (at 32x) at 100 yards
Eye Relief: 4.20 inches (at 8x) to 3.90 inches (at 32x)
Physical Length: 15.60 inches (approximately 396 mm)
Weight: 30.0 ounces (approximately 850 grams)
Mounting Compatibility: Standard 34 mm scope rings

Who This Product Is For:

The Leupold Mark 4HD 8-32x56 is designed specifically for extreme long-range target shooters, tactical operators, and precision rifle competitors who utilize MOA-based calculations for their shots. Its ultra-high 32x magnification and FFP reticle make it an excellent choice for Precision Rifle Series (PRS) competitors in Australia who require reliable holdovers and fast adjustments. Additionally, its high light transmission and durable mechanical construction make it highly suitable for long-range varmint hunters targeting pests over vast, open Australian terrains.

SKU	LD38932LP
Model #	LE183969
Brand	Leupold
Shipping Weight	1.0000kg
