What type of mounting rings are needed for the Leupold Mark 5HD 3.6-18x44 riflescope?

This Leupold Mark 5HD model requires 35mm scope rings for proper mounting. These rings are not included with the riflescope, so you will need to purchase them separately to ensure a secure and stable setup for your rifle.

Is the Leupold Mark 5HD 3.6-18x44 suitable for long-range hunting and tactical use in Australian conditions?

Yes, this scope is highly versatile and ideal for both long-range hunting and tactical applications, including precision gas guns and lightweight bolt-action rifles. Its robust design is fully waterproof, fogproof, and shockproof, ensuring reliable performance in harsh Australian bush or outback conditions. The lightweight build, at only 26.0 oz, also helps minimize overall gear weight.

Does the Leupold Mark 5HD 3.6-18x44 feature an illuminated reticle for low-light shooting?

No, this specific Leupold Mark 5HD 3.6-18x44 (MPN: 173296) features a non-illuminated Tactical Milling Reticle (TMR). The professional-grade optical system, however, is designed to provide elite light transmission and advanced glare reduction to maximize shooting time even in challenging low-light conditions.

How do the M5C3 ZeroLock turrets enhance precision and ease of use for elevation adjustments?

The M5C3 ZeroLock turrets offer a low-profile, tactile dialing system with 0.1 MIL click values and three full revolutions of elevation adjustment, providing 10 MILs per turn. They feature a visual revolution indicator and a secure push-button lock, preventing accidental adjustments and ensuring precise, repeatable corrections in the field.

Does this Leupold Mark 5HD riflescope require batteries or specific Australian electrical certifications?

No, this model is a purely mechanical and optical instrument with a non-illuminated reticle, meaning it does not require any batteries, charging, or external power sources. Therefore, standard Australian electrical compliance factors like 240V compatibility or SAA/RCM certifications are not applicable.

Riflescope - Leupold Mark 5HD 3.6-18x44 LE173296

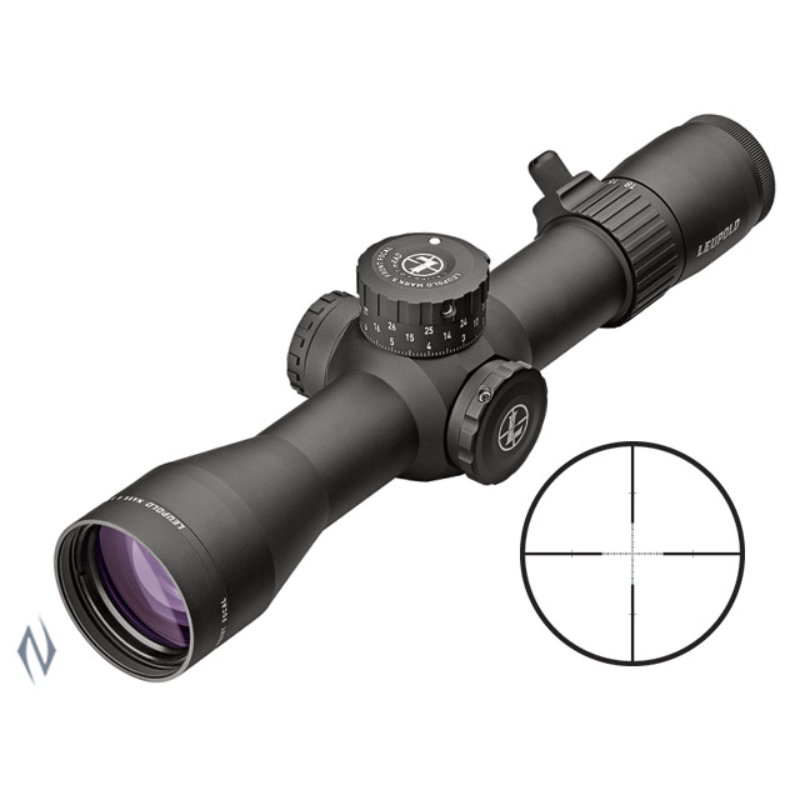

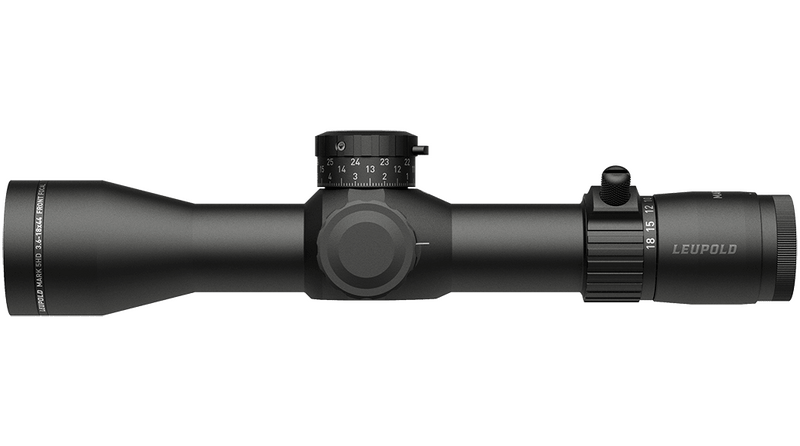

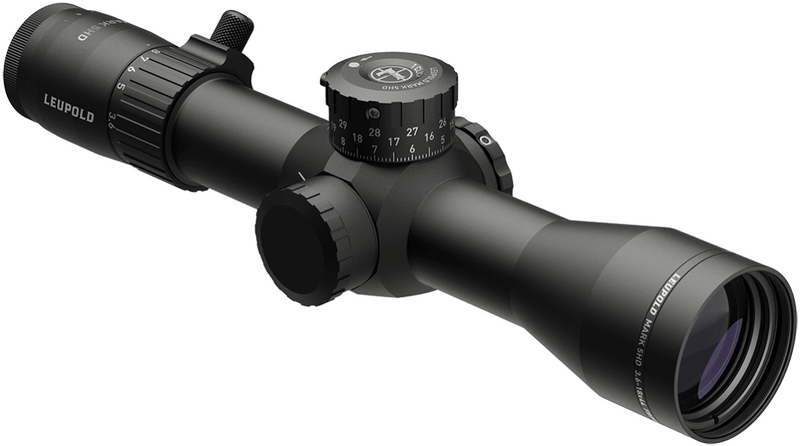

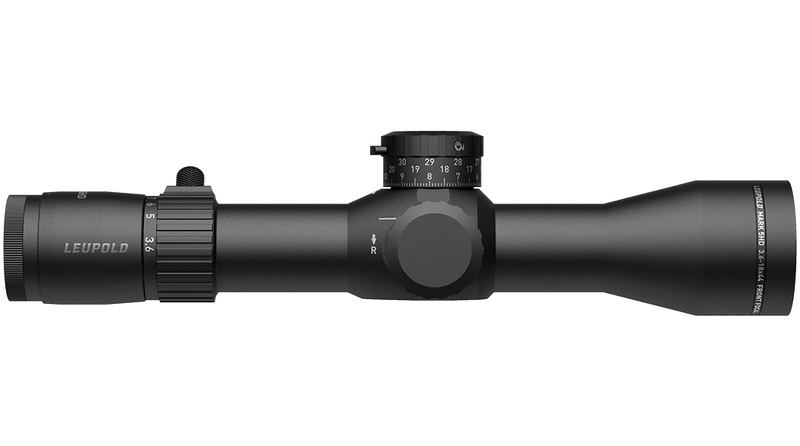

Leupold Mark 5HD 3.6-18x44 M5C3 FFP TMR (MPN: 173296) Overview

The Leupold Mark 5HD 3.6-18x44 M5C3 FFP TMR is a highly compact, lightweight riflescope designed to deliver long-range precision without adding unnecessary bulk to your setup. Weighing approximately 737 grams (26.0 ounces) and measuring 30.7 centimetres (12.1 inches) in length, this optic is up to 560 grams lighter than other tactical riflescopes in its class. Built around a robust 35mm maintube, it features a 5:1 zoom ratio with a magnification range from 3.6x to 18x and a 44mm objective lens, providing clear image resolution and precise tracking for tactical, competitive, and sporting applications.

Key Features:

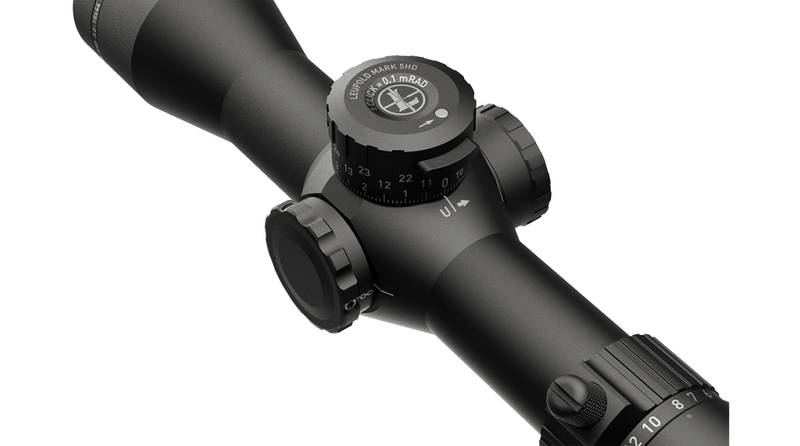

M5C3 ZeroLock Turrets: Features a low-profile, tactile dialing system providing up to three full revolutions of elevation adjustment (10 MILs per turn) with a visual revolution indicator and a secure push-button lock to prevent accidental movement.
First Focal Plane (FFP) TMR Reticle: The non-illuminated Tactical Milling Reticle (TMR) scales with magnification, allowing for precise range estimation, windage holdovers, and elevation corrections at any zoom level.
Professional-Grade Optical System: Engineered to maximize light transmission, deliver edge-to-edge clarity, and reduce glare, ensuring optimal performance in challenging low-light conditions.
Ergonomic Adjustments: Includes a fast-focus eyepiece and a reversible, high-speed throw lever for rapid magnification changes in fast-paced shooting scenarios.
Rugged Durability: Fully waterproof, fogproof, and shockproof, designed to withstand heavy recoil and harsh environmental conditions.

Technical Specifications:

Magnification Range: 3.6x to 18x
Objective Lens Diameter: 44 mm
Maintube Diameter: 35 mm (requires 35mm scope rings)
Focal Plane: First Focal Plane (FFP)
Reticle: Tactical Milling Reticle (TMR), Non-Illuminated
Weight: 737 grams (26.0 oz)
Total Length: 30.7 cm (12.1 inches)
Eye Relief: 8.9 cm (3.5 inches) at 3.6x to 9.7 cm (3.8 inches) at 18x
Field of View (at 91.4 metres / 100 yards): 28.3 feet at 3.6x to 5.8 feet at 18x
Elevation Adjustment Range: 29.1 MIL (0.1 MIL per click)
Windage Adjustment Range: 23.3 MIL (0.1 MIL per click)
Parallax Adjustment: Side focus, adjustable from 45.7 metres (50 yards) to infinity

Who It Is For:

The Leupold Mark 5HD 3.6-18x44 is designed for shooters who require high-end optical performance in a compact, lightweight package. It is highly suited for precision gas guns, lightweight tactical bolt-action rifles, and competitors participating in Australian Precision Rifle Series (PRS) or NRL field matches. Hunters traversing challenging alpine or outback terrain will also benefit from its lightweight profile, making it an excellent choice for long-range pest control and game hunting where minimizing gear weight is critical. Because this model features a non-illuminated reticle, it functions as a purely mechanical and optical instrument, requiring no batteries or external power sources, making it a reliable and low-maintenance option for remote field use.

SKU	LD38643LP
Model #	LE173296
Brand	Leupold
Shipping Weight	1.0000kg
