What type of mounting rings are required for the Leupold Mark 5HD 7-35x56 riflescope?

This Leupold Mark 5HD model features a 35mm main tube diameter, which is less common than other sizes. You will need to purchase dedicated 35mm scope rings or mounts to properly secure it to your rifle, as standard 1-inch, 30mm, or 34mm rings are not compatible.

How does the Second Focal Plane (SFP) TMOA Plus reticle benefit long-range precision shooting with this scope?

The SFP TMOA Plus reticle maintains a constant size across the entire 7x to 35x magnification range, which is ideal for target shooters who prefer a fine, unobstructed view of the bullseye at maximum magnification. Its MOA-based hash marks in 1 MOA increments and hollow center aiming point allow for ultra-precise shot placement at extreme distances.

Is the Leupold Mark 5HD 7-35x56 suitable for extreme long-range shooting and competition in Australian conditions?

Yes, this scope is specifically engineered for elite optical performance in extreme long-range precision rifle shooting, F-Class, and benchrest target competitions. Its M1C3 turrets offer precise 1/4 MOA click adjustments and 100 MOA of elevation travel, while its robust, waterproof, and fogproof construction ensures durability in harsh Australian field conditions.

Does the Leupold Mark 5HD 7-35x56 require any specific electrical compatibility or certifications for use in Australia?

No, this riflescope is a purely mechanical and optical device. It does not feature any electronic components, internal batteries, or illumination. Therefore, 240V electrical compatibility, SAA/RCM certifications, and Australian power plugs are not applicable to this model.

How durable is the Leupold Mark 5HD 7-35x56 for use in demanding Australian outdoor environments?

The Leupold Mark 5HD is built to withstand harsh recoil and demanding field conditions, making it highly durable for Australian outdoor environments. It is 100% waterproof and fogproof, ensuring reliable performance even in challenging weather or bush/outback conditions.

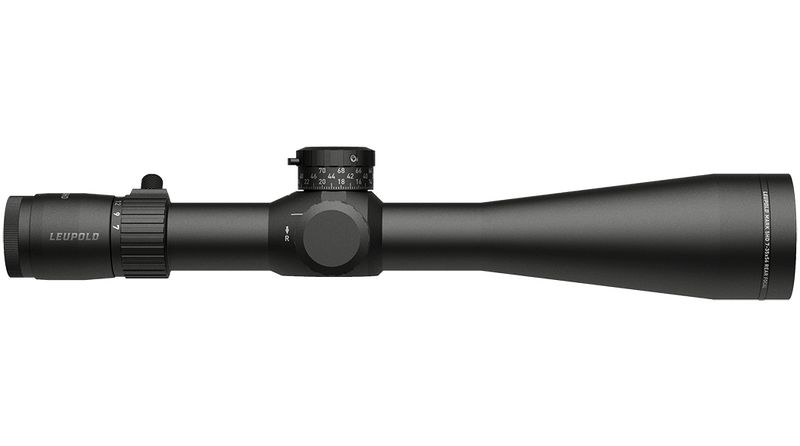

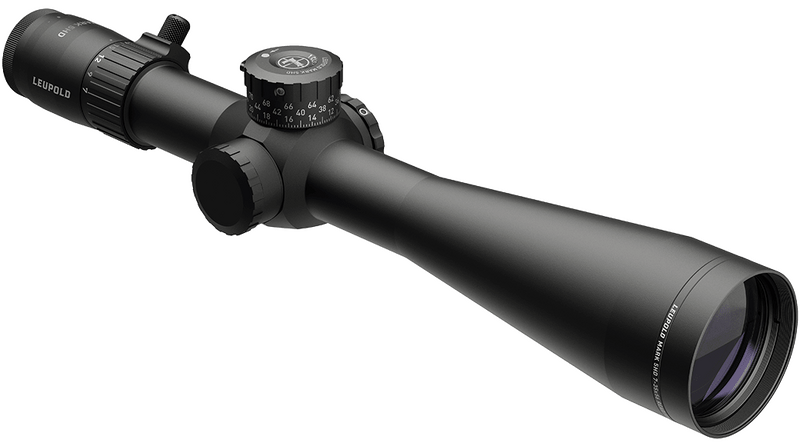

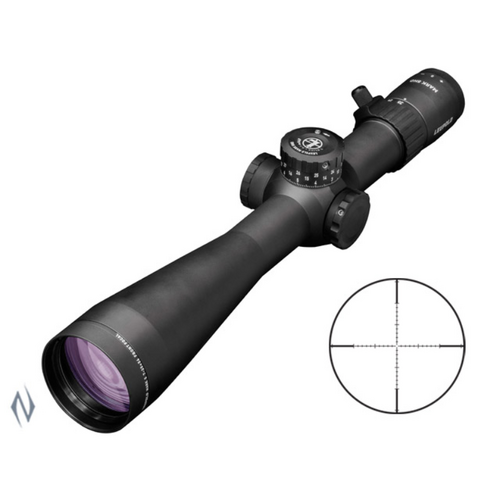

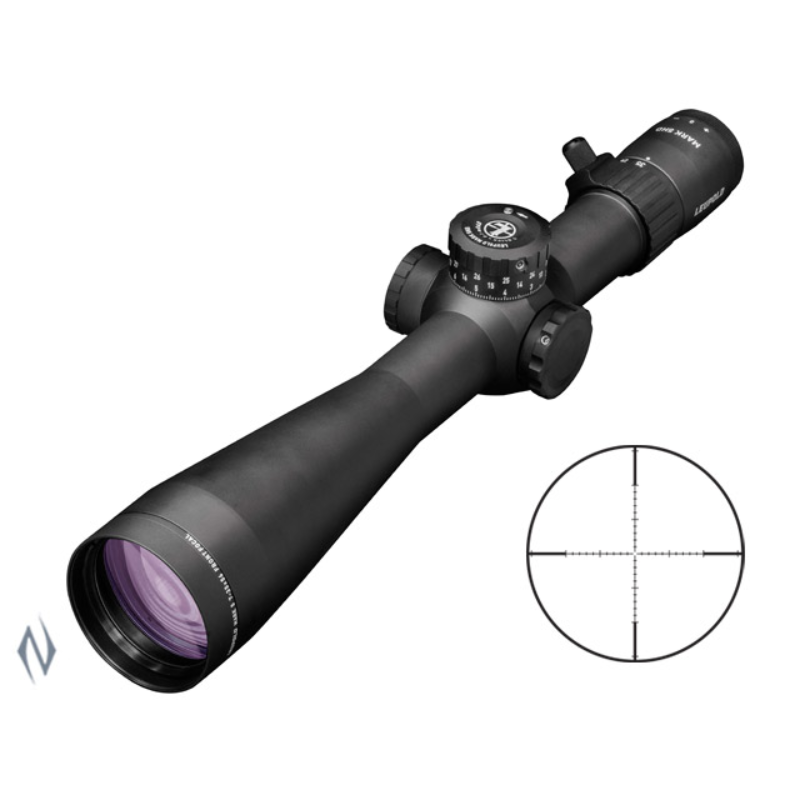

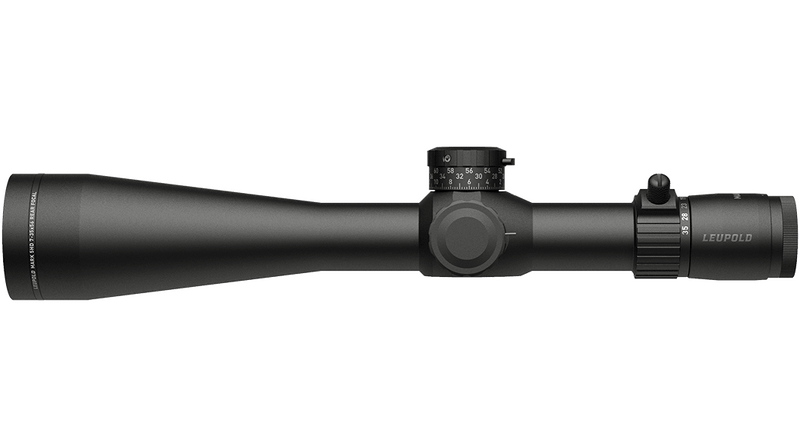

Precision Riflescope - Leupold Mark 5HD LE174549

The Leupold Mark 5HD 7-35x56 M1C3 SFP TMOA Plus (SKU: 174549) is a high-performance riflescope engineered for extreme long-range precision. Featuring a powerful 7x to 35x magnification range and a large 56mm objective lens, this optic delivers exceptional light transmission and clarity in challenging environmental conditions. Unlike many tactical scopes, this model utilizes a Second Focal Plane (SFP) configuration, ensuring the reticle remains a constant, fine size across the entire zoom range to prevent obstruction of small targets at maximum magnification. Built to withstand heavy recoil and harsh field conditions, it is a reliable choice for precision shooters demanding mechanical repeatability and optical clarity.

Key Features:

Second Focal Plane (SFP) TMOA Plus Reticle: The non-illuminated TMOA Plus reticle features 1 MOA hash marks and a hollow center aiming point, maintaining its fine size at 35x magnification for highly precise shot placement.
M1C3 ZeroLock Turrets: Provides tactile 1/4 MOA click adjustments with three full revolutions of elevation travel (100 MOA total) and a push-button ZeroLock to prevent accidental dial movement.
35mm Main Tube: The robust 35mm main tube offers increased strength and allows for a wide range of windage (50 MOA) and elevation adjustments. Please note that standard 1-inch, 30mm, or 34mm rings are not compatible; dedicated 35mm scope rings or mounts are required.
Professional-Grade Optics: Built with Leupold's advanced optical system to maximize light transmission, minimize glare in bright sunlight, and maintain edge-to-edge image clarity.
High-Speed Throw Lever: Includes a removable throw lever for fast, smooth magnification transitions in the field or on the firing line.
Environmental Protection: Fully waterproof, fogproof, and shockproof, weighing 33 ounces (approximately 935 grams) with an overall length of 15.7 inches (399 mm).

Technical Specifications:

Magnification Range: 7x to 35x
Objective Lens Diameter: 56 mm
Main Tube Diameter: 35 mm
Focal Plane: Second Focal Plane (SFP)
Reticle: TMOA Plus (Non-Illuminated)
Elevation Adjustment Range: 100 MOA (1/4 MOA per click)
Windage Adjustment Range: 50 MOA
Weight: 33 ounces (935 grams)
Length: 15.7 inches (399 mm)
Minimum Parallax-Free Distance: 50 yards (approximately 45.7 meters)

Who It Is For:

The Leupold Mark 5HD 7-35x56 SFP is specifically designed for extreme long-range target shooters, F-Class competitors, and benchrest enthusiasts in Australia who require high magnification without reticle growth. It is also highly suited for long-range varmint hunters and precision rifle competitors who prefer MOA-based adjustments and a clean, unobstructed view of distant targets. Because this is a purely mechanical and optical instrument, it does not require batteries, Australian 240V power plugs, or electrical certifications, making it a reliable, low-maintenance optic for remote Australian shooting ranges and hunting properties.

SKU	LD38652LP
Model #	LE174549
Brand	Leupold
Shipping Weight	1.0000kg
