What mounting hardware do I need for the Leupold Mark 5HD 7-35x56mm?

This scope features a specialized 35mm main tube diameter, which means it requires compatible 35mm mounting rings rather than standard 1-inch or 30mm rings. You will need to source high-quality 35mm rings that match your rifle's specific mounting rail system, such as a Picatinny rail.

Does the reticle on the Leupold Mark 5HD MPN 180223 require batteries?

No, this specific model features a non-illuminated PR2-MIL reticle operating entirely on mechanical optics. Because it does not use electronic illumination, it requires no batteries, power cords, or charging systems, and does not require Australian electrical safety certifications like SAA or RCM.

What disciplines is the Leupold Mark 5HD 7-35x56mm best suited for?

This riflescope is designed for precision long-range applications, including Precision Rifle Series (PRS) shooting, Extreme Long Range (ELR) disciplines, and open-country or outback hunting. Weighing only 30.0 ounces, it provides a high 7x to 35x magnification range while remaining significantly lighter than comparable high-magnification tactical optics.

PR2-MIL Riflescope - Leupold LE180223

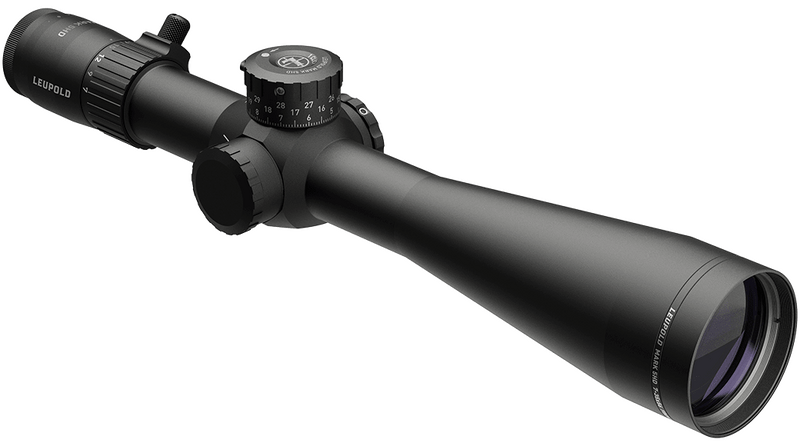

The Leupold Mark 5HD 7-35x56mm M5C3 FFP PR2-MIL Riflescope (MPN: 180223) is a high-performance optical instrument engineered for extreme long-range precision. Built to meet the demands of competitive shooters and tactical professionals, this riflescope is up to 20 ounces (567 grams) lighter than other optics in its magnification class. Featuring a 5:1 zoom ratio with a magnification range from 7x to 35x and a large 56mm objective lens, it delivers excellent light transmission, resolution, and edge-to-edge clarity even in challenging low-light conditions.

Key Features:

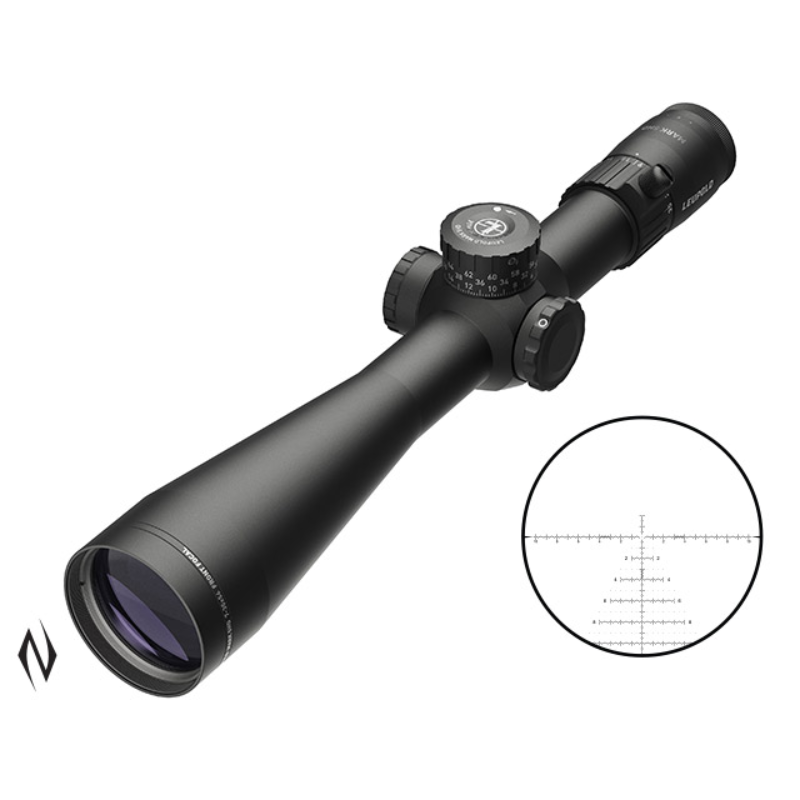

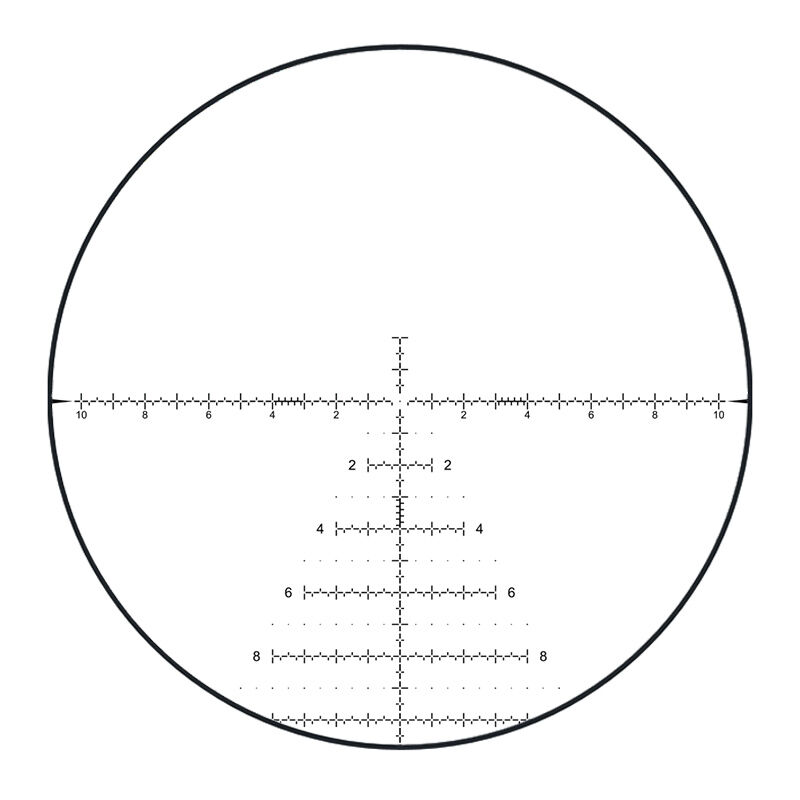

PR2-MIL FFP Reticle: Located in the First Focal Plane (FFP), the reticle subtensions remain accurate across the entire 7x to 35x magnification range. Developed for speed and precision, the PR2-MIL reticle features an open design with clean holding points for fast elevation and windage holdovers.

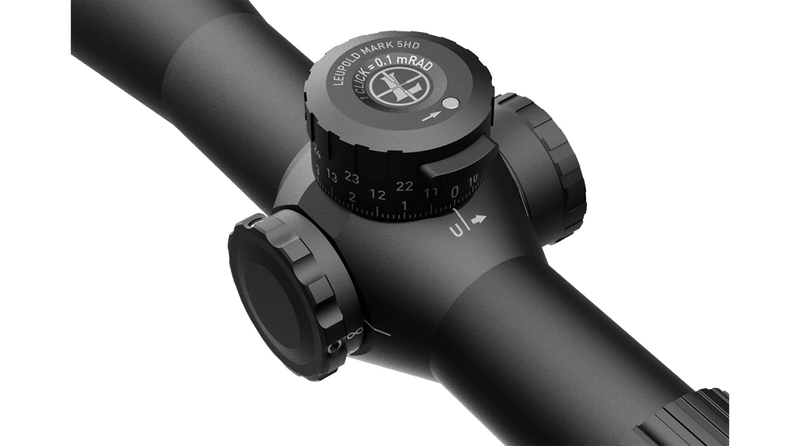

M5C3 ZeroLock Turrets: Provides tactile, audible 0.1 mil-radian (MRAD) clicks. The 3-turn dial offers up to 29 MILs of elevation adjustment with a push-button revolution indicator to prevent dialing errors. Total windage adjustment is 17 MILs.
Professional-Grade Optics: Built with Leupold's proprietary lens coatings and DiamondCoat 2 external lens protection to resist scratches and environmental wear while maximizing light transmission and minimizing glare.
Rugged Aluminum Main Tube: Constructed from durable 6061-T6 aircraft-grade aluminum, the scope is 100% waterproof, shockproof, and fogproof for reliable performance in harsh Australian climates.
Integrated Throw Lever: Includes a removable, reversible throw lever for quick, positive magnification adjustments on the fly.
Unpowered Reliability: This model features a completely non-illuminated reticle. It functions entirely on mechanical optics, requiring no batteries (such as CR2032 cells) and no electrical charging cords. Consequently, it requires no Australian Electrical Safety (SAA) or Regulatory Compliance Mark (RCM) certifications.

Technical Specifications:

Model Number (MPN): 180223 (LE180223)
Magnification Range: 7x to 35x
Objective Lens Diameter: 56mm
Main Tube Diameter: 35mm (requires compatible 35mm scope mounting rings)
Weight: 30.0 ounces (approximately 850 grams)
Length: 15.7 inches (approximately 39.9 cm)
Eye Relief: 3.6 inches to 3.8 inches (91mm to 97mm)
Field of View (at 100 yards): 14.7 feet at 7x, tapering to 3.0 feet at 35x
Parallax Adjustment: Side focus dial adjustable from 50 yards (approximately 45.7 metres) to infinity

Who It Is For:

The Leupold Mark 5HD 7-35x56 is designed specifically for Precision Rifle Series (PRS) competitors, Extreme Long Range (ELR) target shooters, and tactical professionals who require precise dialing and absolute optical clarity at extended distances. It is also an exceptional choice for long-range varmint and open-country hunters in Australia. Shooters should note that the specialized 35mm main tube requires dedicated 35mm mounting rings to secure the scope to Picatinny or Weaver scope bases.

SKU	LD38685LP
Model #	LE180223
Brand	Leupold
Shipping Weight	1.0000kg
