What makes the Leupold Mark 5HD 5-25x56mm lighter than other scopes in its class?

At only 30 ounces, the Mark 5HD is engineered to be up to 20 ounces lighter than comparable long-range scopes on the market. This significantly reduces the overall weight of your rifle system, making it much easier to carry across demanding terrain during long-range hunts or tactical competitions.

How does the M5C3 ZeroLock elevation turret operate on this model?

The M5C3 tactile turrets provide 0.1 mil-radian click adjustments and offer three full revolutions of elevation, giving you up to 35 MILs of total adjustment. It features a built-in revolution indicator and a ZeroLock mechanism to prevent accidental movement in the field while allowing quick, precise dial-ups.

Does this Leupold riflescope require any Australian electrical certifications or SAA/RCM approval?

No, Australian mains plug, 240V compatibility, and SAA/RCM electrical approvals do not apply to this product. The illumination system is powered entirely by a self-contained CR2032 3V lithium coin-cell battery rather than connecting to mains power.

How does the Motion Sensor Technology (MST) conserve battery life during extended hunts in Australia?

Leupold's MST automatically deactivates the illuminated TMR reticle after 5 minutes of inactivity to preserve your battery. The moment the sensor detects any movement, it instantly reactivates the illumination so your reticle is ready the second a target appears.

Long Range Riflescope - Leupold LE171776

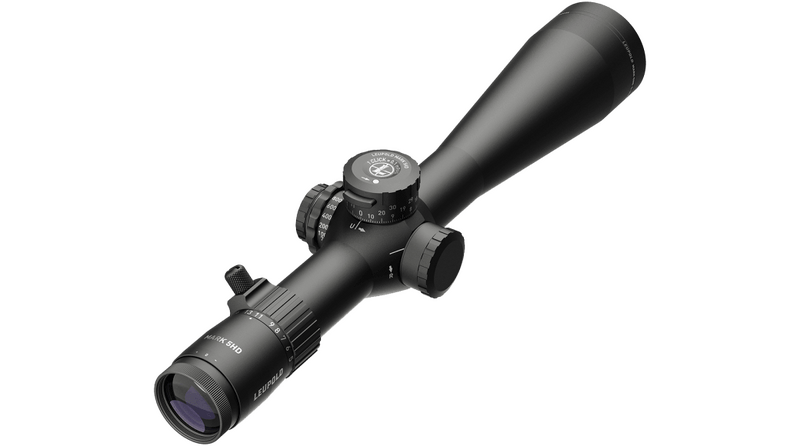

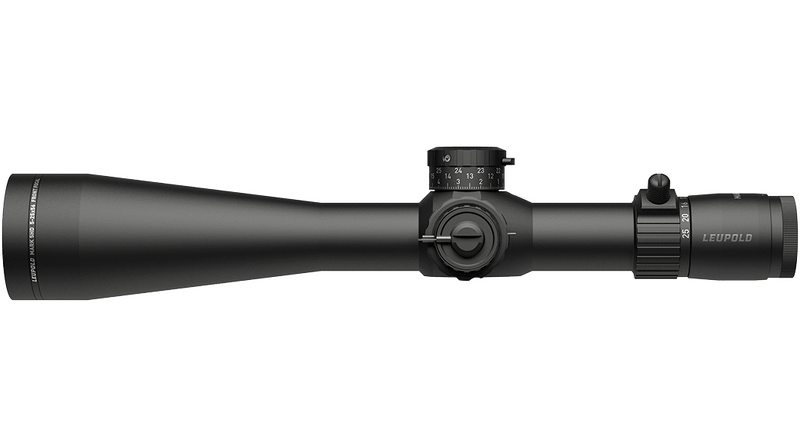

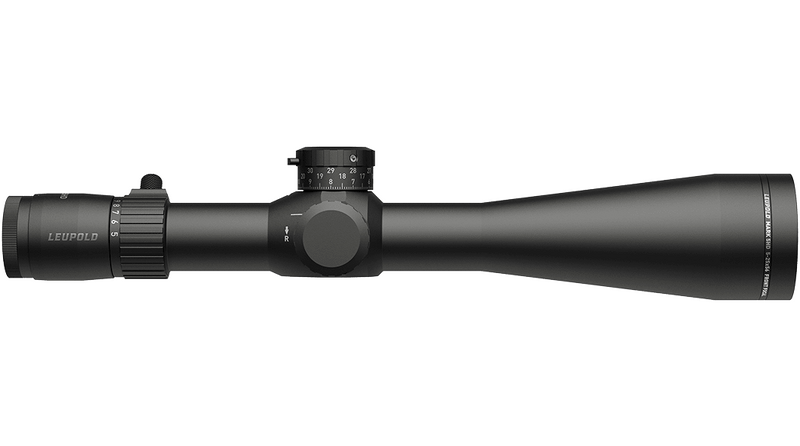

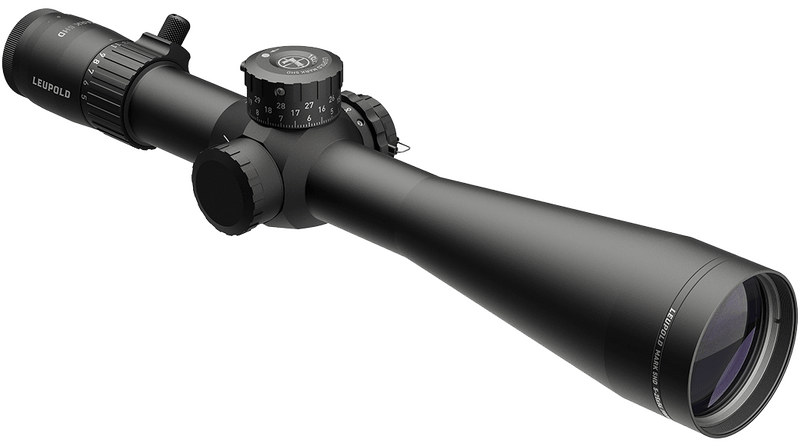

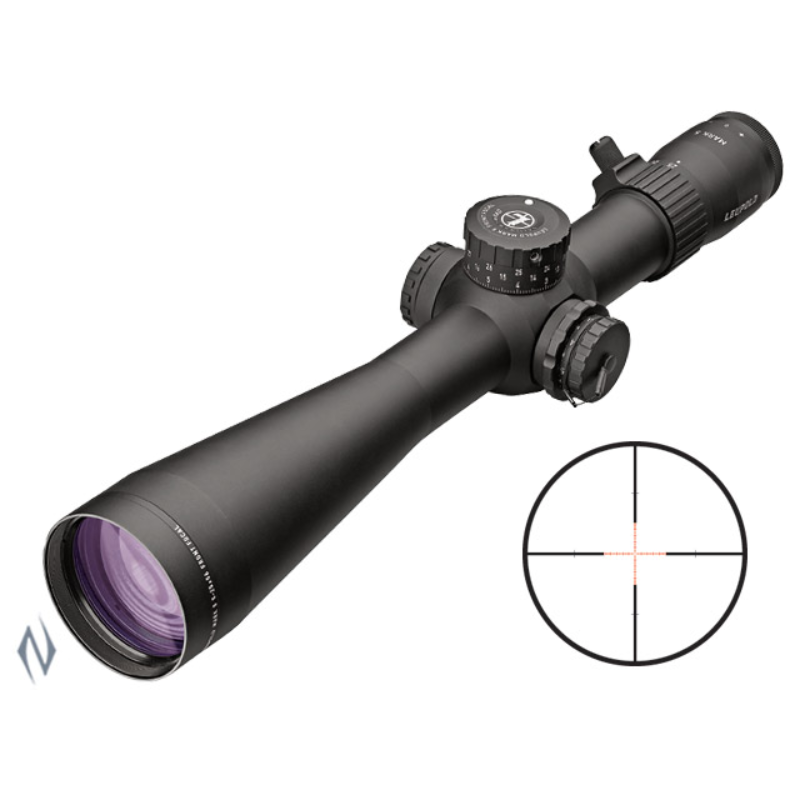

The Leupold Mark 5HD 5-25x56mm M5C3 FFP Illuminated TMR (Model: LE171776 / MPN: 171776) is a high-performance, long-range riflescope engineered for tactical operators, precision match shooters, and long-range hunters. Built around a robust 35mm maintube, this optic delivers a versatile 5x to 25x magnification range while maintaining an exceptionally lightweight footprint. Weighing only 30 ounces (approximately 850 grams), it is up to 20 ounces lighter than many comparable scopes in its class, reducing the overall weight of your precision rifle system without sacrificing durability or structural integrity. Key Features:

Professional-Grade Optics: Delivers exceptional light transmission, edge-to-edge image clarity, and advanced glare reduction to maintain clear target identification in harsh or direct sunlight.
First Focal Plane (FFP) TMR Reticle: The Tactical Milling Reticle scales with the magnification, ensuring subtensions remain highly accurate for range estimation and holdovers throughout the entire 5x to 25x range.

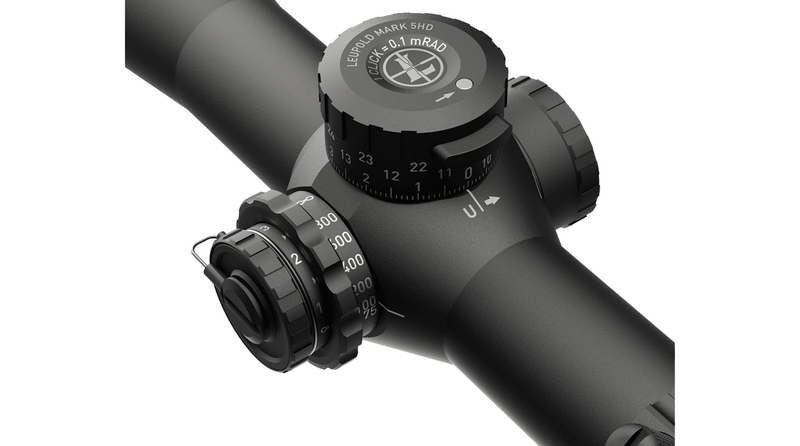

M5C3 ZeroLock Turrets: Low-profile tactile turrets provide 0.1 MRAD adjustments with up to three full revolutions of elevation, featuring a visual and tactile revolution indicator to prevent dialing errors.
Motion Sensor Technology (MST™): To preserve the charge of the CR2032 3V lithium coin-cell battery, the illuminated reticle automatically deactivates after 5 minutes of inactivity and immediately reactivates when motion is detected.
Night Vision Compatibility: Features micro-adjustable illumination settings with 7 brightness levels, allowing for seamless integration with night vision systems.
Australian Climate Resilience: Completely waterproof, fogproof, and shockproof, this riflescope is engineered to perform reliably across diverse Australian environments, from dusty outback temperatures to freezing alpine zones.

Technical Specifications:

Magnification Range: 5x to 25x
Objective Lens Diameter: 56 mm
Maintube Diameter: 35 mm
Weight: 30 ounces (approx. 850 grams)
Length: 15.7 inches (approx. 39.8 cm)
Eye Relief: 3.6 to 3.8 inches (91 mm to 97 mm)
Field of View (at 100 yards): 20.4 feet at 5x to 4.2 feet at 25x
Adjustment Increment: 0.1 MRAD per click
Total Elevation Adjustment: 35 MILs
Total Windage Adjustment: 17 MILs
Battery Requirement: Single CR2032 3V lithium coin-cell (does not require external 240V mains power or SAA/RCM electrical approvals)

Who It's For:

The Leupold Mark 5HD 5-25x56mm is designed specifically for precision rifle competitors (such as PRS and ELR participants), tactical law enforcement personnel, and serious long-range hunters who require absolute tracking reliability and fast target acquisition. Its lightweight profile makes it an excellent choice for shooters who need to carry their rifle systems over long distances across rugged Australian terrain, while the extensive elevation adjustment range provides the necessary travel for extreme long-range target engagement.

SKU	LD38640LP
Model #	LE171776
Brand	Leupold
Shipping Weight	1.0000kg
