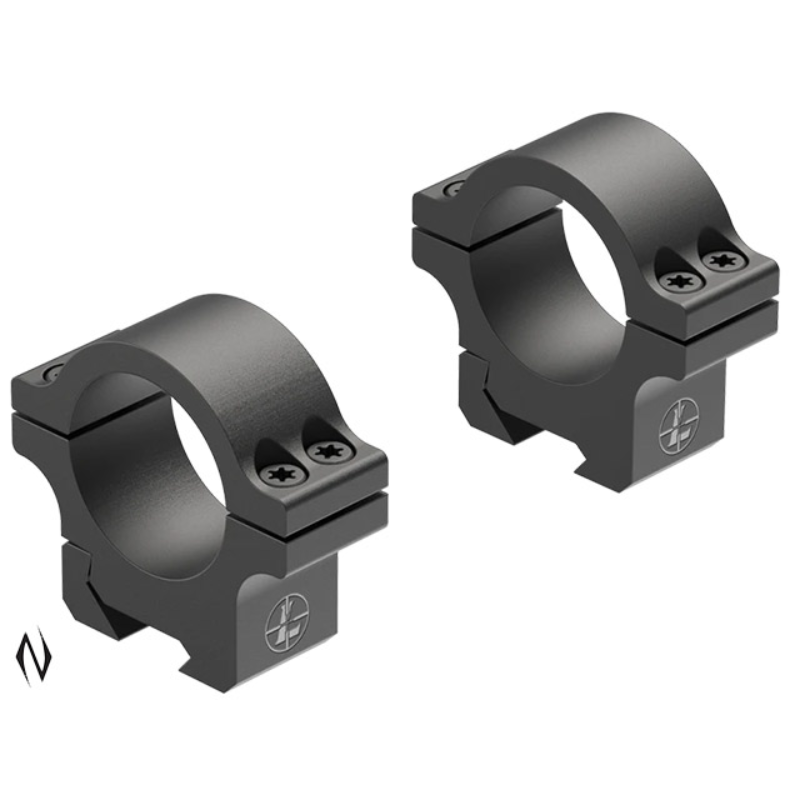

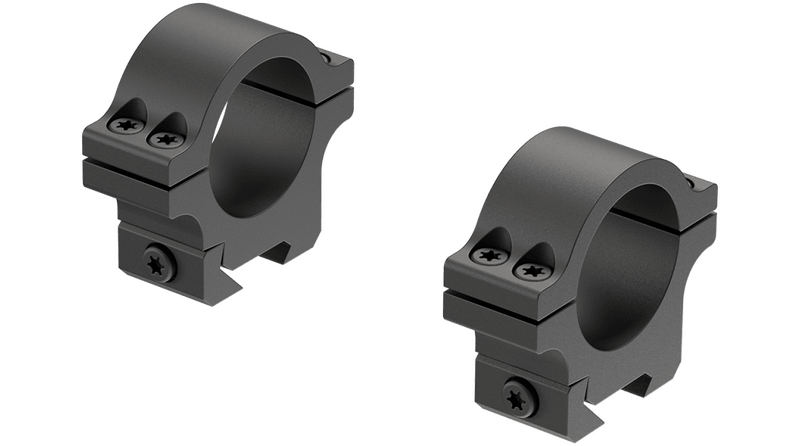

The Leupold Open Range Ringmount Rimfire 11mm 1" Medium (Model: LE184794) is a rugged, precision-engineered mounting solution designed specifically for rimfire rifles. Machined from lightweight and high-strength aircraft-grade 6061-T6 aluminum, these scope rings feature a non-reflective matte black finish that integrates seamlessly with your rifle's receiver. Engineered to mount directly onto integrated 11mm or 3/8-inch dovetail rails, they eliminate the need for separate bases, reducing weight and complexity while keeping your optic securely aligned under field conditions.

Key Features:

• Direct Dovetail Mounting: Designed for a no-tap installation, attaching directly to standard 11mm and 3/8-inch dovetail rails without the need for additional adaptors.
• Robust Alignment: Built with milled-in recoil lugs and low-profile keeper screws to establish a rigid connection that resists shifting during active field use.
• Premium Construction: Crafted from American-machined 6061-T6 aluminum to withstand harsh environments without adding unnecessary weight to your rimfire setup.
• Precise Torque Specs: Engineered to handle up to 28 in-lbs of torque on both the keeper clamp and the ring top screws, ensuring secure, slip-free optic retention.

Technical Specifications:

• Model Number: LE184794
• Tube Diameter: 1 inch (25.4mm)
• Ring Height Style: Medium
• Physical Height: 0.78 inches (19.8mm)
• Weight: 2.6 ounces (73.7 grams)
• Material: Aircraft-grade 6061-T6 aluminum
• Finish: Matte Black
• Base Compatibility: 11mm and 3/8-inch dovetail rails
• Keeper Clamp Torque: 28 in-lbs
• Ring Top Screw Torque: 28 in-lbs

Who It Is For:

These mounting rings are ideal for Australian rimfire shooters, rural property owners, and pest controllers who require reliable, failure-free performance in demanding field environments. They are a perfect fit for popular rimfire platforms from manufacturers such as CZ, Anschütz, and Tikka chambered in .22 LR, .22 WMR, or .17 HMR. The medium height profile of 0.78 inches is well-suited for mounting riflescopes with objective lens diameters up to 40mm, allowing shooters to maintain a natural cheek weld and optimal eye-to-scope alignment. Whether managing vermin on agricultural land or practicing target shooting, these rings provide the rugged durability needed for the Australian climate.
