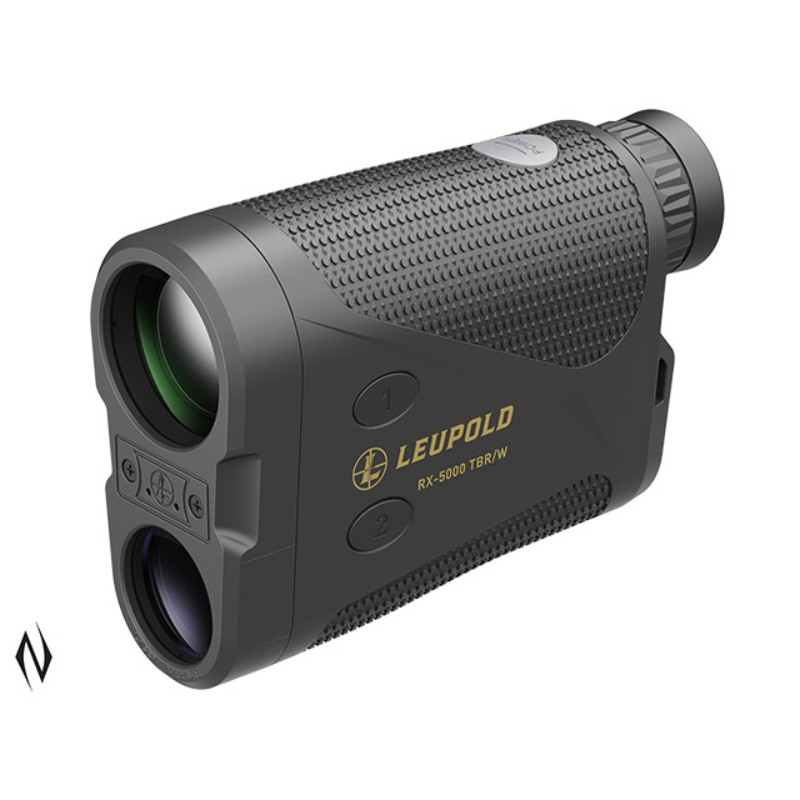

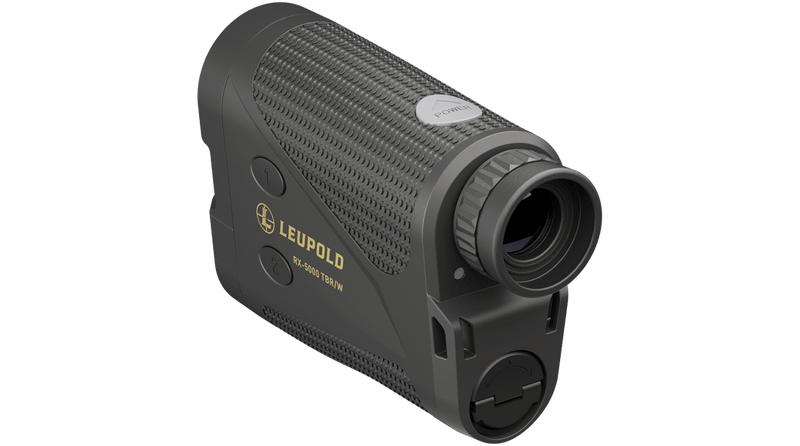

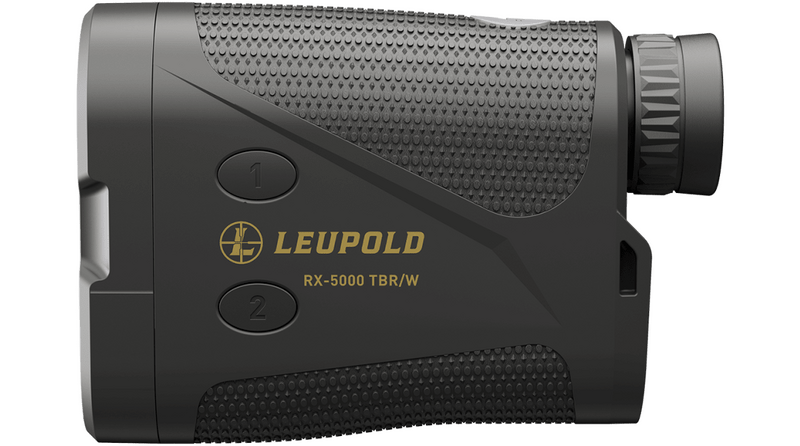

The Leupold RX-5000 TBR/W Rangefinder (Model LE184681) is a precision long-range optical tool engineered to merge high-performance physical laser measurements with advanced digital mapping capabilities. Utilizing a redesigned 905nm performance laser engine and a bright red OLED display with adjustable brightness settings, this handheld rangefinder delivers reliable target distance data under diverse field conditions. Integrated Bluetooth connectivity allows the unit to sync seamlessly with the free Leupold Control App on both iOS and Android platforms, enabling users to drop precise GPS waypoint pins directly onto digital mapping software such as Google Maps, Apple Maps, and onX Hunt.

Key Features

• Location Pinning & GPS Integration: Combines an internal compass, inclinometer, and Bluetooth link to calculate target coordinates and instantly drop a waypoint pin on paired mobile mapping apps for navigating complex terrain or tracking game.
• True Ballistic Range/Wind (TBR/W): Features 25 selectable ballistic groups to calculate equivalent horizontal shoot-to ranges, mil, or MOA holdovers.
• Hornady 4DOF Integration: Connects with the Hornady 4DOF ballistic calculator through the companion app to provide real-time solutions based on specific bullet drag profiles and environmental factors.
• Precision Cut Archery (PCA): Delivers angle-compensated distances up to 175 yards specifically calibrated for bowhunters, factoring in arrow weight, peep height, and velocity.
• Long-Range Ranging Engine: Offers dual modes (Standard and Long Range) to accurately range deer up to 2,000 yards in standard mode and reflective targets up to 5,000 yards.

Technical Specifications

• Dimensions: 4.4 inches x 3.1 inches x 1.6 inches (approximately 11.2 cm x 7.9 cm x 4.1 cm)
• Weight: 9.7 oz (approximately 275 grams) with battery installed
• Optical Power: 8x magnification
• Power Source: Single 3V lithium CR123 battery (delivers over 4,000 actuations with Bluetooth disabled)
• Laser Engine: 905nm
• Minimum Range: 6 yards
• Accuracy: Within 2 yards up to 1,000 yards
• Ranging Capacity (Reflective Targets): Up to 5,000 yards (4,572 metres)
• Ranging Capacity (Deer): Up to 2,000 yards (Standard Mode) / 5,000 yards (Long Range Mode)
• Wireless Technology: Bluetooth low-energy module

Who It's For

The Leupold RX-5000 TBR/W is designed for long-range tactical shooters, open-country hunters, and bowhunters who require exact angle compensation and immediate GPS localization in rugged environments. For Australian operators, the device utilizes a standard CR123 lithium battery, meaning it operates independently of 240V mains power and does not require local SAA/RCM electrical safety certifications or specific Australian plugs. Its low-energy Bluetooth transmitter provides a reliable digital link for smartphone pairing while meeting international wireless parameters.
