What tube ring size do I need to mount the Leupold VX-5HD Gen 2 4-20x52?

This scope features a robust 34mm maintube to provide extra internal windage and elevation travel for extreme distance shooting. Therefore, you will need to pair it with 34mm mounting rings rather than standard 30mm options.

Does this illuminated reticle scope require any special Australian electrical certifications or adapters?

No, it is a strictly passive optical system powered by a single CR2032 lithium coin cell battery for the FireDot illumination. Because it does not connect to mains power, it does not require SAA or RCM electrical safety certifications, 240V adapters, or an Australian wall plug.

What is the adjustment tracking system on the elevation dial of this Gen 2 model?

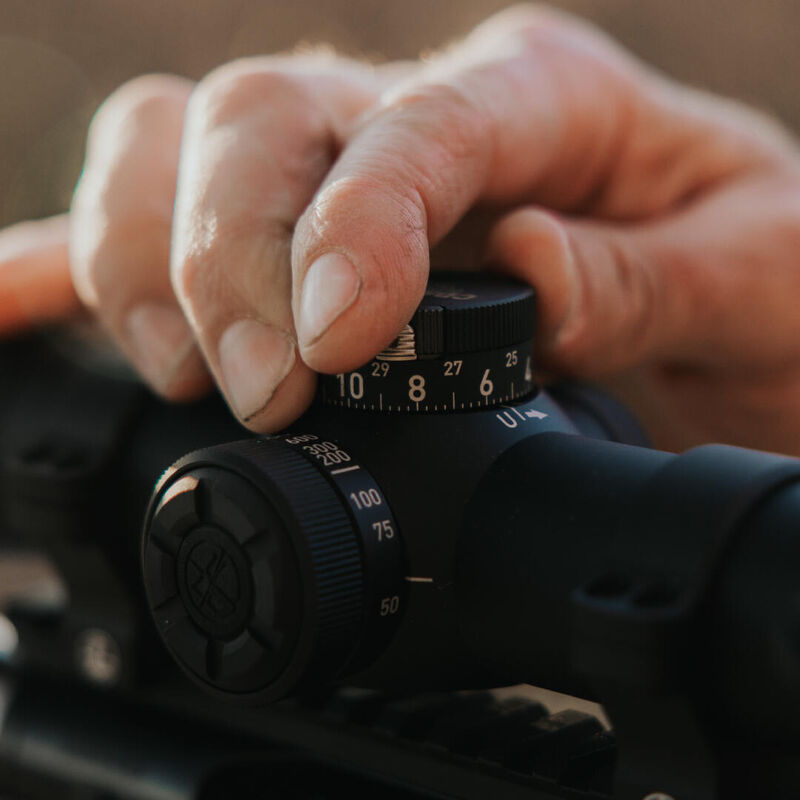

The scope is equipped with the CDS-SZL2 SpeedSet Elevation Dial, which offers MOA adjustments with a 0.25 MOA click value and a total elevation travel of 85 MOA. It also features a tool-free zeroing configuration and a locked, highly visible zero position for fast field adjustments across open terrain.

What distance can I adjust the side focus parallax down to for close shots?

The side focus parallax on the VX-5HD Gen 2 4-20x52 is adjustable from 50 yards (approximately 45.7 metres) out to infinity. This allows you to maintain a clear, parallax-free image whether you are tracking game in dense bush or targeting across wide open valleys.

Hunting Rifle Scope - Leupold LE183858

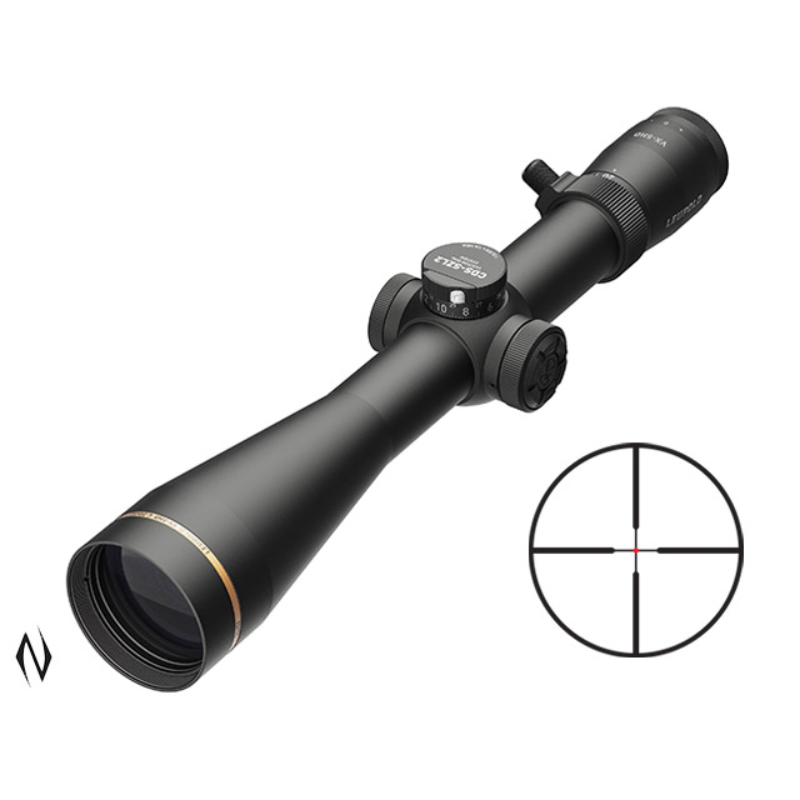

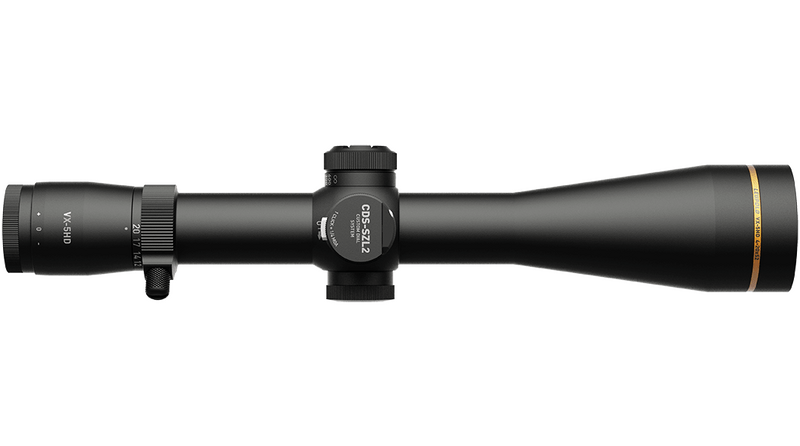

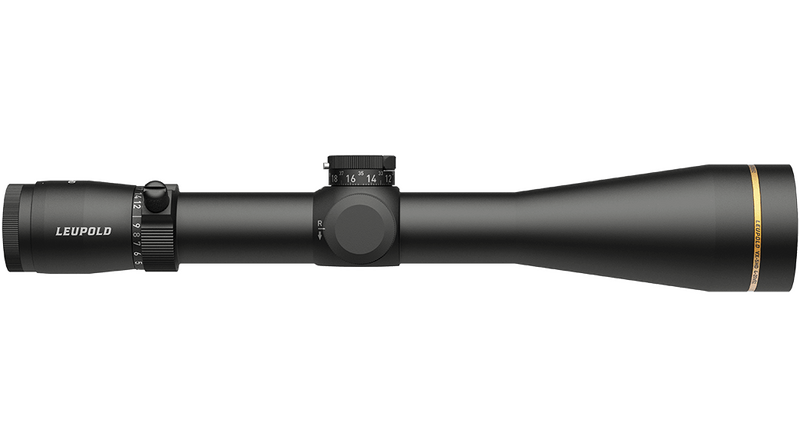

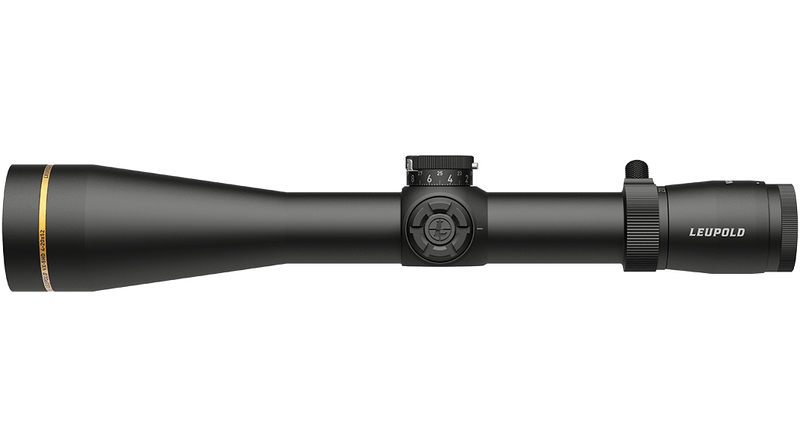

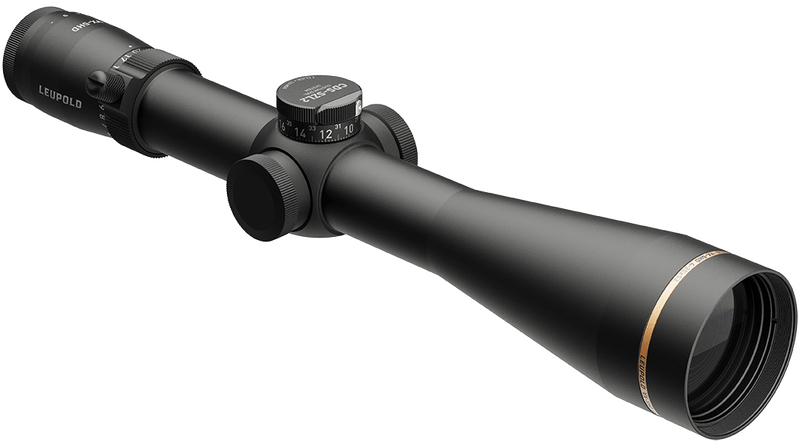

The Leupold VX-5HD Gen 2 4-20x52 CDS-SZL2 Side Focus Illum. FireDot Duplex (Model: LE183858) is a premium rifle scope engineered to deliver high-performance optical clarity and long-range precision. Built around a robust 34mm maintube, this optic provides the extra internal elevation travel required for dialing in shots over extreme distances. It features Leupold's Professional-Grade Optical System, which ensures maximum light transmission, sharp edge-to-edge resolution, and advanced glare reduction. Optimized for remote environments, this scope utilizes a passive, battery-powered illumination system running on a single CR2032 lithium coin cell, making it exempt from Australian 240V, SAA, or RCM electrical safety certifications.

Key Features:

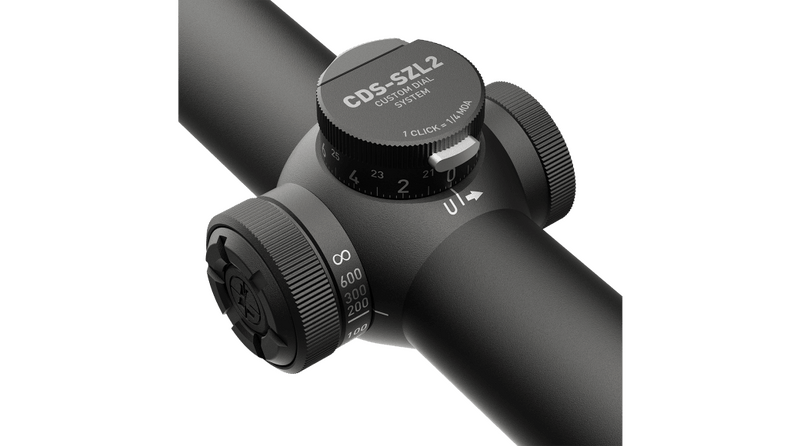

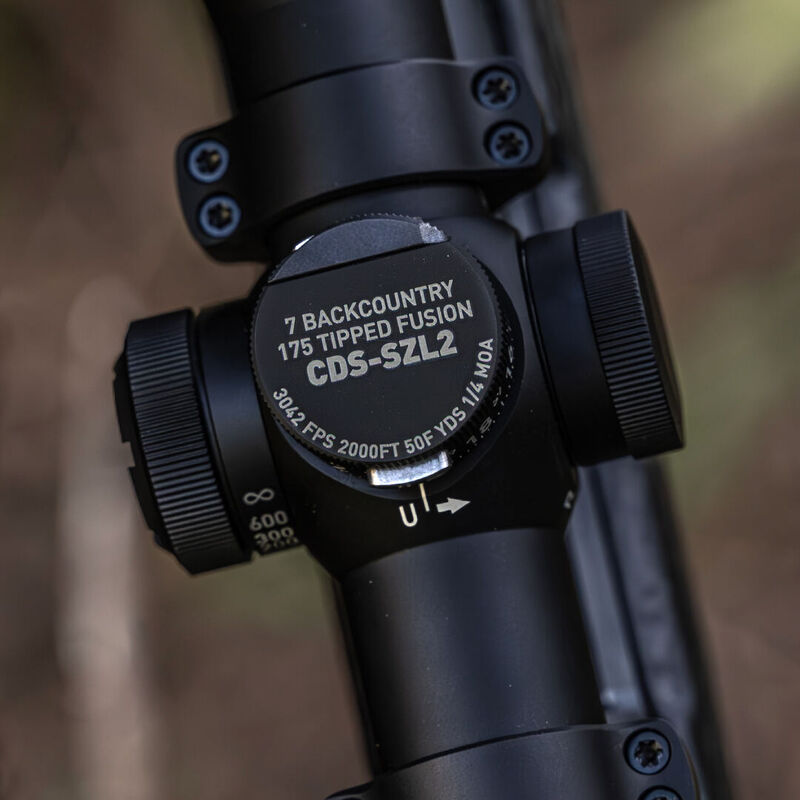

CDS-SZL2 SpeedSet Elevation Dial: Features a tool-free zeroing configuration that allows shooters to quickly reset their zero in the field, complete with a highly visible, locked zero position for absolute dialing confidence.
34mm Maintube Compatibility: Designed to fit standard 34mm mounting rings, the oversized tube increases overall structural strength and provides 85 MOA of total elevation travel.
Illuminated FireDot Duplex Reticle: A Second Focal Plane (SFP) reticle combining a classic duplex design with an adjustable red center-dot, facilitating rapid target acquisition during twilight hours.
Side Focus Parallax: Side-mounted parallax adjustment dial ranges from 50 yards (45.7 metres) to infinity to ensure focus at variable distances.
Professional-Grade Optics: Delivers superior image quality, helping hunters identify targets clearly in challenging low-light conditions.

Product Specifications:

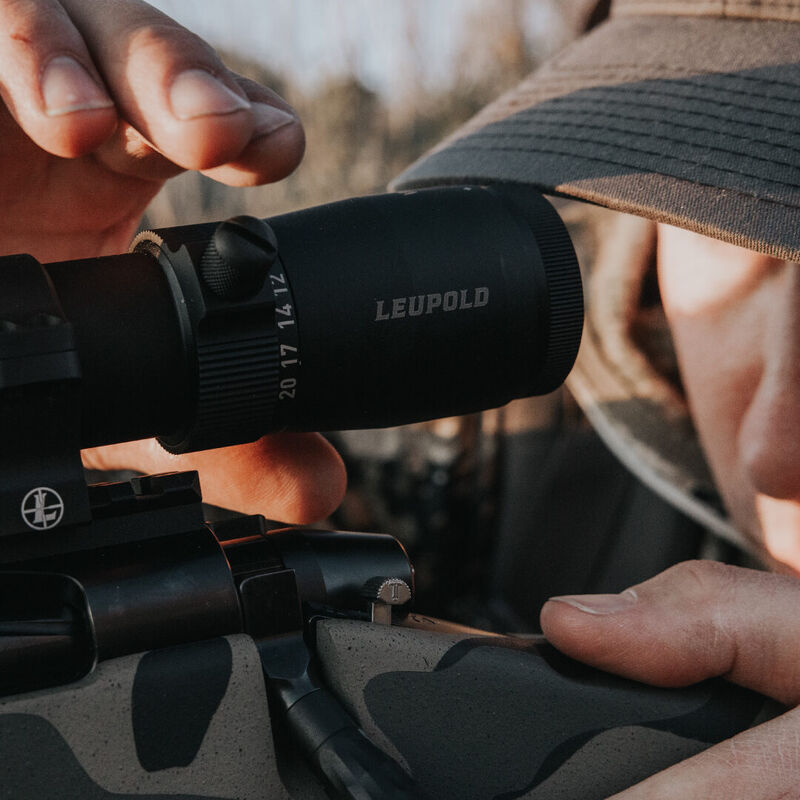

Magnification Range: 4x to 20x variable zoom
Objective Lens Diameter: 52mm
Maintube Diameter: 34mm
Reticle Type: Second Focal Plane (SFP) Illuminated FireDot Duplex (Red)
Adjustment Value: 0.25 MOA click value
Total Elevation Travel: 85 MOA
Side Focus Range: 50 yards (45.7 metres) to infinity
Linear Field of View: 27.7 ft at 100 yards (at 4x) to 5.8 ft at 100 yards (at 20x)
Eye Relief: 3.8 inches (96.5 mm)
Weight: 24 ounces (680 grams)
Length: 14.5 inches (36.8 cm)
Battery Type: One CR2032 lithium metal coin cell battery

Who It Is For:

The Leupold VX-5HD Gen 2 4-20x52 is specifically built for serious Australian long-range hunters, precision target shooters, and tactical outdoor enthusiasts. Its versatile magnification range makes it highly adaptable, allowing shooters to transition seamlessly from tracking game in dense eucalyptus forests to making calculated, high-precision shots across wide-open agricultural plains and valleys. This scope is ideal for those who require repeatable physical tracking, robust build quality, and clear, glare-resistant optics in varying daylight conditions.

SKU	LD38928LP
Model #	LE183858
Brand	Leupold
Shipping Weight	1.0000kg
