What kind of battery does the Leupold VX-6HD Gen2 4-24x52 use, and does it require 240V or Australian electrical certification?

This scope does not connect to mains power and is completely exempt from 240V requirements and SAA or RCM electrical certifications. Its illumination feature is powered solely by a single low-voltage CR2032 button cell battery. Any included batteries comply strictly with Australian mandatory safety standards for button and coin cells.

How does the CDS-SZL2 elevation turret and Motion Sensor Technology perform in harsh Australian outback hunting conditions?

The CDS-SZL2 Speedset ZeroLock 2 turret prevents accidental adjustments in the field while allowing rapid dial-ins for extreme distance shots. To conserve power during long waits in the bush, the Motion Sensor Technology automatically enters a sleep mode after 5 minutes of inactivity and instantly reactivates the FireDot reticle the moment movement is detected.

What are the physical dimensions and mounting requirements for the 34mm maintube of this VX-6HD model?

The Leupold VX-6HD Gen2 183841 features a robust 34mm maintube, an overall length of 14.5 inches, and a total weight of 26.2 ounces. Because of the 34mm tube diameter and the substantial 52mm objective lens, you will need to ensure your firearm uses appropriately sized high-clearance 34mm rings rather than standard 30mm mounts.

Long Range Riflescope - Leupold LE183841

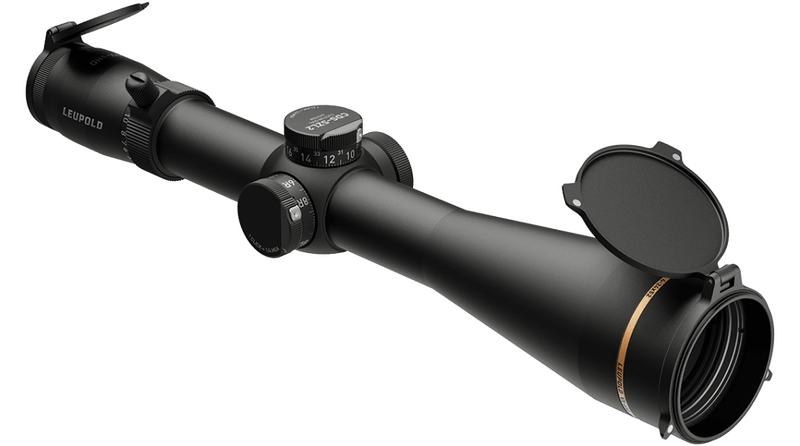

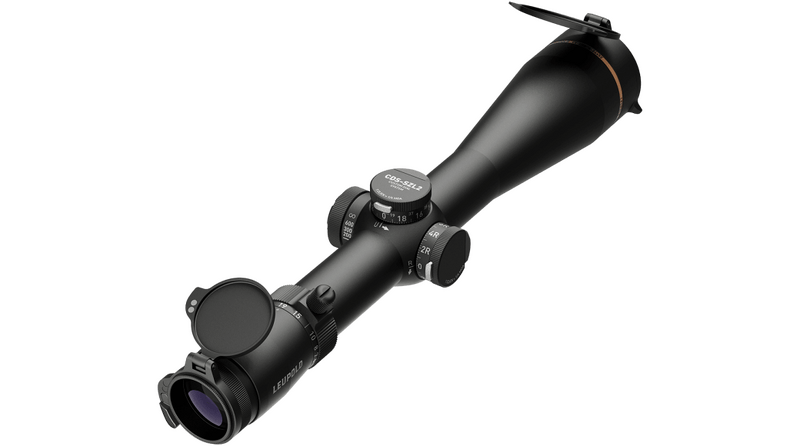

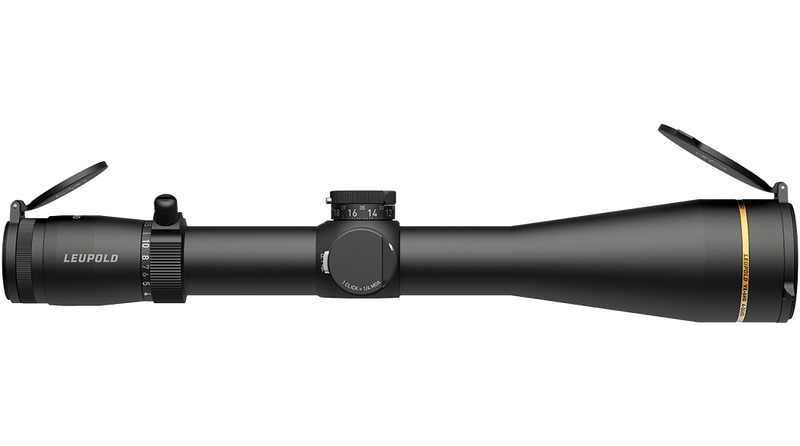

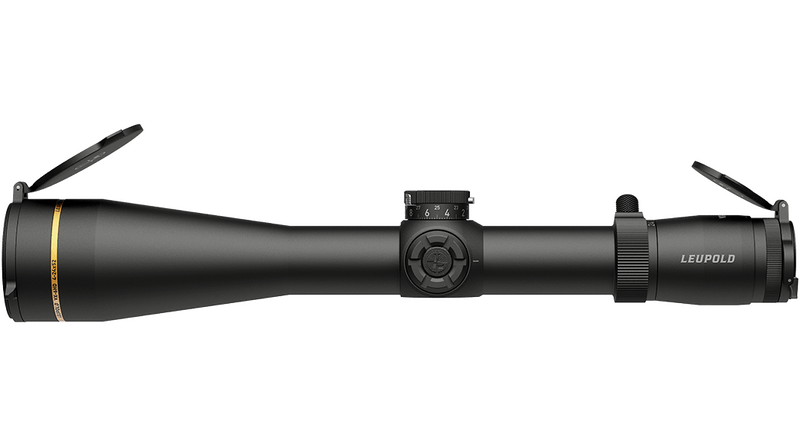

The Leupold VX-6HD Gen2 4-24x52 CDS-SZL2 SF Illum. FireDot Duplex (Manufacturer Part Number: 183841, also known as LE183841) is a high-performance riflescope built for shooters demanding precision over long distances. Featuring a versatile 6:1 zoom ratio with 4x to 24x magnification and a large 52mm objective lens, this optic provides clean light transmission and image clarity. Designed with a robust 34mm maintube, it offers ample elevation and windage adjustments for long-range targets, making it highly reliable in challenging field conditions.

Key Features

Professional-Grade Optical System: Delivers high light transmission and minimises glare, ensuring a clear image in harsh, direct sunlight or low-light situations.

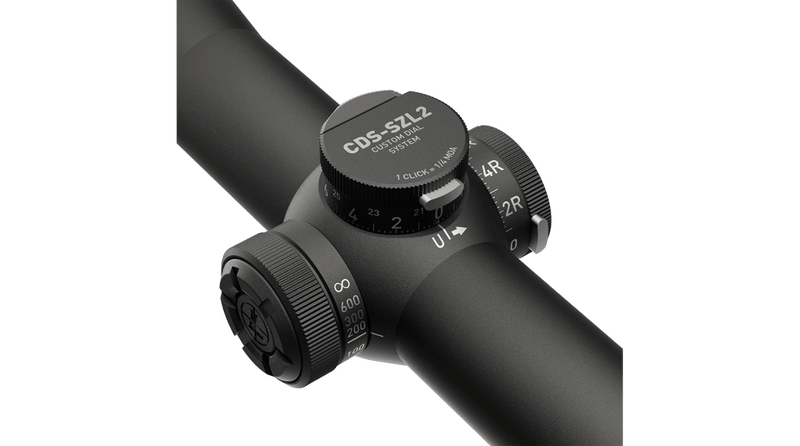

CDS-SZL2 Elevation Dial: The Custom Dial System with Speedset ZeroLock 2 simplifies long-range elevation adjustments while preventing accidental movement in the field.
Motion Sensor Technology (MST): Automatically deactivates the illuminated FireDot Duplex reticle after 5 minutes of inactivity to save battery life, instantly turning back on when motion is detected.
Electronic Reticle Level: An internal, in-scope level flashes when the scope is canted, helping shooters maintain precise alignment for distant shots.
Guard-Ion Lens Coating: A durable, molecular-level coating that repels rain, dirt, oil, and fingerprints to keep the glass clear.
Reversible Throw Lever: Attaches directly to the magnification ring for fast, high-leverage power adjustments.

Technical Specifications

Magnification Range: 4x to 24x
Objective Lens Diameter: 52mm
Maintube Diameter: 34mm

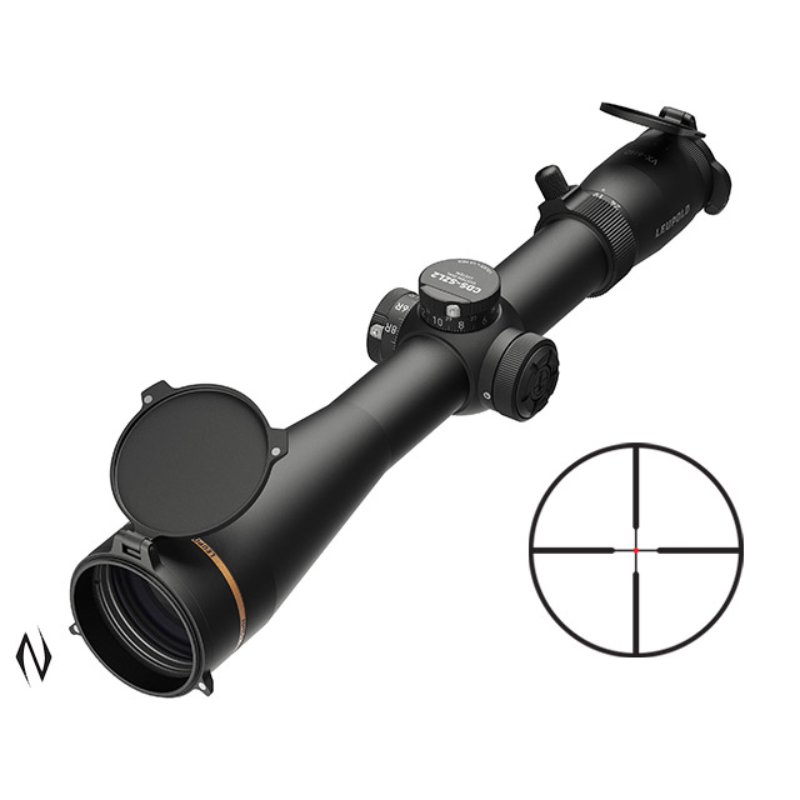

Reticle: Illuminated FireDot Duplex (Second Focal Plane)
Weight: 26.2 ounces (approximately 742.7 grams)
Length: 14.5 inches (approximately 36.8 cm)
Eye Relief: 3.7 inches to 3.8 inches (94mm to 97mm)
Field of View (at 100 yards): 28.1 feet at 4x to 4.8 feet at 24x
Adjustment Increment: 1/4 MOA per click
Total Adjustment Travel: 100 MOA elevation and windage
Power Source: Low-voltage CR2032 button cell battery (this optical device operates independently of mains power, meaning 240V compatibility and SAA/RCM electrical approvals do not apply. Any included button batteries comply with Australian child-safety packaging standards).

Who It Is For

The Leupold VX-6HD Gen2 4-24x52 is engineered for Australian long-range hunters, precision target shooters, and vermin control specialists who require reliable target identification at extended ranges. Its high-magnification range is ideal for open-country hunting, while the illuminated FireDot Duplex reticle assists in low-light environments typical of dawn and dusk shooting. The durable build and water-shedding Guard-Ion coating make it well-suited for the rugged and dusty conditions found throughout regional Australia.

SKU	LD38924LP
Model #	LE183841
Brand	Leupold
Shipping Weight	1.0000kg
