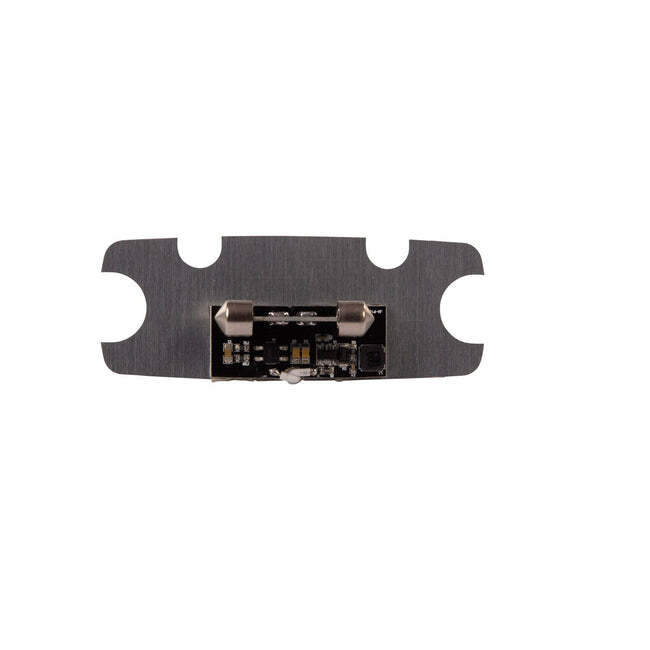

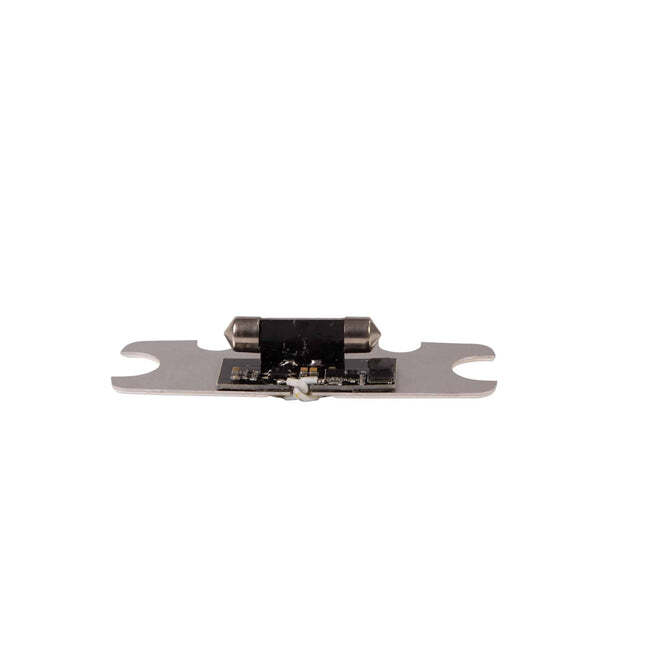

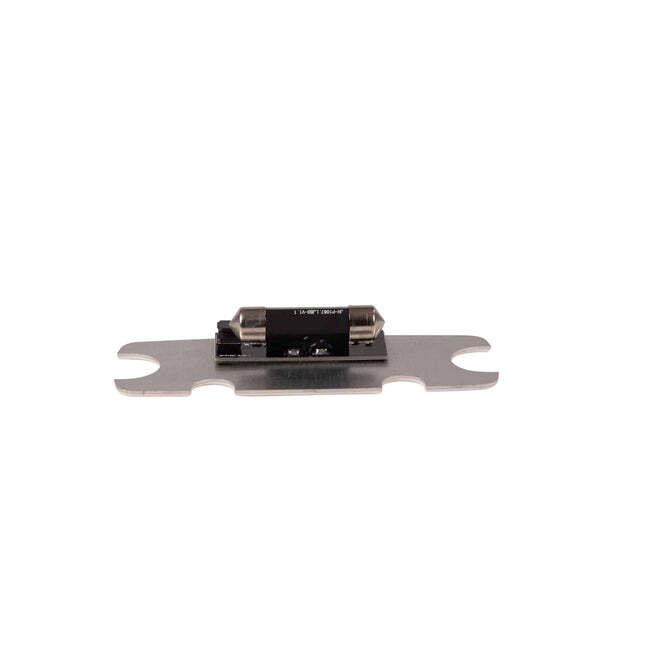

The LED Panel to suit Toyota 60-70 Series is an advanced interior light upgrade designed specifically for Toyota Landcruiser models from October 1981 to present. Utilizing the latest COB (Chips On Board) technology, this panel offers a broad and uniform light distribution over a 180° angle, significantly enhancing visibility and illumination within the vehicle. With a natural white colour temperature of 4300K, it delivers nearly four times the light output of a standard 10W bulb, while maintaining high-quality light without straining the electrical system. This panel is a direct replacement for the standard festoon bulb, fitting seamlessly into existing fixtures without modifications.

KEY FEATURES

Technology: COB (Chips On Board)

Colour Temperature: 4300K (natural white)

Light Output: Nearly 4 times that of a standard 10W bulb

Thickness: Less than 2.5mm

Voltage Range: 9V-36V DC

Lighting Distribution: 180°

Current Draw:

• Standard 31mm halogen festoon: 0.83 Amps @ 12V
• Standard 28mm halogen festoon: 0.25 Amps @ 12V
• Standard filament bulb: 0.5 Amps @ 12V

Compatibility: Toyota FJ60, FJ62, HJ60, HJ61 (wagon); FJ75, HJ75, FZJ75, HZJ75, FZJ79, HZJ79, HDJ79, VDJ79 (single cab); FJ75, HJ75, FZJ75, HZJ75, FZJ78, HZJ78, HDJ78, VDJ78 (troop carrier)

Features: Even lighting distribution, up to 3 times more intensity than standard 5050 SMDs, more light output per surface area, fully regulated integrated IC controlled circuit.
