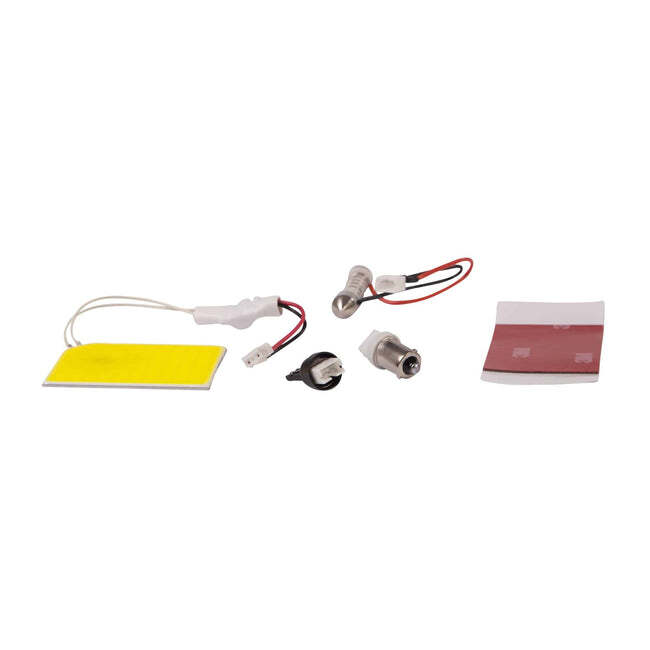

The Universal LED Interior Lighting Panel is designed to upgrade your vehicle’s interior lighting with cutting-edge COB (Chips On Board) technology. This panel provides a broad and uniform light output over 180°, ensuring enhanced visibility with minimal current draw. Featuring a natural white color temperature of 4300K, it offers superior brightness and clarity compared to standard SMD LEDs. The panel is extremely thin, measuring less than 2.8mm, and includes Festoon, T10, and BA9S adaptors for versatile installation. It is not polarity sensitive, making it easy to fit in any orientation. Each panel is fully regulated by an IC-controlled external driver circuit and supports a wide voltage range of 9V-36V DC. The kit comes with genuine 3M VHB TM industrial double-sided adhesive tape, an alcohol cleaning swab, and detailed instructions for effortless installation.

KEY FEATURES

COB Technology: Chips On Board

Color Temperature: 4300K (Natural White)

Lighting Angle: 180°

Thickness: Less than 2.8mm

Voltage Range: 9V-36V DC

Power and Performance:

• 50×35mm Panel:
• Power: 3.5W
• Current Draw: 0.29A @ 12V
• Effective Lumens: 249
• Chip Quantity: 76
• 64×35mm Panel:
• Power: 3.7W
• Current Draw: 0.31A @ 12V
• Effective Lumens: 282
• Chip Quantity: 97
• 75×35mm Panel:
• Power: 4.9W
• Current Draw: 0.41A @ 12V
• Effective Lumens: 359
• Chip Quantity: 111
