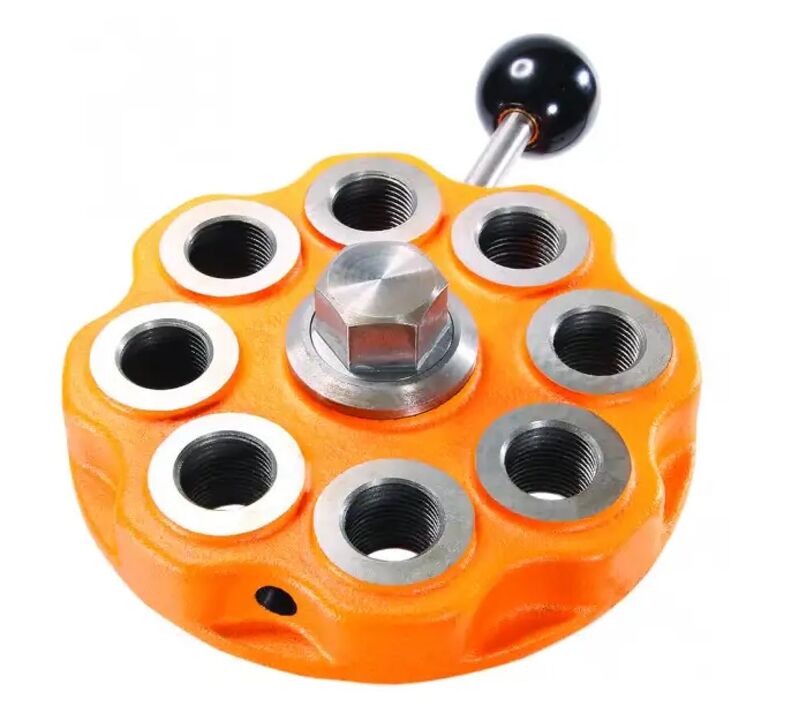

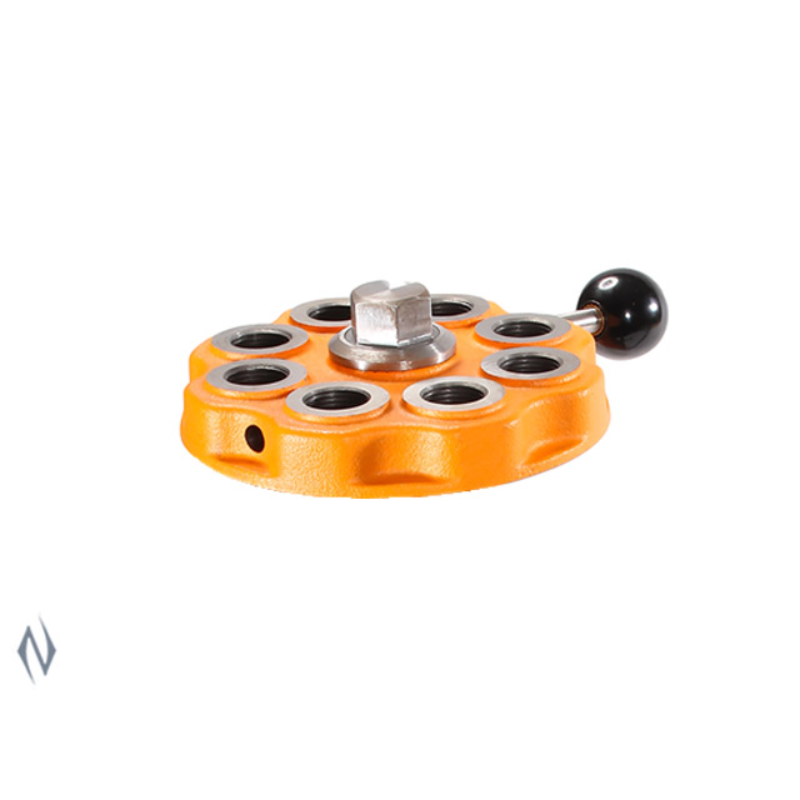

The Lyman Brass Smith All-American 8 Press Extra Turret (MPN: LY-7726165) is a heavy-duty, cast-iron replacement and spare turret head designed specifically for the Lyman Brass Smith All-American 8-Station Turret Press. Built to withstand the rigorous demands of precision reloading, this solid cast-iron component features a durable, vibrant orange powder-coat finish that resists wear, chipping, and corrosion. By utilising this extra turret head, Australian reloaders can significantly streamline their reloading workflow. Instead of constantly screwing, unscrewing, and recalibrating dies when changing calibres, users can keep their dies permanently set up on separate turret heads. Swapping calibres is reduced to simply removing the central bolt, lifting off the entire turret head, and replacing it with another pre-configured unit.

Key Features:

• Eight-Station Capacity: As the largest capacity turret head available, it features eight threaded stations, allowing you to mount up to two complete four-die sets or up to four two-die sets simultaneously.
• Seamless Calibre Swapping: Eliminates the need to constantly adjust and reset dies. Keep multiple calibres locked into their own dedicated turret heads for fast, hassle-free transitions.
• Heavy-Duty Cast Iron Construction: Provides the rigid, unyielding platform necessary to maintain precise alignment and consistency for both rifle and handgun cartridges.
• Standard Thread Compatibility: Machined to accept standard 7/8"-14 thread reloading dies from Lyman and other major manufacturers.
• Note on Package Contents: This product is sold as the turret head only. The press frame, linkage, handle, priming system, and central mounting shoulder bolt are not included.

Product Specifications:

• Brand: Lyman
• Model / MPN: LY-7726165 (7726165)
• Material: Heavy-duty cast iron with orange powder-coat finish
• Thread Size: Standard 7/8"-14 threads
• Station Count: 8 stations
• Dimensions: Approximately 16.5 cm x 16.5 cm x 7.6 cm (6.5" x 6.5" x 3.0")
• Weight: Net weight of approximately 0.9 kg (2.0 lbs); shipping weight is approximately 2.35 kg (5.18 lbs)
• Power Requirements: None (purely mechanical, manual reloading component)
• Regulatory Status: This is a non-powered, mechanical reloading accessory. It is not classified as a firearm or ammunition under Australian state and territory laws. However, users should always ensure compliance with local state regulations regarding the possession and use of reloading equipment.

Who It Is For:

This extra turret head is designed for active target shooters, hunters, and high-volume reloaders who load multiple calibres and want to maximise their workshop efficiency. If you frequently switch between different rifle or handgun calibres—such as transitioning from .223 Remington to .308 Winchester, or 9mm to .45 ACP—this product eliminates the tedious setup time associated with single-stage presses or single-turret setups. It is an essential upgrade for owners of the Lyman Brass Smith All-American 8-Station Turret Press who want to exploit the full multi-calibre potential of their reloading bench.
