Is the Lyman Cyclone Case Dryer compatible with Australian power outlets?

Yes, the Lyman Cyclone Case Dryer (model LY-CCD, MPN 7631561) is specifically the 230V export model designed for markets like Australia. It comes supplied with an AS/NZS 3112 compliant Australian 3-pin plug for direct use with our 240V/50Hz mains power.

How quickly does the Lyman Cyclone Case Dryer dry cartridge cases, and what are its advantages over air drying?

The Cyclone Case Dryer uses forced heated air circulation to dry cartridge cases thoroughly, inside and out, in just 1 to 2 hours. This rapid, uniform drying prevents water spots and tarnishing, which can occur with passive air-drying or oven-drying methods.

What is the capacity of the Cyclone Case Dryer, and can it be used for items other than cartridge brass?

The dryer can hold up to 1,000 cases of .223 Remington or 2,000 cases of 9mm Luger across its five stackable trays. Its forced-air system is also highly effective for drying disassembled gun parts that have been cleaned using an ultrasonic cleaner.

How does the built-in timer work on the Lyman Cyclone Case Dryer?

The unit features a convenient 3-hour mechanical timer, allowing you to "set and forget" your drying cycle. Simply dial the timer to your desired duration, and the dryer will automatically shut down once the cycle is complete, ensuring efficient operation.

Reloading Case Dryer - Lyman LY-CCD Cyclone Dryer

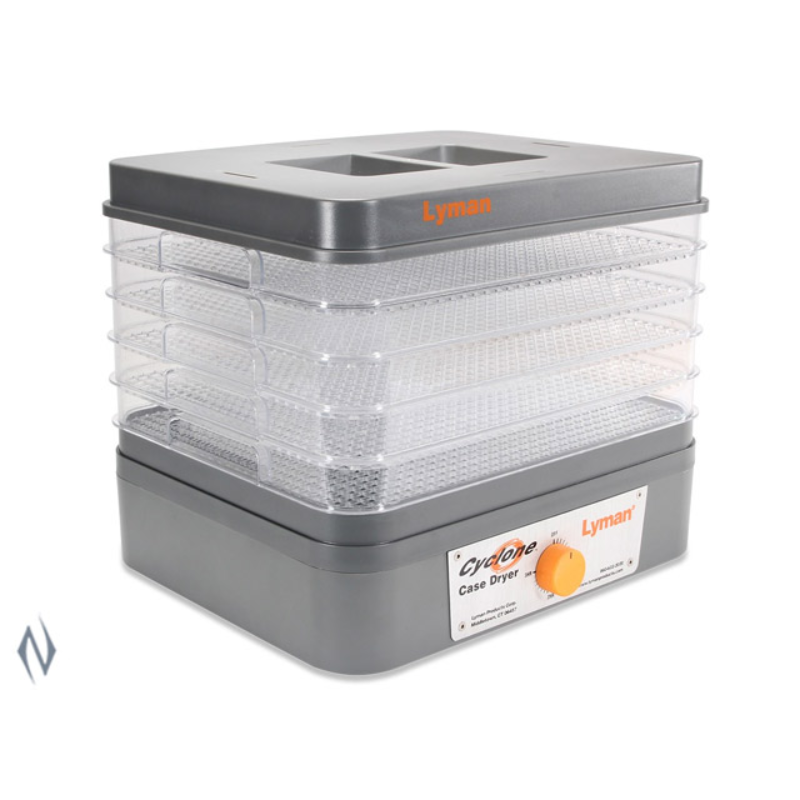

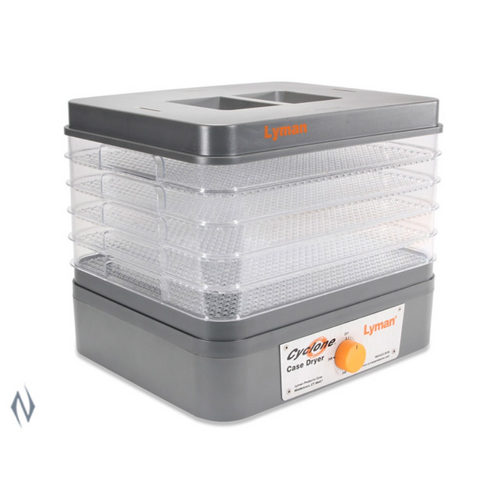

The Lyman Cyclone Case Dryer (Model LY-CCD, MPN 7631561) is a dedicated, high-capacity forced-air drying system designed to streamline the post-cleaning process for reloaders. Engineered specifically for use after wet rotary tumbling or ultrasonic cleaning, this unit replaces slow passive air-drying and inconsistent oven-drying methods. This particular model is the dedicated 230V-240V AC, 50Hz export version, making it fully compatible with Australian mains power. Sourced for the Australian market, it features an AS/NZS 3112 compliant Australian 3-pin plug, ensuring safe, direct operation without the need for voltage transformers.

Key Features:

Forced Heated Air Circulation: Utilizes an integrated fan and heating element to circulate warm air through the trays, completely drying cartridge cases inside and out in 1 to 2 hours while preventing water spots.

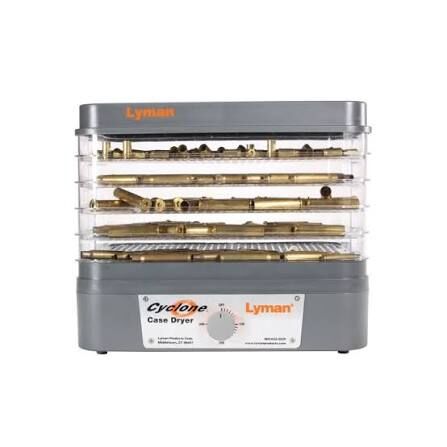

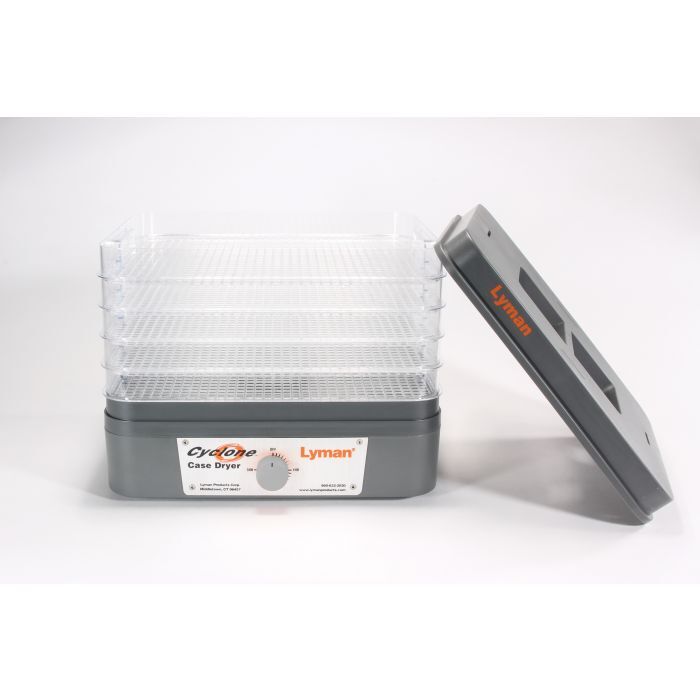

Five-Tier Stackable Tray System: Features five independent, stackable ABS plastic trays with recessed handles, allowing reloaders to dry different calibers or small gun parts simultaneously without mixing them.
High Capacity: Accommodates up to 1,000 cases of .223 Remington brass or up to 2,000 cases of 9mm Luger brass per cycle.
3-Hour Mechanical Timer: Equipped with a built-in timer that can be set for up to 3 hours, automatically shutting down the unit once the drying cycle is complete.
Multi-Purpose Versatility: Highly effective for drying both cartridge brass and disassembled gun parts that have undergone ultrasonic cleaning.

Product Specifications:

Model / SKU: LY-CCD (MPN 7631561)
Power Compatibility: 230V AC, 50Hz (Australian compliant)
Plug Type: AS/NZS 3112 compliant Australian 3-pin plug
Dimensions: Approximately 28 cm x 25.4 cm x 33 cm (11 x 10 x 13 inches)
Tray Depth: 2.54 cm (1 inch) per tray
Weight: 1.81 kg (4 lbs)
Material: Durable ABS plastic trays and lid

Who It Is For:

The Lyman Cyclone Case Dryer is designed for Australian reloaders and competitive shooters who utilize wet cleaning methods, such as stainless steel media tumbling or ultrasonic cleaning. It is highly suited for high-volume reloaders who need to process large quantities of brass quickly and efficiently without the risk of tarnishing or water spotting. It is also an excellent utility for gunsmiths and firearm owners who regularly clean disassembled firearm parts in liquid solutions and require a safe, controlled method to dry steel and alloy components before reassembly and lubrication.

SKU	LY38252LP
Model #	LY-CCD
Brand	Lyman
Shipping Weight	1.0000kg
