What does the Lyman Case Length Headspace Gauge .223 actually measure, and why is it important for reloaders?

This precision-machined, hardened steel gauge measures both the headspace and overall length of your resized .223 Remington (and compatible 5.56x45mm NATO) cartridge cases. It's an essential safety and quality-control tool that ensures your brass meets SAAMI dimensional standards, preventing dangerous issues like case head separation or improper chambering.

Is the Lyman LY-CG223 compatible with all .223 Remington and 5.56x45mm NATO cases, and can it be used for fully loaded ammunition?

Yes, this gauge is specifically designed for .223 Remington and compatible 5.56x45mm NATO bottleneck rifle cartridge cases. However, it is strictly a case gauge for empty, resized brass, and is not intended as a "go/no-go" chamber gauge for fully loaded, finished ammunition.

How do I use the Lyman LY-CG223 gauge to check my resized brass, and what should I look for?

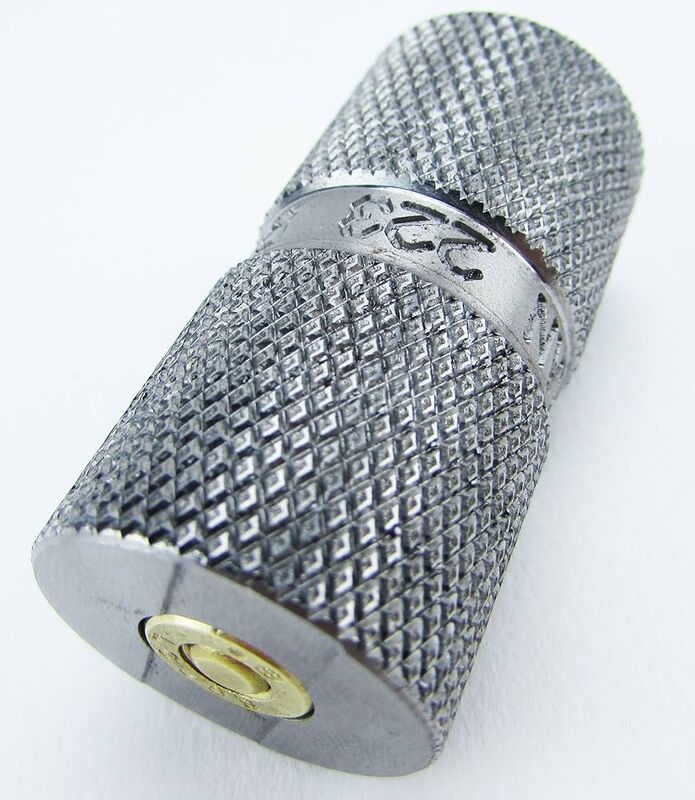

To use the gauge, simply drop a resized .223 case into it. You'll check two critical dimensions: the case head should fall between the minimum and maximum steps for correct headspace, and the case mouth should not protrude past the high step on the top, which indicates the case needs trimming if it does.

As a mechanical tool, does the Lyman LY-CG223 require any specific Australian electrical or safety certifications like SAA/RCM?

No, the Lyman Case Length Headspace Gauge .223 is a purely mechanical, non-powered hand tool. Therefore, it does not require any electrical specifications or certifications such as 240V compatibility, SAA, or RCM, making it straightforward for Australian reloaders.

What material is the Lyman LY-CG223 gauge made from, and how does this ensure its accuracy and durability?

The Lyman LY-CG223 gauge is precision-machined from hardened steel. This robust material provides exceptional resistance to wear and maintains its exact dimensions over countless uses, ensuring consistent and accurate measurements for the critical headspace and case length checks throughout its long lifespan.

Case Length Headspace Gauge .223 - Lyman LY-CG223

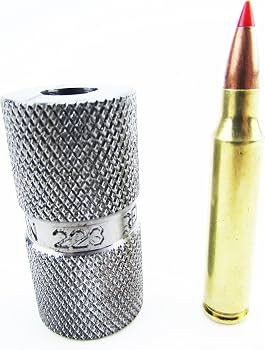

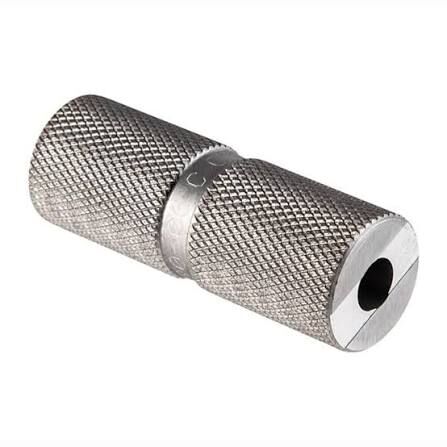

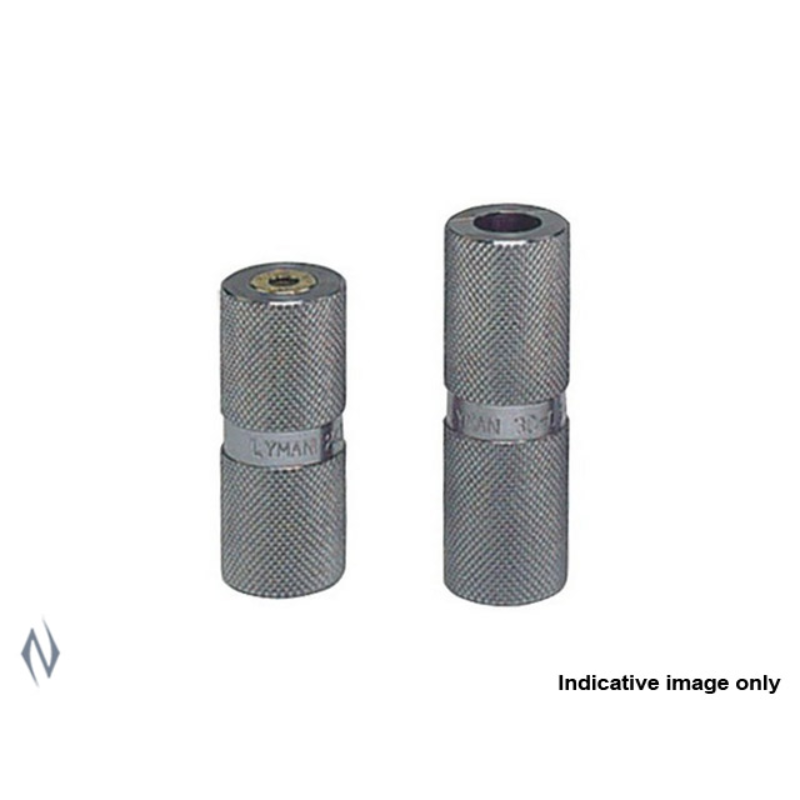

The Lyman Case Length Headspace Gauge .223 Remington (MPN: 7832323, SKU: LY-CG223) is a precision-machined quality control tool designed for firearm enthusiasts and reloaders who process .223 Remington brass. In Australia, where the .223 Remington caliber is widely used for varmint control, agricultural pest management, and target shooting, maintaining ammunition safety and consistency is critical. This manual, non-powered hand tool allows reloaders to quickly verify that their resized cartridge cases meet Sporting Arms and Ammunition Manufacturers' Institute (SAAMI) dimensional standards before reloading. By dropping a resized, empty case into the gauge, you can instantly check both headspace and overall case length, preventing chambering issues and potential firearm damage.

Key Features:

Headspace Verification: Instantly check if the distance from the cartridge datum line to the case head falls within safe minimum and maximum SAAMI limits to prevent case head separation or blown primers.
Case Length Check: Features a precision step-cut profile on the top of the gauge to easily identify stretched brass that exceeds maximum overall length and requires trimming.
Die Calibration Tool: Serves as a physical standard to help reloaders accurately set up and calibrate full-length resizing dies on their reloading presses.
High-Volume Efficiency: Replaces the slow process of measuring individual cases with digital calipers, allowing rapid manual inspection of large batches of brass.
Robust Construction: Made from precision-machined, hardened steel to ensure long-term durability and consistent measurement accuracy over thousands of cycles.

Specifications:

Manufacturer Part Number (MPN): 7832323
Model / SKU: LY-CG223
Caliber Compatibility: .223 Remington and compatible 5.56x45mm NATO bottleneck rifle cartridge cases (empty, resized brass only; not for loaded ammunition).
Material: Hardened steel.
Power Requirements: None (100% manual mechanical tool).
Weight: Approximately 80 to 100 grams.
Dimensions: Compact, pocket-sized cylindrical hand tool designed for easy storage on a reloading bench or inside a range bag.

Who It's For:

The Lyman Case Length Headspace Gauge .223 is designed for Australian sport shooters, primary producers, and recreational hunters who reload their own ammunition to optimize accuracy and manage costs. It is an essential safety tool for high-volume reloaders who need to process large quantities of .223 Remington brass quickly and safely. Whether you are prepping brass for agricultural pest control or competitive target shooting, this gauge ensures your handloads chamber reliably and perform safely in your rifle.

SKU	LY38259LP
Model #	LY-CG223
Brand	Lyman
Shipping Weight	1.0000kg
