What specific dimensions does the Lyman Case Length Headspace Gauge check for .308 Winchester cases?

This gauge is designed to verify three critical dimensions for .308 Winchester (7.62x51mm NATO) bottleneck rifle cartridge cases. It checks for correct headspace, ensuring the case is within safe limits from base to shoulder datum line. It also inspects the overall case length to identify if trimming is required, and verifies the maximum outer diameter of the resized brass.

Why is it important for reloaders to use this Lyman gauge, and who is it for?

The Lyman Case Length Headspace Gauge is an essential safety and quality-control tool for all ammunition reloaders, from beginners to experienced users. It ensures that resized .308 Winchester cases conform to safe dimensional standards, preventing potential issues like dangerous over-pressure or misfires. By verifying headspace and case length, it helps maintain consistent and safe ammunition.

Is this gauge compatible with other rifle cartridges besides .308 Winchester?

No, the Lyman Case Length Headspace Gauge (Model LY-CG308) is specifically engineered and manufactured for .308 Winchester (7.62x51mm NATO) bottleneck rifle cartridge cases only. It uses specialized reamers to ensure precise contact at the shoulder's datum line for accurate measurements unique to the .308 Winchester cartridge.

What kind of maintenance does this mechanical gauge require to ensure its longevity and accuracy?

As a purely mechanical, durable steel tool, the Lyman Case Length Headspace Gauge requires minimal maintenance. It should be kept clean and free from debris or corrosive materials. Storing it in a dry environment will prevent rust and help maintain its precision over many years of use.

308 Winchester Headspace Gauge - Lyman LY-CG308

Q: How do I use the Lyman .308 Winchester Case Length Headspace Gauge to check my brass?

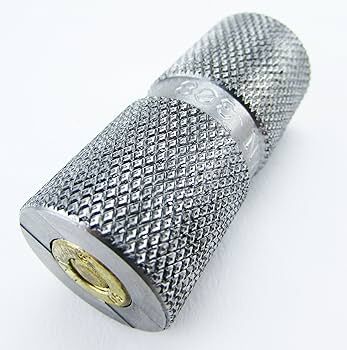

To use the gauge, simply insert a resized .308 Winchester brass case into the one-piece steel cylinder. If the case sits flush within the stepped notches on the top and bottom of the gauge, it indicates that the case is correctly sized and safe to load. If the case protrudes or sinks too deep, it signals incorrect sizing or dangerous headspace, requiring adjustments to your reloading dies or discarding the brass.

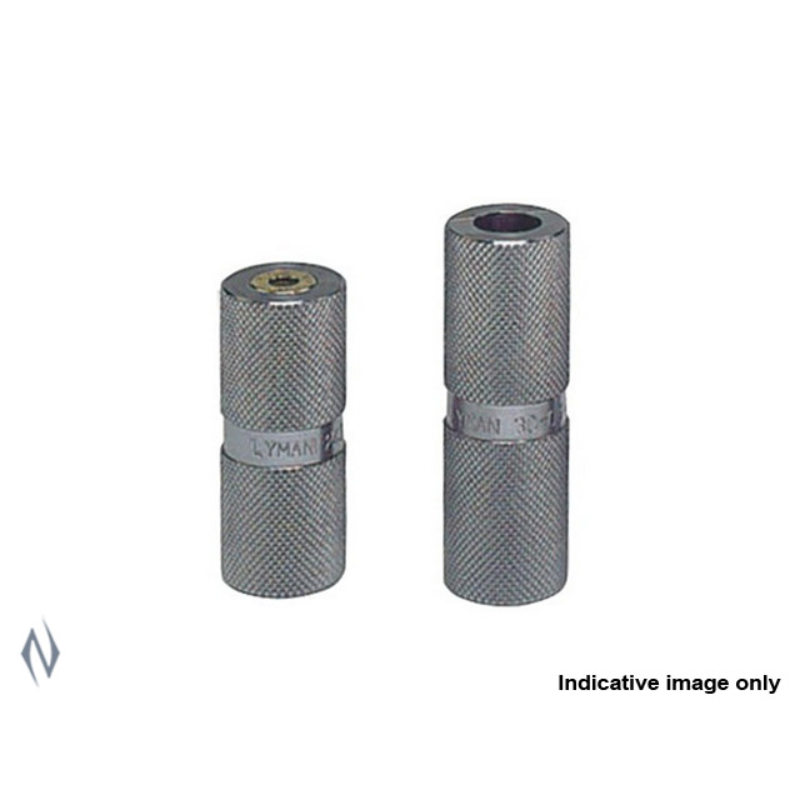

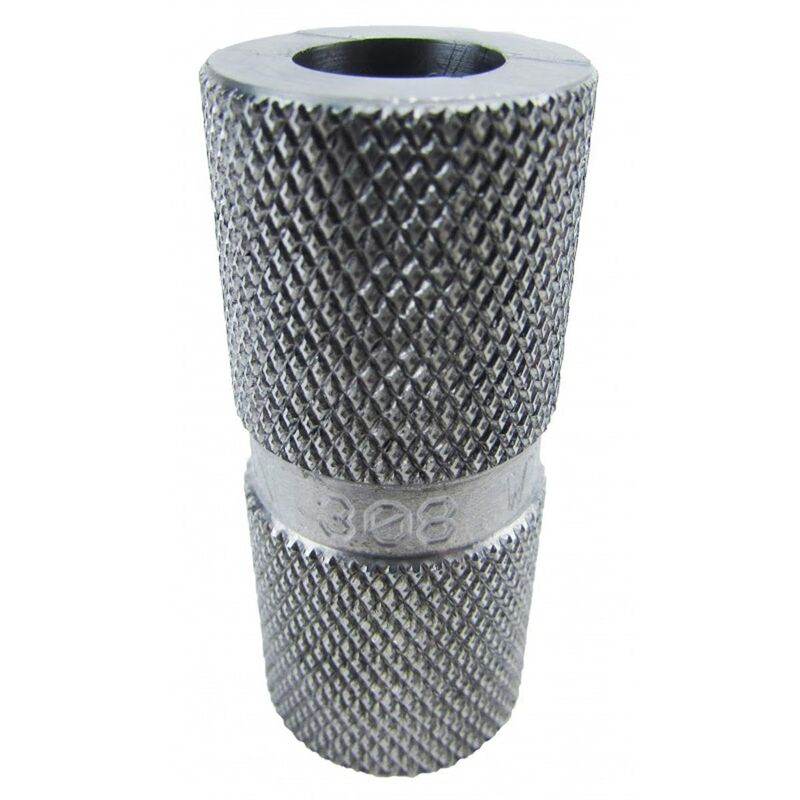

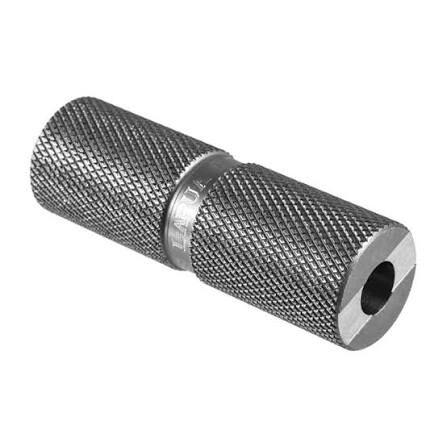

The Lyman .308 Winchester Case Length / Headspace Gauge (MPN: 7832321, SKU: LY-CG308) is a precision-engineered safety and quality-control tool designed for ammunition reloaders. Manufactured from high-quality, durable steel, this one-piece, non-adjustable cylinder-type gauge allows reloaders to verify that resized bottleneck cartridge cases meet safe dimensional standards before they are loaded and fired. For Australian shooters, maintaining correct cartridge dimensions is critical for both firearm safety and optimal accuracy. This fully mechanical tool requires no power or calibration, providing a reliable, analog solution for checking case headspace, overall length, and outer diameter.

Key Features:

Precise Headspace Verification: Measures the critical headspace dimension from the cartridge base to the datum line of the shoulder, ensuring the case does not exceed maximum limits or fall below minimum safety standards.
Case Length Inspection: Quickly identifies if a case has stretched beyond the maximum allowable overall case length, indicating whether trimming is required.
Maximum Diameter Check: Features a precisely bored cylinder to verify that the maximum outer diameter of the resized brass will chamber smoothly.
Specialized Tooling: Crafted using special reamers rather than standard chamber reamers, providing clearance both in front of and behind the shoulder to ensure contact is made exclusively at the shoulder datum line.
Simple Mechanical Design: A durable, hand-held steel block with stepped notches on the top and bottom for instant visual and tactile confirmation of case compliance.

Product Specifications:

Brand: Lyman
Model/SKU: LY-CG308
Manufacturer Part Number (MPN): 7832321
Material: High-quality, durable steel
Type: One-piece, non-adjustable cylinder-type gauge
Compatibility: .308 Winchester (7.62x51mm NATO) bottleneck rifle cartridge cases
Power Requirements: None (fully mechanical/analog tool)
Dimensions and Weight: Compact, hand-held cylindrical steel block designed to fit a single .308 Winchester cartridge case

Who It Is For:

This product is designed for Australian handloaders, competitive target shooters, and hunters who reload .308 Winchester and 7.62x51mm NATO ammunition. It is a crucial tool for anyone using single-stage or progressive reloading presses who wants to prevent dangerous headspace issues, failure-to-chamber malfunctions, or excessive pressure in their rifles. Whether preparing ammunition for long-range precision shooting or standard field hunting, this gauge ensures every round is sized to safe, consistent tolerances.

SKU	LY38260LP
Model #	LY-CG308
Brand	Lyman
Shipping Weight	1.0000kg
