Will the Lyman Mag 25 operate directly on standard Australian 240V mains power without a transformer?

Standard US base models of the LY-MAG25 require a dedicated step-down transformer rated for at least 1,000W if imported directly, as they operate on 115V. When purchasing locally from Australian stockists, ensure you select the 230V international variant to match our 230–240V AC mains supply safely and efficiently.

How does the PID digital thermal management system maintain alloy consistency during long casting sessions?

The Lyman Mag 25 features a keypad-controlled interface driven by an 850W heating element and dual digital displays that show your target setpoint and actual lead bath temperature in real time. This precise PID thermal management prevents temperature swings, ensuring uniform alloy consistency shot-to-shot across its full 25 lbs capacity.

Is the universal mould guide compatible with standard Lee 6-cavity blocks or wide hollow-point moulds?

The built-in aluminum guide channel is 1 3/8 inches wide with a 3.0-inch spout-to-base clearance, which means it will not directly fit standard Lee 6-cavity blocks or certain wide hollow-point moulds without custom aftermarket guides or manual hand-holding. However, it readily supports most standard 1-to-4 cavity moulds from Lyman, RCBS, and Redding/Saeco right out of the box.

What tools or accessories can I use alongside the Mag 25 to streamline my bullet casting workflow?

To get the most out of your setup, you can pair the furnace with the Lyman 4-Cavity Cast Iron Ingot Mould to efficiently pre-melt and cast clean 1lb lead ingots before feeding them into the 25 lb pot. Additionally, utilizing the furnace's integrated top warming shelf allows you to properly preheat your mould blocks prior to casting for optimal fill-out.

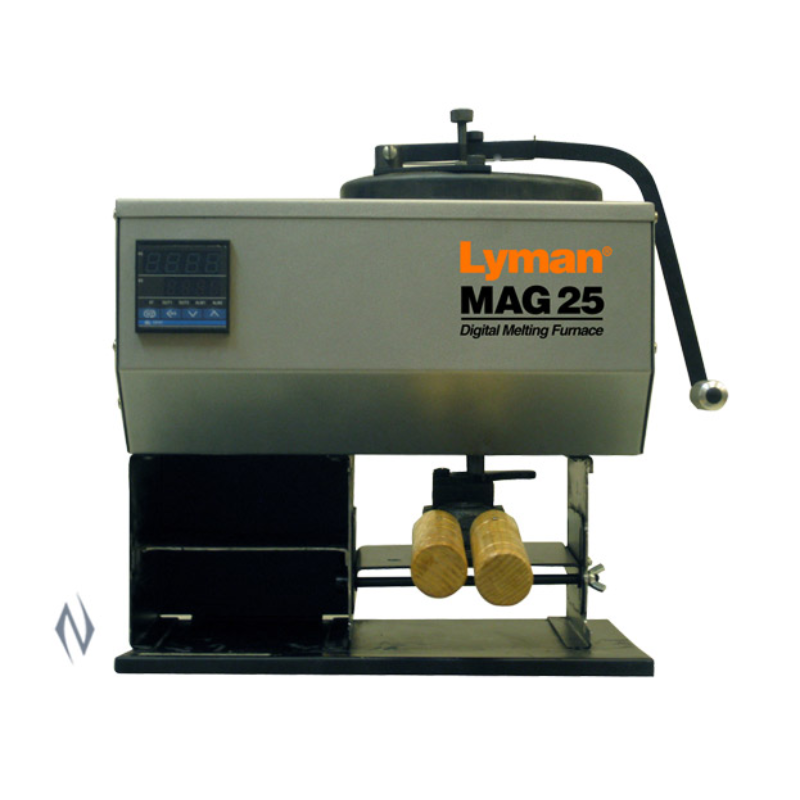

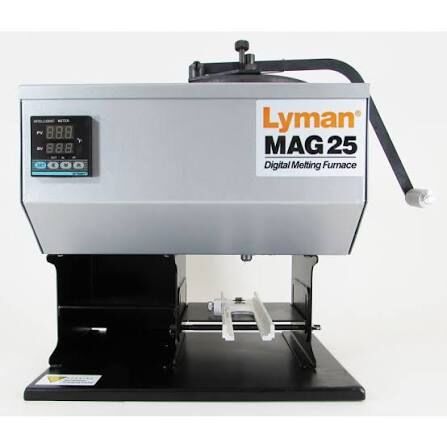

Lead Melting Furnace - Lyman LY-MAG25

The Lyman Mag 25 Digital Melting Furnace is a high-capacity digital bullet casting pot engineered for precision projectile manufacturing. Equipped with an 850 W heating element and an advanced PID digital thermal management system, the furnace maintains strict lead alloy temperature consistency. Its 25 lbs (approximately 11.34 kg) molten alloy capacity and bottom-pour valve mechanism allow reloaders to execute prolonged, uninterrupted casting sessions with uniform flow rates.

Key Features

PID Digital Thermal Control: Features a keypad interface with dual digital displays that show the target setpoint and the actual molten alloy bath temperature in real-time, holding setpoints up to approximately 850°F to 900°F (370°C to 455°C).
High-Capacity Melting Pot: The 4.4-inch (11.2 cm) diameter pot holds up to 25 lbs of casting alloy to support continuous, large-batch bullet production.
Bottom-Pour Dispensing: Includes an adjustable flow screw valve assembly to regulate stream velocity across various mould types.
Universal Mould Guide: Built with a 1 3/8-inch wide aluminum guide channel and 3.0 inches (76.2 mm) of spout-to-base clearance, supporting most standard 1-to-4 cavity moulds from Lyman, RCBS, and Redding/Saeco.
Integrated Workstation Utilities: Built-in mould warming shelf on top allows operators to preheat mould blocks prior to casting, alongside an integrated tool storage compartment.

Product Specifications

Lead Alloy Capacity: 25 lbs (approx. 11.34 kg)
Heating Element: 850 W
Pot Internal Diameter: 4.4 inches (approx. 11.2 cm)
Unit Dimensions: Approx. 13.5 inches H x 10.5 inches W
Clearance: Approx. 3.0 inches (76.2 mm) spout-to-base; 1 3/8-inch wide mould channel
Dispensing Mechanism: Bottom-pour valve with flow adjustment
Operating Temperature Range: Up to ~850°F–900°F (approx. 455°C–482°C)

Who is the Lyman Mag 25 Digital Melting Furnace for?

High-volume reloaders casting rifle and pistol bullets — 25 lbs molten lead capacity paired with an 850 W heating element provides the volume and continuous thermal recovery necessary for long bullet casting runs without frequent alloy replenishments.
Competitive shooters demanding strict alloy consistency — PID digital temperature management system monitors the 4.4-inch diameter alloy bath in real time to eliminate temperature swings between cast projectiles, ensuring shot-to-shot weight uniformity.

Less suitable for: Small-batch casting runs requiring under 10 lbs of alloy, where compact 4–10 lb production pots offer faster setup and lower power draw; commercial multi-operator operations requiring dedicated industrial foundry furnaces exceeding 50 lbs; wide hollow-point moulds or standard 6-cavity blocks requiring clearance beyond the 1 3/8-inch mould guide channel; and high-temperature metal casting involving brass, bronze, cast iron, or pure aluminium exceeding standard alloy temperatures.

SKU	LY39903LP
Model #	LY-MAG25
Brand	Lyman
Shipping Weight	8.0000kg
