What makes the Lyman Pro Stainless Headspace Gauge superior for .308 Winchester reloading?

This gauge is precision-machined from corrosion-resistant stainless steel, featuring anti-roll flat sides and integrated O-rings for a secure grip. It uniquely allows for a three-way verification of minimum/maximum cartridge headspace and maximum overall case length in a single drop-in step. This design exceeds standard reloading industry tolerances for .308 Winchester and 7.62x51mm NATO cartridges.

How does this gauge help ensure safe and reliable ammunition for Australian hunters and shooters?

The Lyman Pro Headspace Gauge is crucial for setting up your resizing dies to prevent dangerous headspace issues like case head separation, which can occur with improperly sized brass. By quickly verifying correct case dimensions, it ensures your .308 Winchester ammunition chambers safely and reliably in your firearm. This provides peace of mind whether for target shooting or hunting in the Australian bush.

Are there any specific Australian electrical or safety compliance requirements for this product?

No, the Lyman Pro Stainless Headspace Gauge is a purely mechanical, non-electronic precision measuring tool. It does not require any electrical power, so standard Australian electrical compliance requirements such as 240V, SAA approvals, or RCM certification are not applicable. It is safe and ready for immediate use on any Australian reloading bench.

What specific cartridges is the LY-PHG308 gauge compatible with, and what other XHunter products complement its use?

This gauge is specifically designed for precise headspace and case length verification of .308 Winchester and 7.62x51mm NATO bottleneck cartridges. For a complete reloading setup, consider pairing it with a Lyman Stuck Case Remover Kit or Lyman Brass Smith Primer Tubes. A Plano Sturdy Safety Hard Plastic Ammo Box is also ideal for storing your finished .308 rounds.

Headspace Gauge .308 Winchester - Lyman LY-PHG308

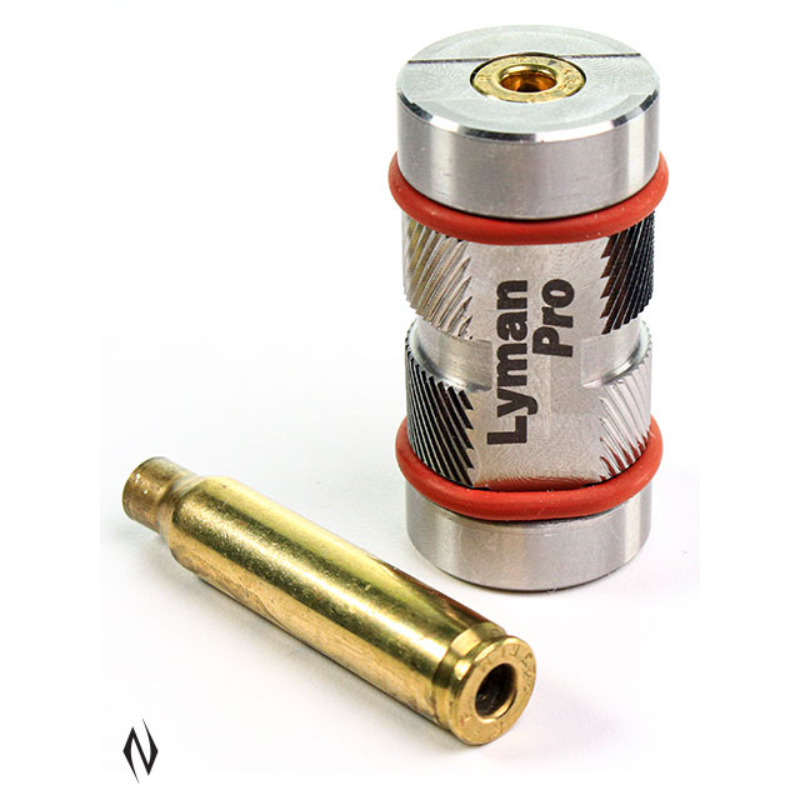

Lyman Pro Stainless Headspace Gauge .308 Winchester Overview

The Lyman Pro Stainless Headspace Gauge .308 Winchester (MPN: LY-PHG308, Lyman factory part number 7705102) is a premium, single-piece cylinder-type gauge engineered to exceed standard reloading industry tolerances. Designed specifically for the highly popular .308 Winchester and 7.62x51mm NATO bottleneck cartridges, this precision tool is essential for setting up and adjusting resizing dies. By dropping a resized case into the gauge, Australian reloaders can instantly verify if their brass has been sized correctly to chamber safely, preventing dangerous headspace issues such as case head separation or chambering failures. Crafted from corrosion-resistant, precision-machined stainless steel, this gauge features user-centric design upgrades inspired by the high-end Lyman Pro Die series, making it a rugged and reliable addition to any Australian reloading bench.

Key Features of the Lyman Pro Stainless Headspace Gauge

Three-Way Verification: Allows reloaders to quickly check three critical dimensions in a single drop-in step: minimum cartridge headspace (base to datum line), maximum cartridge headspace, and maximum overall case length.
Anti-Roll Flat Sides: Machined with flat outer surfaces to prevent the gauge from rolling off slanted or busy reloading benches, protecting the precision tool from accidental drops.
Integrated O-Rings: Features rubber O-rings around the body to provide a secure, non-slip grip during oily, wet, or highly repetitive case-checking sessions.
Premium Stainless Steel Construction: Machined from high-grade, corrosion-resistant stainless steel to ensure long-term durability and resistance to rust in humid Australian climates.
No Electrical Requirements: This is a purely mechanical, non-electronic precision measuring tool. It does not require batteries or mains power, meaning standard Australian electrical compliance requirements—such as 240V mains compatibility, SAA approvals, Regulatory Compliance Mark (RCM) certification, or AS/NZS 3112 plugs—are completely non-applicable.

Technical Specifications

Brand: Lyman
Model / MPN: LY-PHG308 (Lyman Factory Part Number: 7705102)
Cartridge Compatibility: .308 Winchester and 7.62x51mm NATO bottleneck cartridges
Material: Precision-machined, corrosion-resistant stainless steel
Product Weight: Approximately 112 grams (0.248 lbs)
Physical Dimensions: Approximately 15.2 cm Height x 5.1 cm Width x 11.4 cm Length (6.0" H x 2.0" W x 4.5" L)
Power Source: None (manual mechanical tool)

Who is the Lyman Pro Stainless Headspace Gauge For?

This precision gauge is specifically designed for Australian target shooters, competitive benchrest competitors, and hunters who reload their own .308 Winchester or 7.62x51mm NATO ammunition. Whether you are prepping brass for a high-stakes precision rifle match or loading hunting rounds for the field, this tool ensures your handloads conform to exact dimensional standards. It is an indispensable safety and quality control tool for any reloader looking to extend the life of their brass, optimize rifle accuracy, and guarantee flawless chambering and extraction in standard .308 caliber firearms used across Australia.

SKU	LY38514LP
Model #	LY-PHG308
Brand	Lyman
Shipping Weight	1.0000kg
