What makes the Lyman Revolution HD Gun Vise "heavy-duty" and suitable for precision work?

The "HD" in its name signifies its robust construction, featuring heavy-duty aluminum frames, an aluminum center beam, and stainless steel connecting rods, weighing 16.5 lbs. This solid, non-flexing platform is engineered for precision tasks like scope mounting, bore sighting, and detailed gunsmithing, providing exceptional stability for Australian shooters.

How does the 180-degree rotation feature enhance gun maintenance or gunsmithing tasks?

The standout 180-degree rotation allows you to securely tilt your firearm to the exact angle needed, locking it in place at 6 to 6.5-degree increments. This enables easy access to the action, undercarriage, or side-mounted optics for cleaning, adjustments, or maintenance without removing the gun from the vise, significantly streamlining your workflow.

Is the Lyman Revolution HD Gun Vise compatible with a wide range of firearms, including AR-platform rifles?

Yes, it's highly versatile and designed to accommodate rifles, shotguns, pistols, and modern sporting rifles (MSRs/AR-platform firearms). The padded gun clamps can be adjusted horizontally from 3 inches to 17 inches apart and offer up to 2 inches of vertical height adjustment. It also includes a specialized, locking AR magazine well support post for secure mounting of AR-type lowers.

Does this gun vise require any special electrical setup or Australian certifications?

No, the Lyman Revolution HD Gun Vise is a completely mechanical, manual workholding tool. It does not contain any electrical components, motors, or wiring, so it does not require 240V compatibility, SAA approvals, RCM electrical certifications, or an Australian AS/NZS 3112 plug. It's ready for use straight out of the box in any workshop.

Gunsmithing Vise - Lyman LY-RHDGV Revolution HD

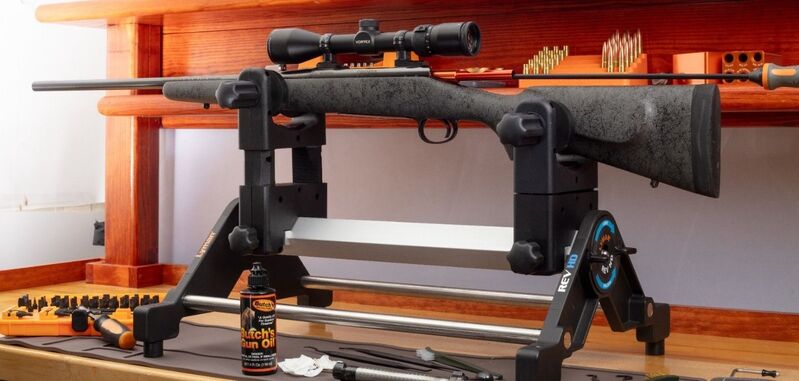

The Lyman Revolution HD Heavy Duty Gun Vise (Model: LY-RHDGV, MPN: 7832280) is a highly adjustable, robust workholding solution designed for firearm maintenance, cleaning, and detailed gunsmithing. Engineered with a solid aluminum frame, an aluminum center beam, and stainless steel connecting rods, this heavy-duty vise weighs 16.5 lbs (approximately 7.48 kg) to eliminate flexing and provide a stable platform on any workshop bench. Its standout feature is a 180-degree rotating mechanism that locks securely at increments of 6 to 6.5 degrees, allowing users to tilt a clamped firearm to the exact angle needed to access the action, undercarriage, or side-mounted optics without removing it from the vise. Key Features:

Heavy-Duty Construction: Built with solid aluminum and stainless steel components to prevent the flexing common in plastic alternatives, ensuring a stable 7.48 kg base.
180-Degree Rotating Mechanism: Enables full rotation of the firearm with secure locking positions every 6 to 6.5 degrees for hands-free access to all angles.
Highly Adjustable Clamping: Padded gun clamps can be adjusted horizontally between 3 inches and 17 inches (7.6 cm to 43.2 cm) to accommodate various firearm lengths.
Vertical Height Adjustment: Clamping towers offer up to 2 inches (5 cm) of vertical travel for precise leveling and positioning.
Non-Marring Pads: Padded clamps protect delicate wood, synthetic, or metal finishes from scratches and damage during high-torque work.

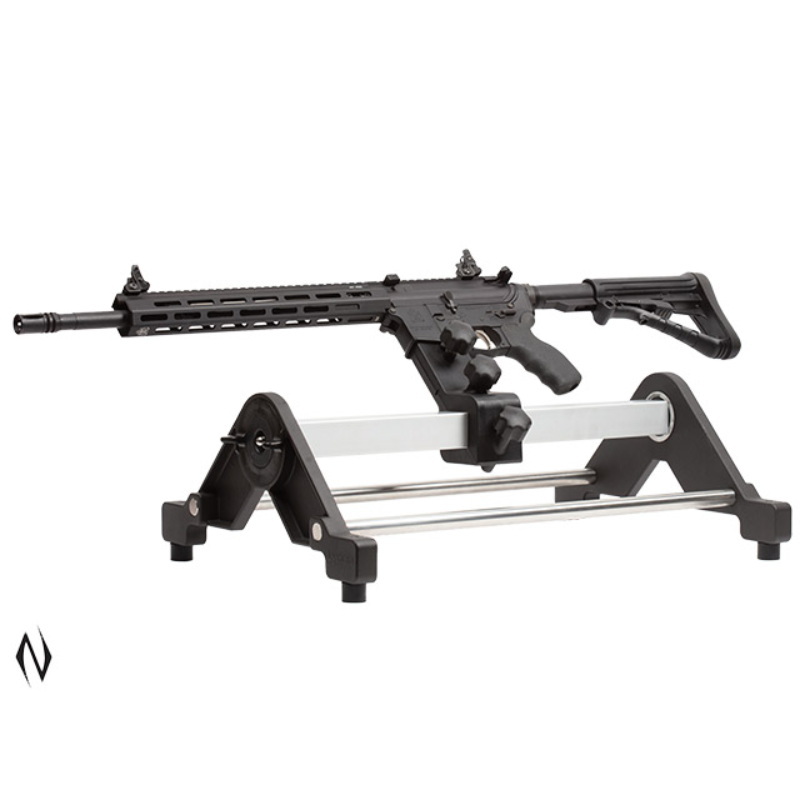

Dedicated AR-15 Support: Includes a specialized, locking AR magazine well support post that inserts into the magwell and expands to lock the lower receiver firmly in place.
Completely Mechanical Design: This manual workshop tool requires no electrical power, meaning standard Australian 240V electrical certifications, SAA approvals, and RCM marks are not applicable.

Product Specifications:

Model Number: LY-RHDGV
Manufacturer Part Number: 7832280
Weight: 16.5 lbs (7.48 kg)
Frame Material: Heavy-duty aluminum and stainless steel
Clamping Distance Range: 3 inches to 17 inches (7.6 cm to 43.2 cm)
Vertical Adjustment Range: Up to 2 inches (5 cm)
Rotation Angle: 180 degrees (adjustable in 6 to 6.5-degree increments)
Power Requirements: None (manual mechanical operation)

Who It Is For:

The Lyman Revolution HD Gun Vise is designed for Australian hunters, target shooters, and professional gunsmiths who require a stable, versatile platform for firearm maintenance. It is highly compatible with common Australian firearms, including bolt-action centerfire and rimfire hunting rifles, shotguns, registered pistols, and modern sporting rifles. Whether you are performing precision scope mounting, bore sighting, detailed cleaning, or trigger adjustments, this heavy-duty vise provides the stability and adjustability needed for precise workshop tasks.

SKU	LY38552LP
Model #	LY-RHDGV
Brand	Lyman
Shipping Weight	1.0000kg
