Which bullet sizing presses and bullet profiles is the Lyman Top Punch 424 designed to work with?

The Lyman Top Punch 424 is specifically designed for use with the Lyman 450, Lyman 4500 Lube Sizer, and RCBS Lube-A-Matic-2 Bullet Sizer/Lubricator presses. It is engineered to perfectly fit .45 Colt (.452" diameter) 255-grain Semi-Wadcutter (SWC) and Semi-Wadcutter Gas Check (SWC-GC) cast bullets, as well as select Lee Precision molds like the 452-252-SWC and 452-255-RF.

What is the main advantage of using the Lyman Top Punch 424 for sizing cast bullets?

The primary advantage of the Lyman Top Punch 424 is its precision-machined nose cavity, which perfectly cradles the specific contour of .45 Colt 255-grain Semi-Wadcutter bullets. This design prevents nose flattening, distortion, or deformation during the sizing and lubricating process, ensuring the bullet maintains its original profile and concentricity for optimal downrange accuracy.

Are there any specific Australian electrical or safety compliance requirements for the Lyman Top Punch 424?

No, the Lyman Top Punch 424 is a purely mechanical, non-powered steel component and does not require electricity. Therefore, Australian 240V compatibility, SAA/RCM certifications, or specific plug configurations are not applicable. It is a straightforward accessory for manual bullet sizing and lubricating, widely used by Australian handloaders.

Can the Lyman Top Punch 424 be used with other .45 caliber bullet weights or profiles?

While it is specifically engineered for the .45 Colt 255-grain Semi-Wadcutter and Semi-Wadcutter Gas Check profiles, it may be compatible with other .45 caliber bullets that share an identical nose contour, such as specific Lee Precision 452-252-SWC and 452-255-RF molds. Using it with significantly different bullet profiles could lead to deformation or improper sizing.

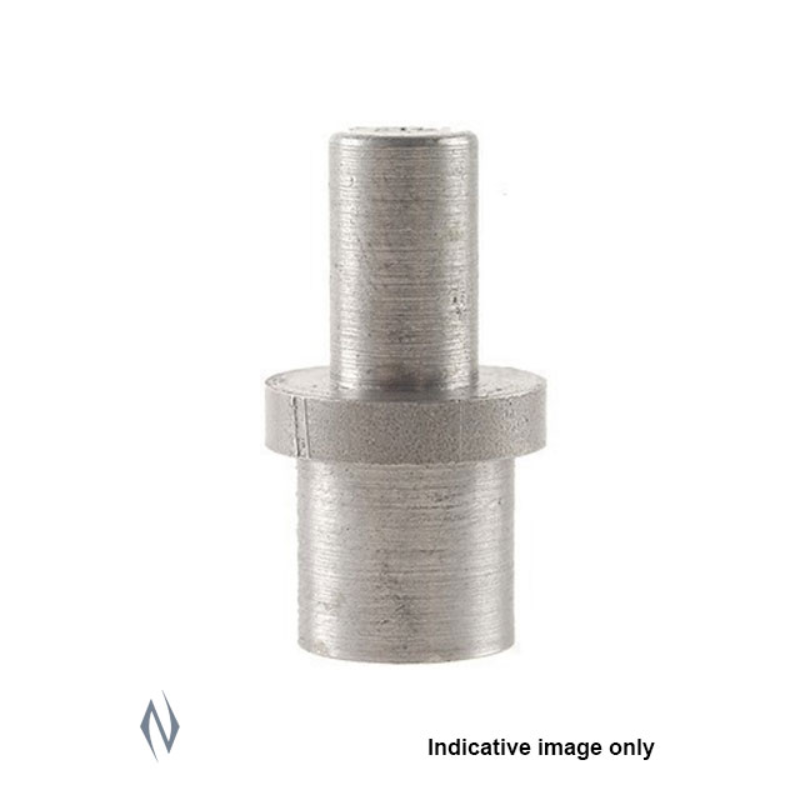

Bullet Sizing Top Punch - Lyman LY-TP424

The Lyman Top Punch #424 (Manufacturer Part Number: 2786730, also cataloged as LY-TP424) is a precision-machined steel reloading accessory designed for bullet casting enthusiasts who size and lubricate their own projectiles. Engineered to fit industry-standard bullet lubricating and sizing presses, this top punch is specifically shaped to match the exact nose contour of .45 Colt (.452" diameter) 255-grain Semi-Wadcutter (SWC) and Semi-Wadcutter Gas Check (SWC-GC) cast bullets. By perfectly cradling the bullet nose, it ensures even pressure distribution during the sizing process, preventing any flattening, distortion, or deformation of the soft lead projectile.

Key Features:

Nose Profile Protection: The precisely machined cavity matches the exact shape of .45 Colt 255-grain SWC bullets, protecting the nose from flattening or deforming under press pressure.
Concentric Alignment: Guides the cast bullet perfectly straight down into the sizing die, maintaining optimal concentricity which is critical for downrange accuracy.
Robust Steel Construction: Machined from solid steel with a weight of approximately 15 to 20 grams, ensuring durability and a long service life under heavy reloading use.
Broad Compatibility: Standardized shank diameter fits the Lyman 450, Lyman 4500 Lube Sizer, and the RCBS Lube-A-Matic-2 Bullet Sizer/Lubricator. It also aligns with select Lee Precision molds, including the 452-252-SWC and 452-255-RF.
Mechanical Reliability: This is a fully manual, non-powered hand-tool accessory requiring no electricity or external power sources.

Product Specifications:

Brand: Lyman
Model Number: LY-TP424 (MPN: 2786730)
Material: Machined Steel
Weight: 15 to 20 grams
Press Compatibility: Lyman 450, Lyman 4500, RCBS Lube-A-Matic-2
Bullet Compatibility: .45 Colt (.452" diameter) 255-grain SWC, SWC-GC, and matching Lee Precision molds

Who It Is For:

The Lyman Top Punch 424 is designed for Australian handloaders and active sporting shooters who cast their own lead ammunition to manage costs and tune load accuracy. It is highly utilized by competitors in the Australian Single Action Shooting Society (SASS) and Cowboy Action matches, where the historic .45 Colt cartridge is a staple. Because cast lead projectiles are highly susceptible to deformation during the sizing process, this top punch is an essential tool for shooters who demand consistent .452" diameter sizing, reliable chamber feeding, and precise downrange performance from their handloads.

SKU	LY38570LP
Model #	LY-TP424
Brand	Lyman
Shipping Weight	1.0000kg
