What calibre range does the MTM AF-7 Universal Powder Funnel Kit support?

The MTM AF-7 kit accommodates a wide variety of rifle and handgun cases ranging from .17 calibre up to .500 S&W Magnum. It features a 7-piece modular system including four specific adapters and a 4-inch drop tube, allowing handloaders to seamlessly switch between different brass sizes without purchasing multiple dedicated funnels.

Can I use the drop tube with every calibre in this kit?

No, the included 4-inch drop tube is specifically designed to work with calibres between .22 and .45. It helps settle bulky extruded or stick powders to maximise case fill density, while the smaller .17 calibre adapter and larger .500 S&W cases utilise direct-fit configurations.

Are there any special firearms licences required to purchase this reloading funnel in Australia?

No permits or firearms licences are required to purchase or own the MTM AF-7 powder funnel kit in any Australian state or territory. Because it is classified entirely as a mechanical benchtop reloading accessory with no electronic components, it is freely available for general purchase.

How do I store the interchangeable adapters so they do not get lost on the reloading bench?

The kit includes a dedicated clear storage case designed to securely house all 7 modular pieces when not in use. This keeps the adapters organised, protected from dust, and easily identifiable between your reloading sessions.

Powder Funnel Kit - MTM AF-7

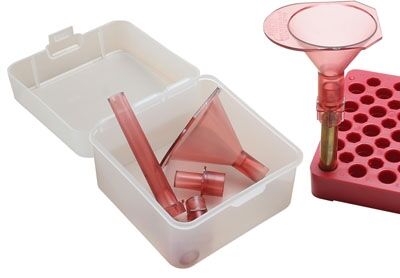

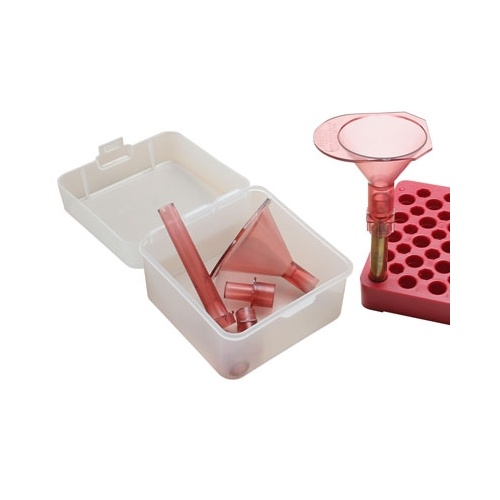

The MTM Case-Gard Universal Powder Funnel Kit (AF-7) is a 7-piece modular reloading accessory designed to transfer gunpowder into rifle and handgun brass without powder bridging or spillage. Built from red injection-moulded plastic, the system adapts across a wide range of case mouth diameters from .17 calibre up to .500 S&W Magnum. It includes specialised adapters for stepped cases like WSM, WSSM, and Remington Ultra Mag, as well as a 4-inch drop tube designed to settle bulky or extruded powders for increased load density.

Key Features

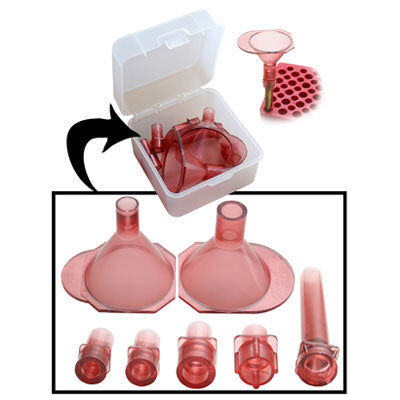

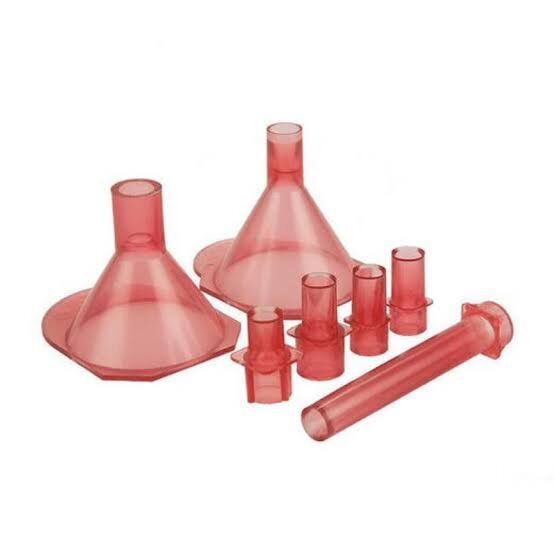

Modular 7-Piece System: Includes the main Adapto funnel body, a secondary multi-calibre funnel, four calibre-specific adapters, a drop tube, and a clear storage case.
Wide Calibre Coverage: Direct-docking adapters accommodate case mouths spanning .17 to .22, .22 to .29, .30 to .45, and magnum contours up to .500 S&W.
4-Inch (10.16 cm) Drop Tube: Settles stick and extruded propellants into .22 to .45 calibre cases to maximise internal case fill capacity.
Magnum & Short Magnum Support: Specially stepped adapter contours securely fit WSM, WSSM, and Remington Ultra Mag cartridges.

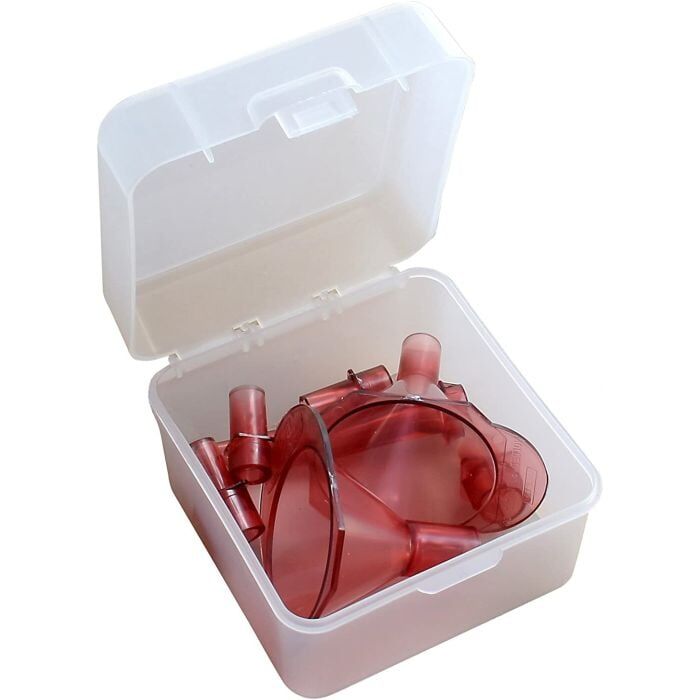

Organised Bench Storage: Supplied with a dedicated clear plastic case to store all adapters and protect them from loss between reloading sessions.
Manual Operation: 100% mechanical reloading tool requiring no electrical power or mains connectivity.

Specifications

Brand: MTM Case-Gard
Model / SKU: AF-7
Material: Injection-moulded polymer
Colour: Red
Calibre Compatibility Envelope: .17 calibre to .500 S&W Magnum
Drop Tube Calibre Range: .22 to .45 calibre
Drop Tube Length: 4 inches (10.16 cm)
Packaged Dimensions: Approximately 21.5 cm × 12 cm × 6.5 cm
Packaged Weight: Approximately 140 g to 180 g (5 oz to 6 oz)

Who is the MTM Universal Powder Funnel Kit .17 to .500 S&W for?

Multi-Calibre Handloaders — Requires a single universal reloading powder funnel system that covers case neck diameters from .17 calibre up to .500 S&W Magnum across both rifle and pistol brass without purchasing separate calibre-dedicated units.
Compressed Load Reloaders — Utilises the integrated 4-inch (10.16 cm) drop tube to settle bulky extruded propellants into .22 to .45 calibre cases to achieve higher powder fill density.

Less suitable for: Reloaders charging ultra-small sub-.17 calibre wildcats (.10 to .14 calibre) or large-bore cartridges exceeding .500 S&W case mouth geometry, which require dedicated heavy-duty .50 BMG funnels or calibre-specific sub-calibre tooling.

SKU	MM41118LP
Model #	AF-7
Brand	Mtm Case-Gard
Shipping Weight	1.0000kg
