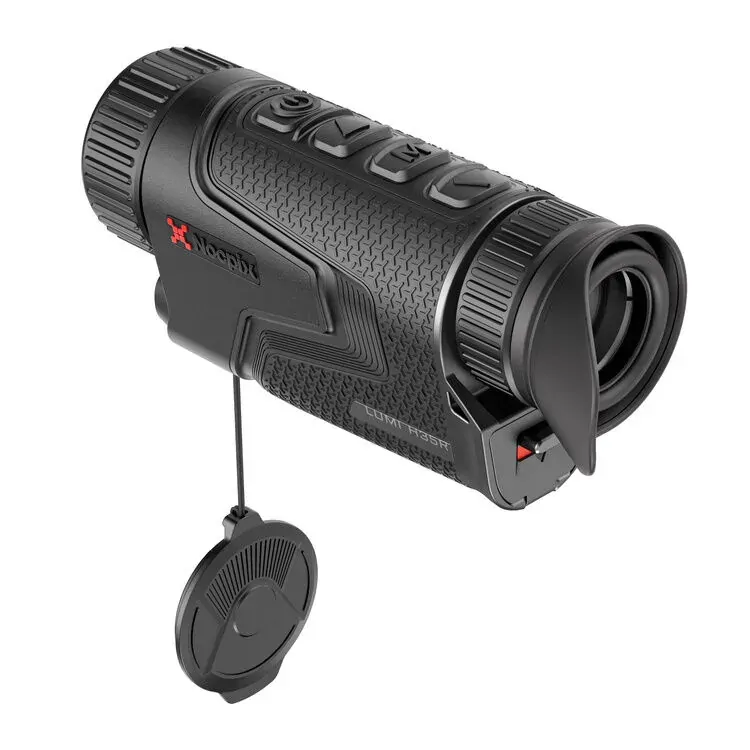

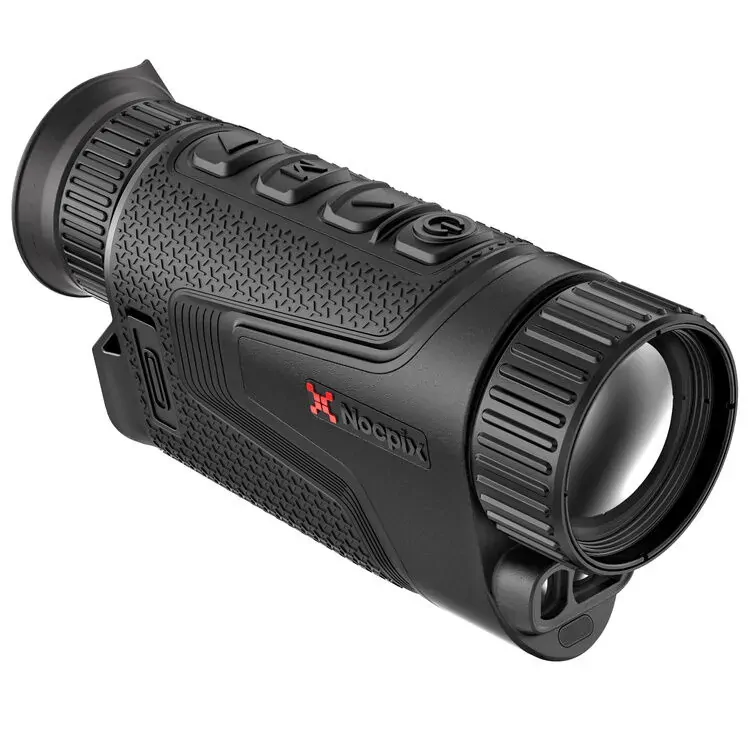

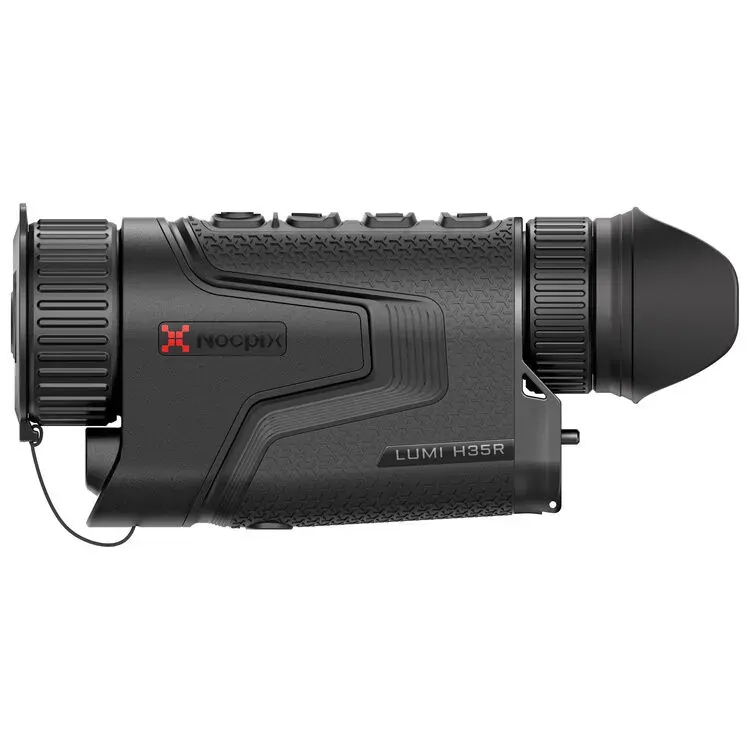

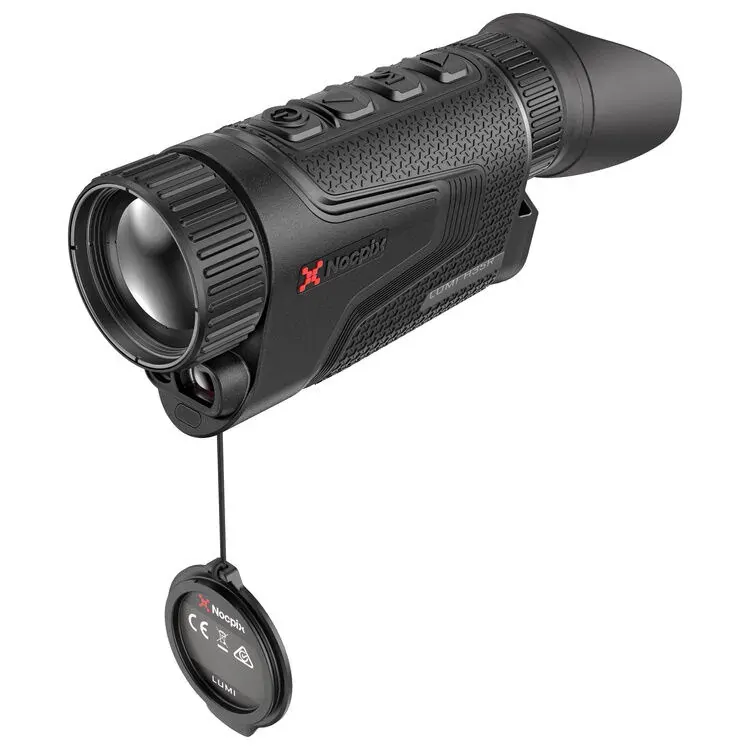

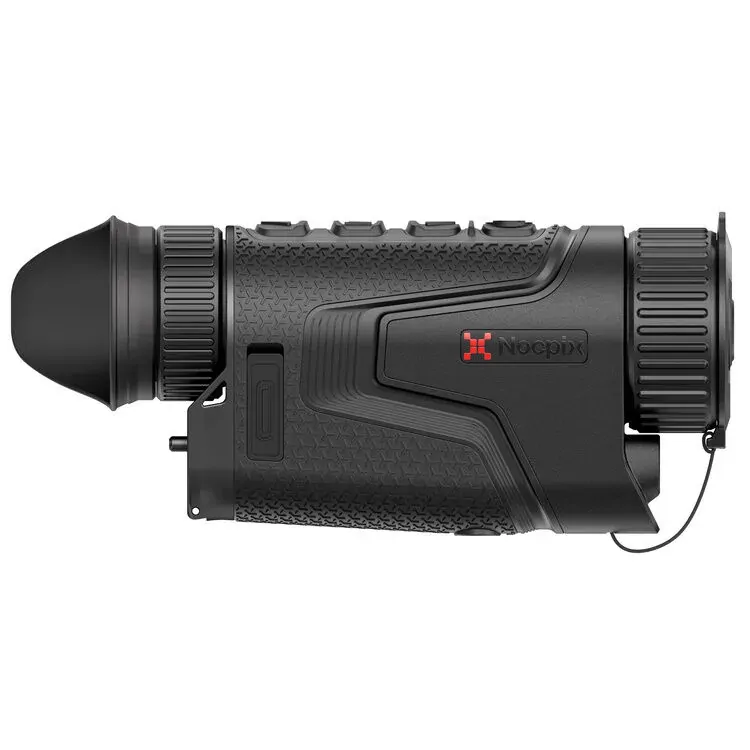

The Nocpix Lumi H35R LRF Thermal Monocular combines compact design with advanced imaging technology, making it one of the most portable yet powerful thermal devices on the market. Despite its pocket-sized build (147mm length, 385g weight), it delivers outstanding image clarity thanks to a self-developed 640px thermal sensor, 12μm pixel pitch, and NETD <18mK sensitivity, ensuring reliable performance even in harsh weather conditions.

The 35mm objective lens paired with a wide 22m × 16m field of view at 100m offers excellent situational awareness, while the 2.5× optical magnification provides clear, detailed target acquisition at both short and long ranges. With a maximum detection range of 1800m, hunters and outdoor professionals can confidently spot distant heat signatures.

Equipped with a crisp 1024×768 AMOLED display, the Lumi H35R delivers sharp visuals enhanced by Reality+ AI imaging algorithms for superior noise reduction and contrast. Designed for versatility, it includes an integrated 800m laser rangefinder (LRF) for accurate distance measurement, making it ideal for hunting, tactical, and surveillance use.

Powered by a replaceable 18650 battery, the Lumi H35R offers field-ready convenience with quick and reliable power replacement. Rated IP67 for dust and water resistance, and supported by photo, video, and audio recording with 32GB memory, the Lumi H35R lives up to its reputation as mini but mighty — offering professional-grade performance in a compact package.

KEY FEATURES

Optics & Imaging

• Sensor: 640px thermal, 12μm pixel pitch
• NETD: <18mK (high sensitivity)
• Objective Lens: 35mm
• Optical Magnification: 2.5×
• Field of View: 22m × 16m @100m
• Angular FOV: 12.5° × 9.4°
• Maximum Detection Range: 1800m
• Display: 1024×768 AMOLED

Power & Battery

• Battery Type: Replaceable 18650
• Runtime: Field-replaceable convenience

Design & Durability

• Dimensions: 147mm length
• Weight: 385g (lightweight, pocket-sized)
• Protection: IP67 dustproof & waterproof rating

Features

• Integrated LRF: 800m range (fast, accurate distance measurement)
• Reality+ AI Algorithm: Enhanced clarity & noise reduction
• Recording: Photo, video, and audio capture with 32GB storage
• Silent Operation: Noise-free buttons for discreet use
