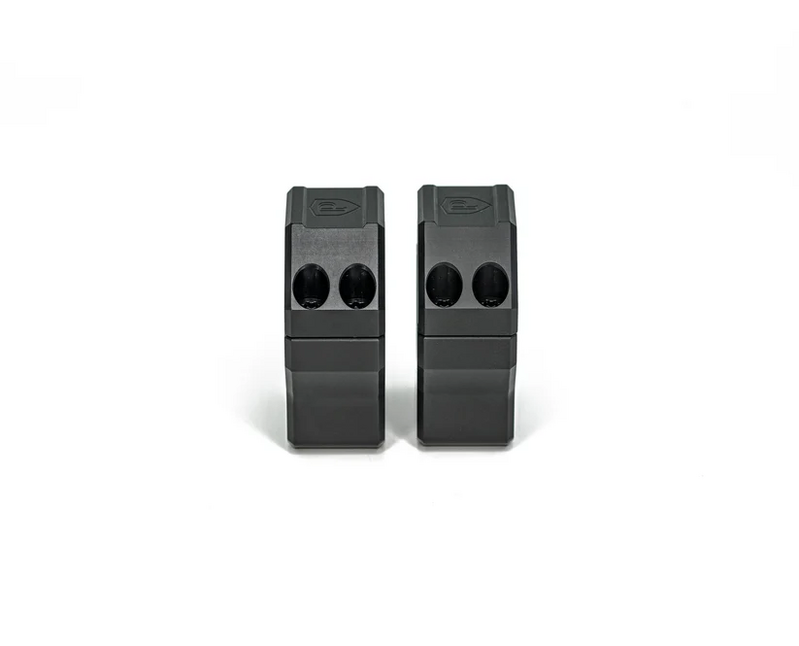

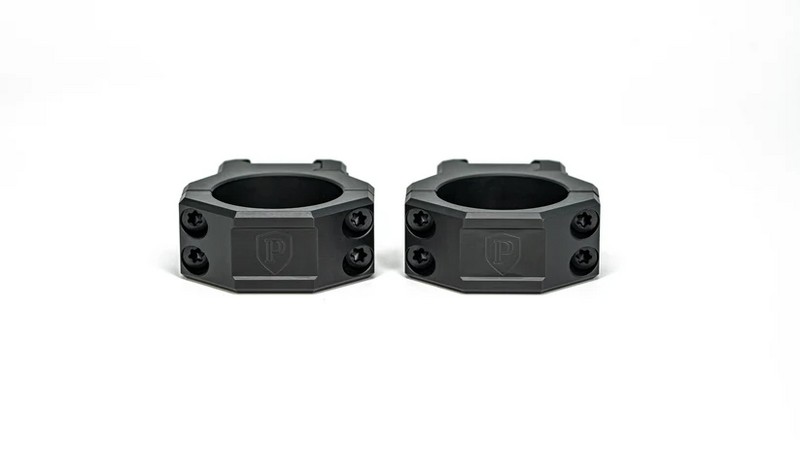

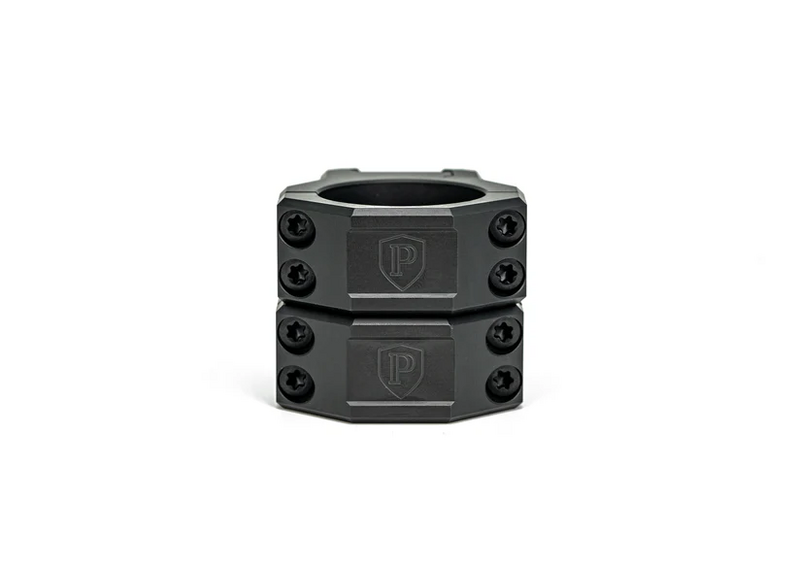

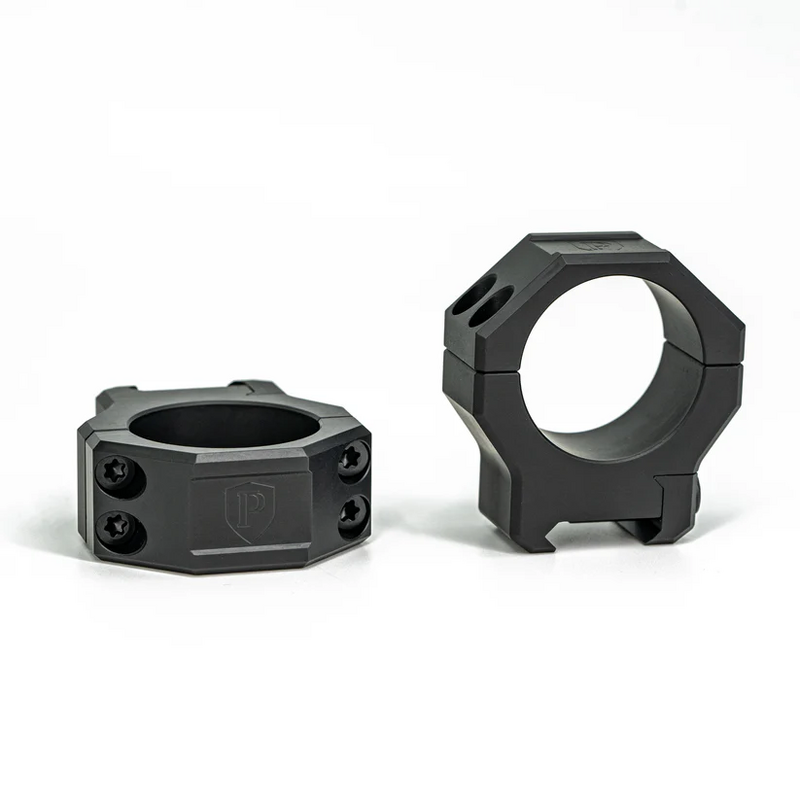

The Porter Machine Works Ring Set, available in sizes ranging from 35mm to 38mm, is engineered for exceptional performance and durability. Crafted from high-strength 7075-T651 aluminum and precision CNC machined, these rings are designed to withstand rigorous use and provide a reliable mounting solution for your optics. The anodized black finish adds a layer of corrosion resistance, ensuring that these rings perform well in diverse environments. The set features a side clamp that utilizes a T20 Torx driver for a secure grip with 40 in-lb (4.5 Nm) of torque, while the top caps, also fastened with a T20 Torx driver, require 17-25 in-lb (1.9 - 2.8 Nm) of torque for a stable and accurate hold.

KEY FEATURES

Material: 7075-T651 Aluminum

Finish: Anodized Black

Compatibility: MIL-STD 1913 Picatinny Rails

Clamp Type: Side Clamp with T20 Torx Driver

Side Clamp Torque: 40 in-lb (4.5 Nm)

Top Cap Torque: 17-25 in-lb (1.9 - 2.8 Nm)

Available Diameters: 30mm, 34mm, 35mm, 36mm

Available Heights: 23mm, 28mm, 33mm, 38mm
