What reloading press thread size and shellholder do I need to use the RCBS MatchMaster Duo Die Set .308 Winchester?

The RCBS MatchMaster Duo set features a standard 7/8"-14 thread pitch, making it compatible with the majority of standard single-stage and turret reloading presses available on the Australian market. For proper operation with .308 Winchester brass, it specifically requires an RCBS Shellholder #3, which is sold separately.

Does this Duo set require neck bushings, and how does it size the brass compared to traditional match sets?

Unlike traditional MatchMaster sets that rely on individual neck-sizing bushings, the Duo set uses a full-length non-bushing sizing die to size the entire cartridge case back to factory-standard dimensions in one straightforward step. It pairs this with a MatchMaster micrometer seating die, making it ideal for handloaders who want match-grade ammunition consistency without the complexity of selecting separate neck bushings.

Are there any Australian electrical or safety compliance certifications required for this RCBS reloading tool?

No Australian electrical or SAA/RCM safety certifications are required because the RCBS MatchMaster Duo is a purely mechanical, manually operated handloading tool with no electrical power requirements. It is designed for permanent installation on a stationary workshop reloading bench in your shed or outback workshop.

308 Reloading Dies - RCBS R15504 Matchmaster

Overview

The RCBS MatchMaster Duo 2-Die Set .308 Winchester (Model R15504) is a premium, purely mechanical reloading tool engineered for handloaders seeking match-grade accuracy without the operational complexity of neck bushing selection. Weighing 1.4 lbs, this set is built from highly polished, rugged tool steel designed for stationary bench installation. It features standard 7/8"-14 interface threading, making it directly compatible with the majority of standard single-stage and turret reloading presses used by Australian shooters. Because this tool operates without electrical components, it requires no external power source or SAA/RCM certifications.

Key Features

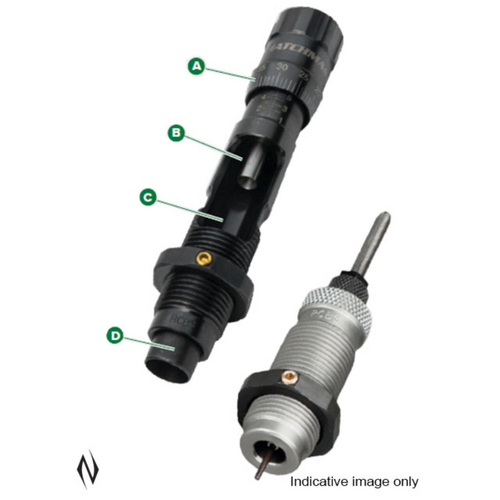

Duo Configuration: Pairs a standard, non-bushing full-length sizing die with a premium micrometer-adjustable seating die to simplify the reloading workflow.
Micrometer Seating Die: Features a highly precise, repeatable micrometer dial on top of the die for incremental seating depth adjustments.
Top-Load Bullet Window: The seating die incorporates a convenient side-loading bullet window, allowing the bullet to self-align perfectly before the ram is raised.
No Bushings Required: Sizes the case neck and body in one straightforward operation, eliminating the need to source and swap individual neck-tension bushings.
Complete Full-Length Sizing: Sized to return bottleneck .308 Winchester cases back to factory-standard dimensions for reliable chambering in any standard rifle chamber.

Product Specifications

Model Number: R15504 (often listed as 15504)
Calibre Compatibility: .308 Winchester (7.62x51mm NATO)
Weight: 1.4 lbs (approximately 0.635 kg)
Interface Threading: 7/8"-14 thread pitch
Shellholder Compatibility: Requires an RCBS Shellholder #3 (sold separately)
Power Requirements: None (purely mechanical)
Lubrication: Case lubrication is strictly required during the sizing process

Who is the Rcbs 308 Win Matchmaster Duo Die Set for?

Competitive F-Class and PRS precision rifle shooters — requires a 7/8"-14 thread pitch die set that integrates a micrometer seating die to achieve highly precise, repeatable bullet seating depths for .308 Winchester cartridges, maximizing ammunition consistency for long-range targets.
Handloaders seeking match-grade ammunition consistency without neck-bushing selection — benefits from a 1.4 lbs two-die system that combines full-length sizing and micrometer bullet seating in a simplified, non-bushing workflow, streamlining the bench reloading process while maintaining tight tolerances.

Less suitable for: handloaders who prefer only resizing the neck of fire-formed brass to perfectly fit custom-chambered bolt-action rifles, who instead require a specialized neck-sizing-only die or a bushing-style die set to control precise neck tension.

SKU	RC39188LP
Model #	R15504
Brand	Rcbs
Shipping Weight	1.0000kg
