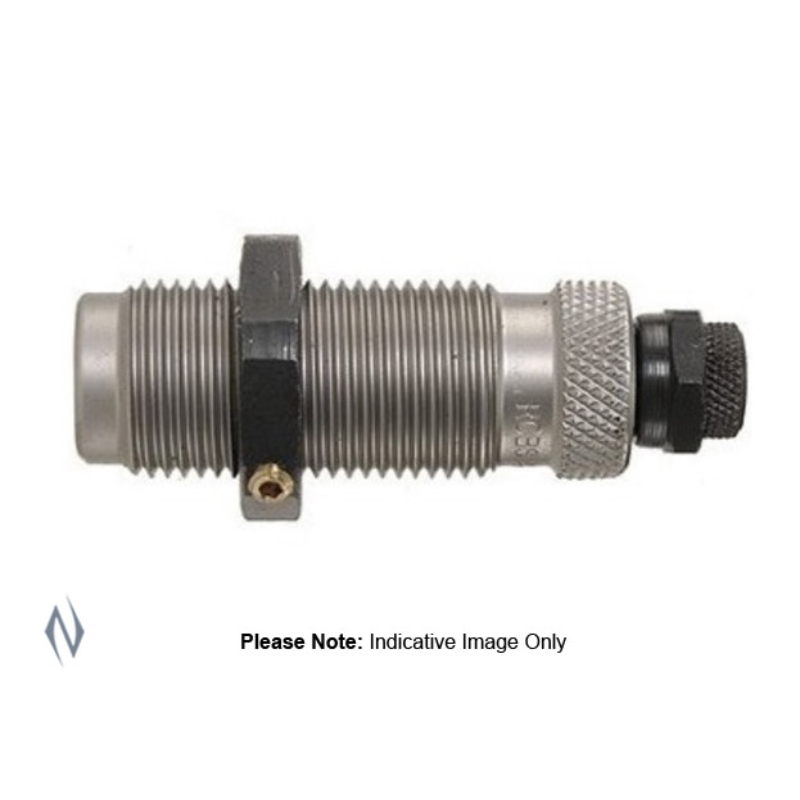

The RCBS 9mm Luger, 9x21mm Taper Crimp Seater Die is a precision-machined, hardened steel reloading tool designed for metallic cartridge handloading. Operating as a dual-function die, it performs bullet seating and taper crimping in a single press stroke. This mechanical accessory is engineered specifically for straight-walled, rimless pistol cartridges, ensuring highly reliable chambering and proper headspace preservation for semi-automatic firearms. Because it is a completely manual mechanical tool, it requires no electrical power or compliance certifications, making it fully compatible with reloading benches throughout Australia.

Key Features

• Dual-Function Operation: Seats the bullet to a precise, user-adjusted depth and applies a uniform taper crimp in a single stroke of the press.
• Taper Crimp Design: Applies radial pressure to taper the case mouth instead of rolling it inward, preserving the sharp case mouth edge required for correct headspacing in autoloading handguns.
• Universal Press Compatibility: Features standard 7/8"-14 threading, allowing it to screw directly into the vast majority of single-stage and progressive reloading presses on the market.
• Premium Build Quality: Carefully machined from hardened steel and hand-finished by RCBS for long-term dimensional consistency.
• Convenient Storage: Ships packaged inside a standard plastic RCBS storage box to keep the die protected and organized when not in use.

Product Specifications

• Brand: RCBS
• Model / MPN: 20562 (R20562)
• Calibre Compatibility: 9mm Luger (9x19mm), 9x21mm, and 9x23mm
• Thread Interface: 7/8"-14 threading
• Material: Hardened Steel
• Crimp Style: Taper Crimp
• Power Requirements: None (manual mechanical operation)

Who is the RCBS 9mm Luger 9x21mm Taper Crimp Seater Die for?

• High-volume handloaders reloading for semi-automatic pistols — requires a dedicated 9mm pistol reloading die that can simultaneously seat and taper-crimp 9x19mm Luger cartridges, matching the standard 7/8"-14 thread interface of common single-stage or progressive presses.
• Competitive shooters assembling specialized ammunition — requires the precise tolerances of a specialized 9mm pistol reloading die to process 9x21mm or 9x23mm cartridges to exact depth specifications, ensuring flawless feeding into Match-grade semi-automatic chambers.

Less suitable for: Revolver handloaders using high-recoil rimmed cartridges such as .357 Magnum or .44 Magnum, which require a specialized roll crimp die to prevent bullet jump, or handloaders processing larger case diameters such as .40 S&W and .45 ACP that require distinct calibre-specific dies.
