Which lube-sizers are compatible with the RCBS Lube-A-Matic Sizer .458 (Model R82236)?

This sizing die is specifically designed for use with the RCBS Lube-A-Matic-2 and original Lube-A-Matic bullet sizer and lubricator units. Additionally, it is fully interchangeable with Lyman 450 and 4500 lube sizer systems, making it versatile if you run multiple press setups in your reloading bench.

Can I use this sizing die for jacketed rifle bullets or only cast lead projectiles?

The R82236 is strictly engineered for cast lead bullets only and cannot be used for jacketed rifle projectiles. Attempting to force jacketed bullets through this die will cause severe damage or lock up your press, as jacketed bullets require entirely different sizing pressures and dies.

How does this die handle bullet lube viscosity during hot Australian outback summers or cold mornings?

While the hardened steel die itself has no operating temperature limits, the bullet lubricant used with it can be affected by ambient weather. In cold conditions, you may need an optional heater attachment like the RCBS Lube Heater to soften hard lubes, whereas extreme outback heat can make certain lubes excessively runny during high-volume sizing sessions.

What precision tolerances can I expect when sizing .458-calibre bullets with this die?

The RCBS R82236 features a precision-honed interior that is accurate to within 0.0005 inches. This tight tolerance ensures your cast lead bullets for calibres like .45-70 Government and .458 SOCOM remain perfectly cylindrical while simultaneously lubricating the grease grooves and crimping gas checks in a single stroke.

Bullet Sizing Die - RCBS R82236

RCBS Lube-A-Matic Bullet Sizing Die .458 Overview

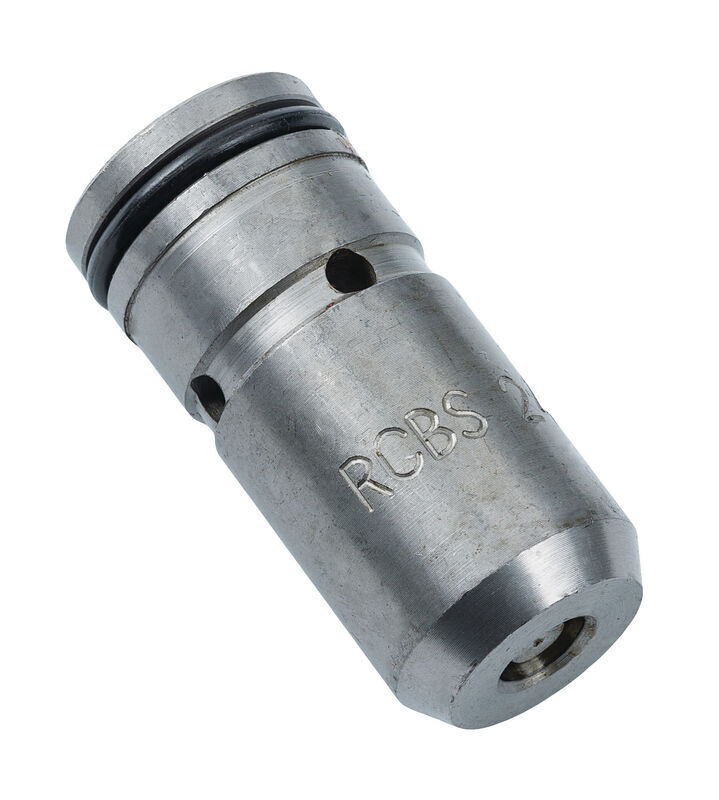

The RCBS Lube-A-Matic Bullet Sizing Die .458 (Model: R82236) is a precision-engineered reloading tool designed for shooters who cast their own lead bullets. This specialized insert die performs three critical preparation steps in a single press stroke: it sizes cast lead bullets down to a highly consistent diameter, injects bullet lubricant directly into the grease grooves, and seats and crimps gas checks. Constructed from hardened steel with a polished, precision-honed interior, it ensures cast projectiles remain perfectly cylindrical and aligned under high pressure. This mechanical die insert is fully compatible with both the RCBS Lube-A-Matic-2 and Lyman 450/4500 sizer/lubricator systems.

Key Features and Applications

Dual-Action Prep: Resizes cast bullets while simultaneously lubricating their grease grooves in a single downward stroke, streamlining the reloading workflow.
Gas Check Crimping: Engineered to seat and crimp gas checks onto the base of cast rifle projectiles, allowing them to withstand higher velocities.
Precision-Honed Interior: Built with a strict internal tolerance of 0.0005 inches to prevent bullet distortion and ensure concentricity.
Hardened Steel Construction: Offers exceptional durability and resistance to wear during high-pressure sizing cycles.
Broad Calibre Target: Ideal for processing cast bullets intended for large-bore calibres, including .45-70 Government, .458 SOCOM, and .458 Winchester Magnum.

Product Specifications

Model/Part Number: R82236 (82236)
Sizing Diameter: .458 inches (11.63 mm)
Sizing Tolerance: Accurate to within 0.0005 inches
Material: Hardened steel
Compatibility: RCBS Lube-A-Matic, RCBS Lube-A-Matic-2, Lyman 450, and Lyman 4500 systems
Operation: Non-powered, purely mechanical hand tool insert

Who is the RCBS Lube-A-Matic Sizer .458 for?

Reloaders loading .45-70 Government cast lead bullets — requires a precise sizing capability that compresses raw cast lead projectiles to a uniform .458-inch (11.63 mm) diameter with a tolerance of 0.0005 inches to guarantee consistent chambering and accuracy.
Shooters casting projectiles for .458 SOCOM and .458 Winchester Magnum — need this bullet sizing die to handle high-velocity rifle loads by reliably crimping gas checks onto the base of .458-inch cast projectiles during the dual-action lubrication and sizing process.

Less suitable for: Shooters loading jacketed rifle projectiles or bullets of other calibres; this bullet sizing die is strictly limited to .458-inch (11.63 mm) cast lead bullets, meaning jacketed rifle bullets or alternative calibres require full-length reloading dies designed for jacketed pressures.

SKU	RC39258LP
Model #	R82236
Brand	Rcbs
Shipping Weight	1.0000kg
