What calibre range is the RCBS Lube Die Decapping Unit R87576 designed for?

This replacement internal decapping rod assembly is built specifically for cartridges ranging from .22 calibre through .25 calibre. For larger calibres above .25, you will need to use a different model, such as the RCBS Heavy Duty Decapping Unit designed for .27 through .45 calibre.

Are there any Australian electrical compliance requirements or plug styles needed for this unit?

No, because this is a purely mechanical reloading die component with no electrical parts, standard Australian electrical certifications like SAA approvals, RCM compliance, and 240V plug requirements are entirely inapplicable.

Can I use this standard decapping unit to process military-grade crimped primer pockets?

RCBS categorizes this specific unit for light-duty decapping and directs users away from it when processing heavy, military-grade crimped primer pockets. For tough military crimps, you should instead use their specialized Heavy-Duty Decapping Die and corresponding components.

What is the primary function of the RCBS R87576 unit during reloading?

The R87576 functions as an in-line replacement for damaged, bent, or worn-out decapping rods within standard RCBS sizing or lube dies. It allows you to deprime spent primers and simultaneously expand the case neck to the exact diameter required for seating a new bullet.

Decapping Unit - RCBS R87576

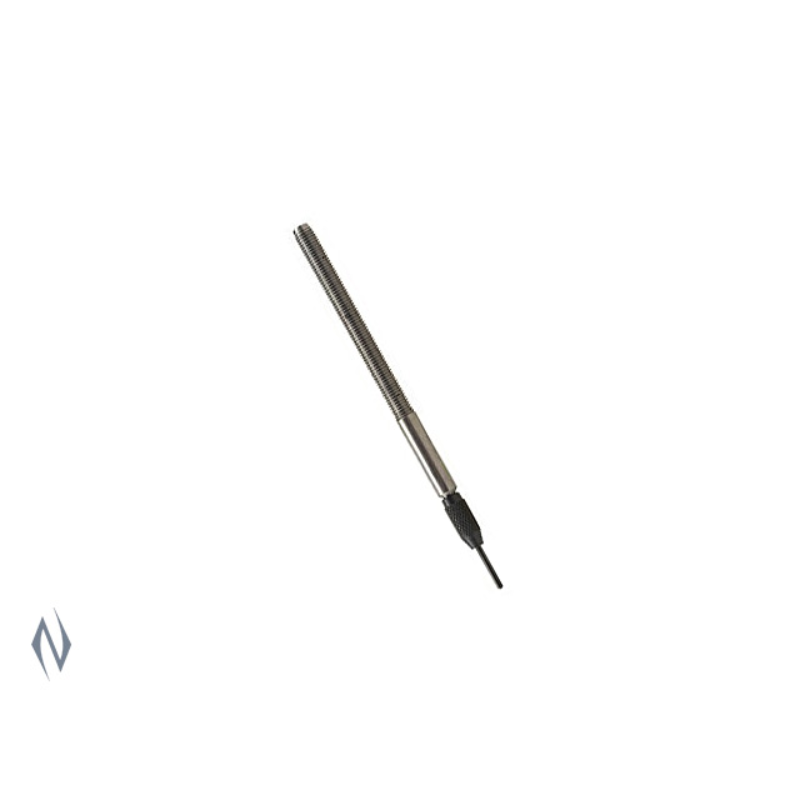

The RCBS Lube Die Decapping Unit .22 Thru .25 Cal (Manufacturer Model: R87576) is a factory-replacement internal expander-decapping assembly designed for standard RCBS reloading dies. Constructed from steel, this compact mechanical handloading component replaces damaged, bent, or worn-out decapping rods. It allows reloaders to deprime spent primers and expand case necks in a single stroke, making it highly efficient for progressive press operations where lubing and decapping occur simultaneously.

Key Features

Calibre-Specific Processing: Designed to process rifle cartridges ranging strictly from .22 calibre through .25 calibre.
Complete Assembly: Includes a threaded steel expander rod, expander ball, and a decapping pin to decap and expand case necks in one step.
Die Compatibility: Built to fit standard RCBS reloading dies utilizing the standard 7/8"-14 thread die body format.
Mechanical Durability: Solid steel construction weighing under 100 grams, requiring no electrical power or external connections.

Specifications

Model Number: R87576 (87576)
Product Type: Replacement Expander-Decapping Assembly / Rod
Calibre Compatibility: .22 calibre to .25 calibre
Thread Interface: 7/8"-14 standard die bodies
Material: Threaded steel
Weight: Under 100 grams

Who is the Rcbs Lube Die Decapping Unit .22 Thru .25 Cal for?

Rifle handloaders — requires this reloading die decapping unit to deprime spent primers and expand case necks specifically for cartridges within the .22 calibre through .25 calibre range.
Reloaders replacing damaged internal components — provides a direct factory-replacement steel decapping rod to restore standard RCBS 7/8"-14 thread dies to working order when processing cases from .22 calibre through .25 calibre.

Less suitable for: processing cartridges larger than .25 calibre, which require a larger-format replacement assembly such as a heavy-duty decapping unit rated for .27 through .45 calibre, or for processing military-grade crimped primer pockets, which require a specialized heavy-duty decapping die to prevent component damage.

SKU	RC39263LP
Model #	R87576
Brand	Rcbs
Shipping Weight	1.0000kg
