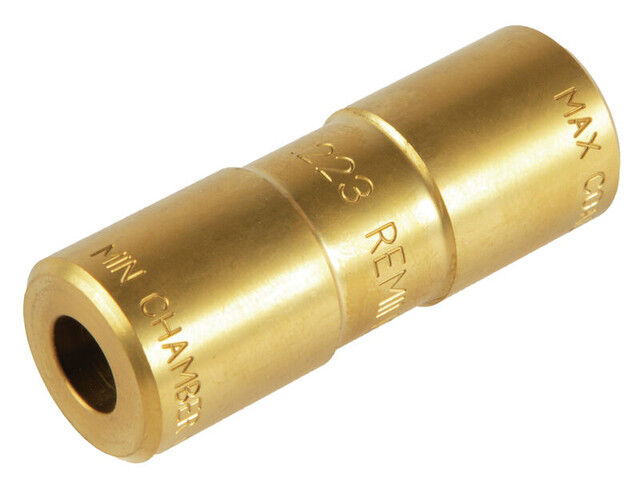

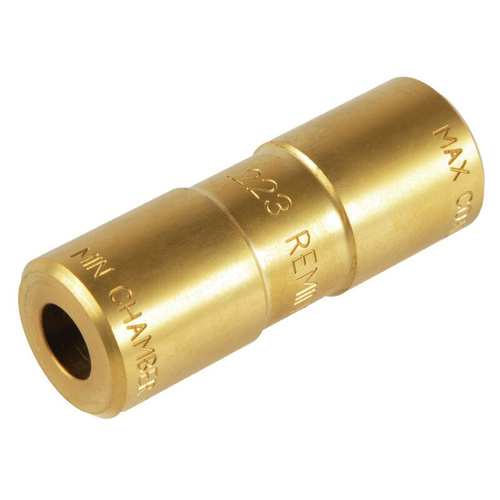

The RCBS Chamber/Case Length Gauge .223 Rem (Model 88280) is a precision-machined diagnostic tool designed to verify the chambering tolerances and case dimensions of handloaded ammunition. Built specifically for the reloading bench, this heavy-duty steel tool allows handloaders to conduct rapid quality-control checks on finished cartridges before they are used in the field or at the range. By inserting a loaded round or resized brass into the non-adjustable cylinder, users can instantly determine if the cartridge conforms to standard dimensions.

Operating entirely as a mechanical, non-electronic instrument, this gauge does not require batteries, external power, or Australian SAA/RCM electrical safety certifications. It serves as a physical go/no-go indicator that simultaneously checks case/body diameter, cartridge overall length (COAL), and headspace. If the cartridge sits perfectly flush with the top of the gauge, it confirms that the brass does not require trimming and complies with SAAMI safety specifications for reliable chambering.

Key Features

• Precision-Machined Steel: Manufactured from heavy-duty steel as a solid, one-piece cylinder to maintain strict dimensional accuracy over repeated uses.
• Multi-Parameter Diagnosis: Verifies case and body diameter, overall cartridge length (COAL), and headspace tolerances in a single step.
• Clear Calibre Identification: Features highly visible, laser-engraved markings indicating compatibility with .223 Remington and 5.56x45mm NATO cartridges.
• No Power Required: A completely analogue, mechanical diagnostic tool with no electrical components or wiring.

Product Specifications

• Brand: RCBS
• Model Number: 88280 (R88280)
• Calibre Compatibility: .223 Remington and 5.56x45mm NATO
• Material: Precision-machined steel
• Design: One-piece, non-adjustable cylinder
• Operating Method: Physical pass/fail clearance check

Who is the Rcbs Chamber Case Length Gauge .223 Rem for?

• Precision handloaders of .223 Remington and 5.56x45mm NATO ammunition — requires a rapid, single-step physical check calibrated specifically to 5.56x45mm dimensions to confirm that handloaded cartridges will chamber safely and meet SAAMI specifications.

Less suitable for: Reloaders working with alternative calibres, as this non-adjustable gauge is restricted to a single chambering and requires a separate dedicated gauge model for checking other sizes such as .308 Win, .300 BLK, or 9mm. Additionally, it is less suitable for handloaders requiring precise numerical measurements of shoulder bump or case variance down to the thousandth of an inch, which requires a dial or digital caliper paired with a dedicated headspace comparator set.
