Can I use the RCBS Precision Mic 7mm Rem Mag for other similar cartridges like the 7mm PRC or 7mm-08 Remington?

No, this tool is strictly engineered and calibrated specifically for the 7mm Remington Magnum cartridge. Attempting to use it for other 7mm variants will result in inaccurate headspace and bullet seating measurements. You will need separate specific Precision Mic tools if you reload multiple calibres.

Does this mechanical reloading tool require any Australian electrical certifications or a specific power supply for operation?

No, the RCBS Precision Mic is an entirely mechanical, non-powered precision steel tool requiring no electricity, batteries, or 240V power. Because it lacks electrical components, it does not require Australian electrical compliance certifications such as SAA or RCM and is fully legal for use across all Australian states.

How precisely can I measure headspace and bullet seating depth with this tool?

The RCBS Precision Mic resolves measurements down to precise 0.001-inch increments. It measures cartridge headspace from the base to the datum line on the case shoulder against SAAMI standards, and allows you to accurately determine bullet jump to the rifling lands for optimized long-range accuracy.

How should I maintain and store this steel tool to protect it from corrosion in fluctuating Australian workshop conditions?

Because the tool is constructed from precision steel, it should be kept clean, dry, and lightly lubricated with a quality gun oil or rust preventive when stored. It is also recommended to conduct measurements at a consistent ambient room temperature to prevent any metal thermal expansion from affecting the 0.001-inch accuracy.

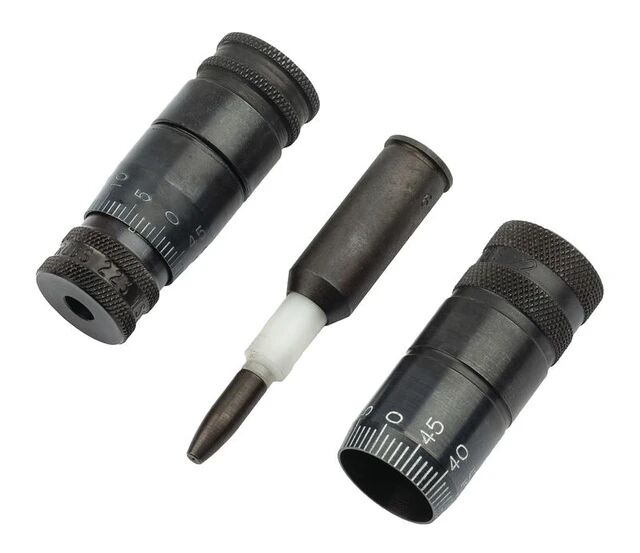

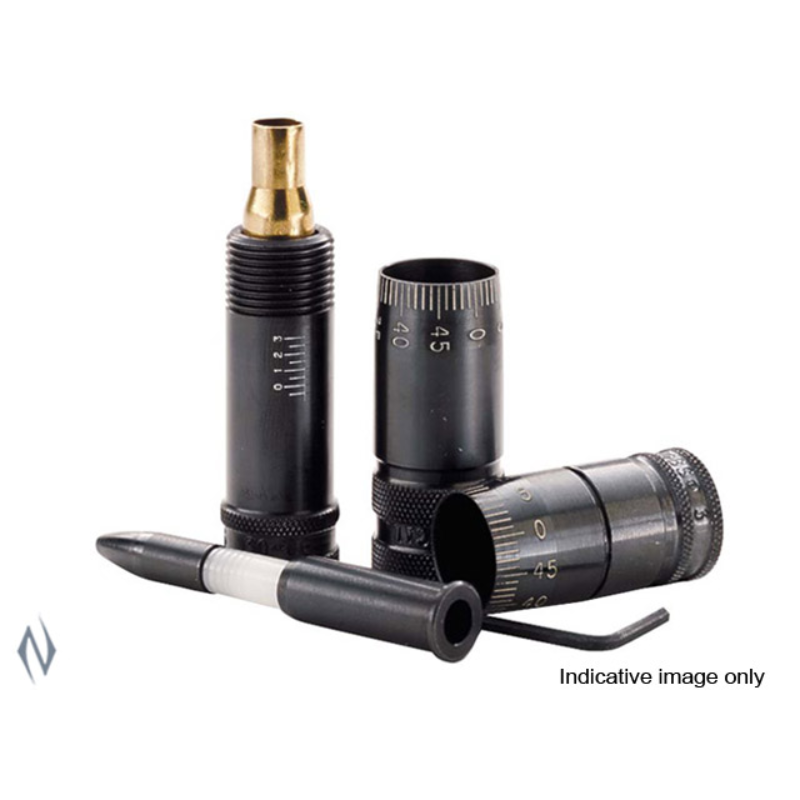

7mm Rem Mag Reloading Gauge - RCBS R88319

The RCBS Precision Mic 7mm Rem Mag (MPN: 88319) is a dedicated, purely mechanical reloading cartridge headspace gauge engineered specifically for 7mm Remington Magnum brass. It allows handloaders to measure chamber headspace from the cartridge base to the shoulder datum line and determine freebore bullet jump in increments of 0.001 inch. By eliminating shoulder-bump guesswork during full-length resizing, this benchtop steel tool helps prevent the brass work-hardening and case-head separation common to belted magnum calibres.

Key Features

Headspace Verification: Measures case shoulder setback to 0.001 inch against standard tolerances, allowing precise full-length sizing die calibration.
Bullet Seating Depth Gauge: Includes a dedicated dummy tool to measure the exact distance to the rifle's rifling lands, facilitating optimal bullet jump adjustment.
Belted Brass Longevity: Minimises unnecessary shoulder setback on 7mm Rem Mag cases to extend brass life and reduce case-head separation risks.
Purely Mechanical Operation: Requires no electrical power, batteries, or mains connections for full functionality on the reloading bench.

Specifications

Calibre Compatibility: 7mm Remington Magnum (7mm Rem Mag) only
Measurement Precision: 0.001 inch
Manufacturer Part Number (MPN): 88319 / R88319
Power Requirements: None (manual steel gauging tool)
Capacity: Single cartridge manual measurement

Who is the RCBS Precision Mic 7mm Rem Mag for?

7mm Remington Magnum precision rifle reloaders — Measures cartridge headspace and shoulder bump in precise 0.001 inch increments to fine-tune sizing dies specifically for 7mm Remington Magnum chambers.
Long-range target shooters shooting 7mm Rem Mag — Uses the included seating depth gauge to determine chamber throat contact within 0.001 inch, establishing the exact bullet jump required for maximum accuracy in 7mm Remington Magnum rifles.

Less suitable for: Reloading calibres other than 7mm Remington Magnum (which require a dedicated calibre-specific headspace gauge), or high-volume progressive reloading setups requiring automated batch sorting (where standalone drop gauges or digital sorting systems are better suited).

SKU	RC39521LP
Model #	R88319
Brand	Rcbs
Shipping Weight	1.0000kg
