Will the RCBS Trimmer Carbide Cutter Head Part Number 90250 fit my Frankford Arsenal Platinum Series Case Trim and Prep Center?

Yes, many reloaders purchase this RCBS carbide cutter head as a popular drop-in upgrade for the Frankford Arsenal Platinum Series Case Trim and Prep Center because it features the matching 3-8"-24 thread pitch. It provides a significant durability upgrade over standard steel cutters for high-volume brass processing.

Can I use the RCBS 90250 carbide cutter head to trim ultra-small calibers like 17 or 20 caliber brass?

No, manufacturer specifications state that ultra-small sub-caliber sizes from 17 to 20 caliber require specialized cutter systems and are not compatible with this standard head. Additionally, heavy-duty .50 BMG cases require a separate larger-diameter replacement cutter head, specifically RCBS Part Number 9364.

Does this carbide cutter head perform inside and outside chamfering at the same time as trimming?

No, the RCBS 90250 is a flat-trim cutter head designed solely to cut brass cases down to precise SAMMI/CIP specification lengths. If you require a single-pass operation that trims, chamfers, and deburrs simultaneously, you will need to look at the RCBS Trim Pro 3-Way Cutter line instead.

Is the RCBS Trim Pro-2 Power Case Trimmer compatible with this cutter head in Australian workshops running on 240V power?

Yes, the 3/8"-24 threaded 90250 cutter head works seamlessly on both manual and motorized RCBS units including the Trim Pro-2 Power Case Trimmer. While the cutting head itself is a passive mechanical accessory requiring no electrical power, any motorized base unit used in Australia must feature the appropriate 240V AU-plug configuration.

Carbide Cutter Head - RCBS R90250

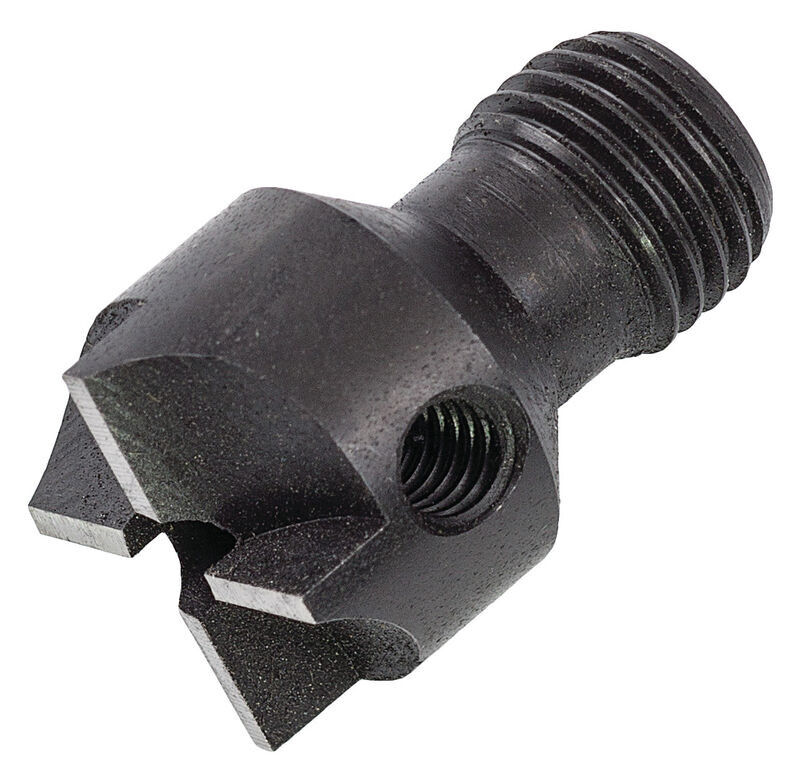

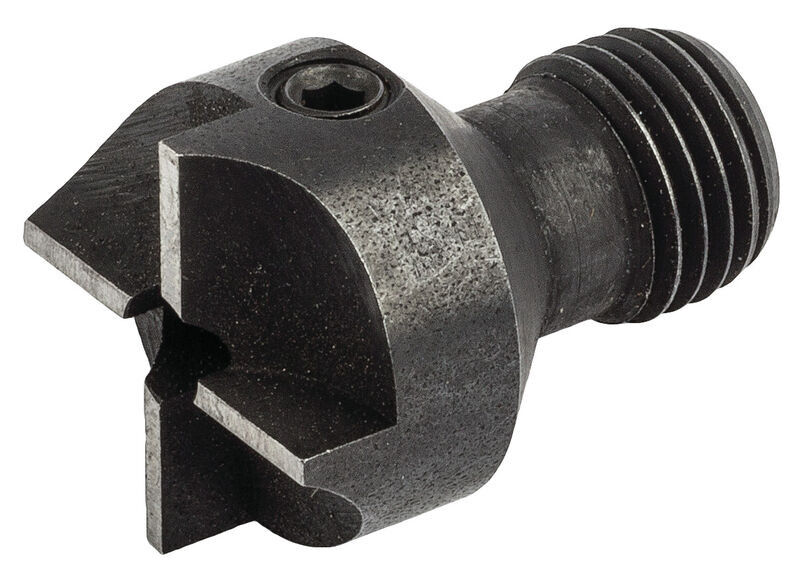

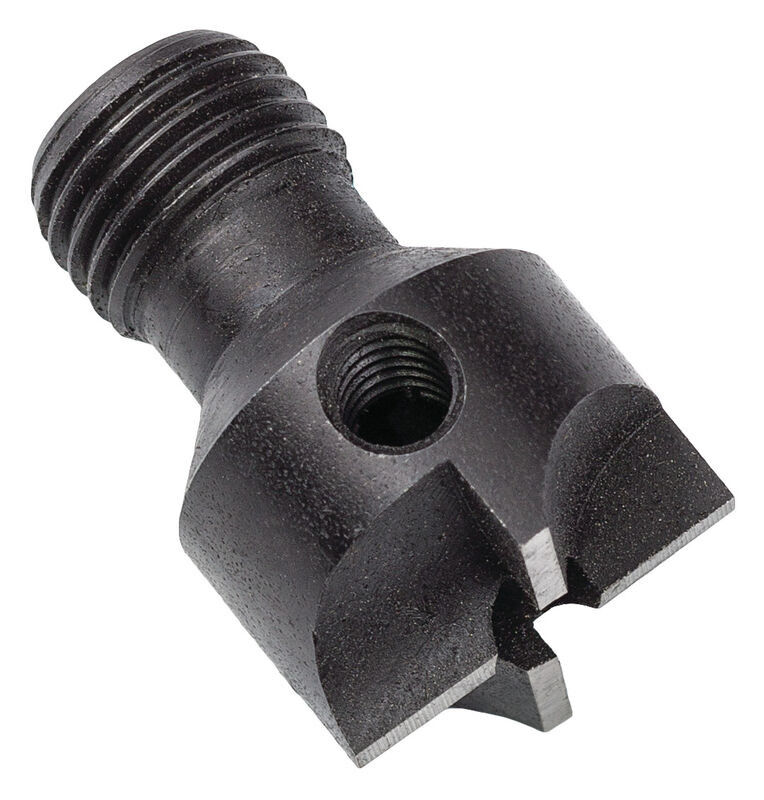

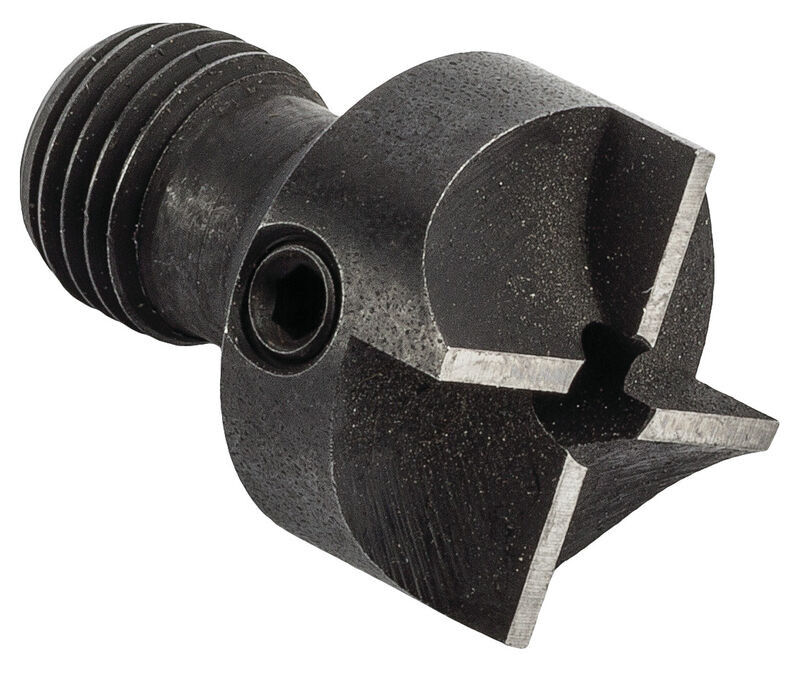

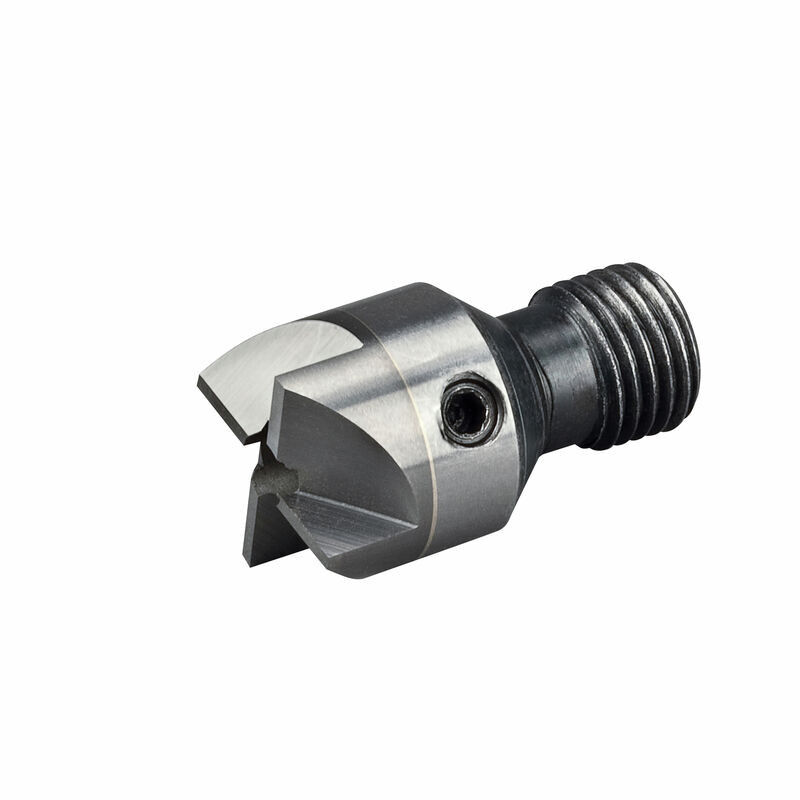

The RCBS Trimmer Carbide Cutter Head (Manufacturer Part Number 90250) is a premium replacement and upgrade component designed for the case preparation stage of metallic ammunition reloading. It is engineered to replace standard tool-steel cutter heads on manual or motorized case trimmers, providing a clean, flat-trim cut that restores fired brass cartridge cases to precise, safe specifications. Constructed with a premium steel body and high-grade carbide-tipped blades, this cutter head delivers clean, burr-free case mouths with significantly less physical effort and rotational resistance.

Key Product Features

Extremely Long Service Life: The high-grade carbide-tipped cutting teeth are engineered to retain their sharp edge for a lifetime of use, eliminating the frequent degradation and dulling associated with standard tool-steel cutters.
Cross-Brand Compatibility: Featuring a standard 3/8"-24 thread pitch, this cutter head serves as a direct premium upgrade for popular non-RCBS equipment, most notably the Frankford Arsenal Platinum Series Case Trim & Prep Center.
Smooth Mechanical Operation: At a lightweight 0.04 lbs (approximately 18 grams), this passive mechanical accessory minimizes rotational drag, making the trimming process faster and smoother whether operated by hand or under power.
Universal Power Compatibility: While completely passive and requiring no electrical power or SAA/RCM certifications itself, the cutter head functions seamlessly on both manual rotary trimmers and motorized 240V power case trimmers.

Product Specifications:

Manufacturer Part Number: 90250
Thread Pitch: 3/8"-24 threads
Weight: 0.04 lbs (18 grams)
Body Material: Premium steel
Blade Material: High-grade tungsten carbide
Native Compatibility: RCBS Trim Pro, Trim Pro-2, and RCBS Rotary Case Trimmers

Who is the Rcbs Trimmer Carbide Cutter Head for?

High-volume rifle reloaders — requiring a wear-resistant case trimmer carbide cutter head that retains its cutting edge over thousands of cycles, utilizing its lightweight 0.04 lbs design to reduce rotational drag and user fatigue during intensive brass preparation sessions.
Frankford Arsenal Prep Center owners — looking to replace their factory setup with an ultra-durable case trimmer carbide cutter head that integrates directly via the 3/8"-24 thread pitch to deliver cleaner, smoother flat-trim cuts on brass case mouths.

Less suitable for: reloaders processing ultra-small 17 to 20 caliber cartridge cases which require specialized sub-caliber cutter systems, or heavy-duty .50 BMG cases that require a dedicated larger-diameter replacement cutter head; it is also unsuitable for those seeking to trim, chamfer, and deburr brass in a single motion, who instead require a multi-angle 3-way cutter system.

SKU	RC39280LP
Model #	R90250
Brand	Rcbs
Shipping Weight	1.0000kg
