Which RCBS case trimmers are compatible with the R90279 3-way cutter assembly?

The RCBS Trim Pro 3-Way Cutter Complete Assembly is designed to thread directly onto the cutter shafts of RCBS Rotary Case Trimmers, Trim Pro Manual Trimmers, and Trim Pro Power Trimmers. Because it is a mechanical accessory, it requires no external power source or Australian electrical certifications of its own, though any motorized base unit used with it will comply with local standards.

Can I use this 6mm cutter assembly on other cartridge calibers?

This specific SKU (R90279) is pre-configured and shipped with a pilot tailored strictly for 6mm (.243 caliber) cartridge cases. While the main cutter head can potentially be adapted to other calibers, doing so requires purchasing and installing separate caliber-specific pilots such as .22 or .30 caliber.

How precise is the adjustment mechanism for the internal chamfer and exterior deburr?

The internal bevel and chamfer adjustments are exceptionally precise, changing at a rate of 0.004 inches per 1-1/8 turns of the internal adjustment screw. This three-blade configuration trims the case to length while simultaneously chamfering the inside and deburring the outside mouth in a single operation.

Are there any specific brass preparation steps required before using this 3-way cutter?

Yes, because the chamfer and deburr blades reference the case mouth, variations in brass neck thickness between different brands like Lapua and Norma will affect the final dimensions. To maintain consistency during your bench reloading sessions, you must sort your 6mm brass by brand or resize and mandrel-expand the necks prior to trimming.

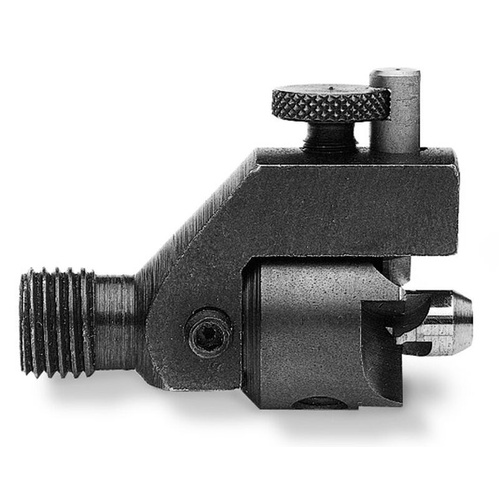

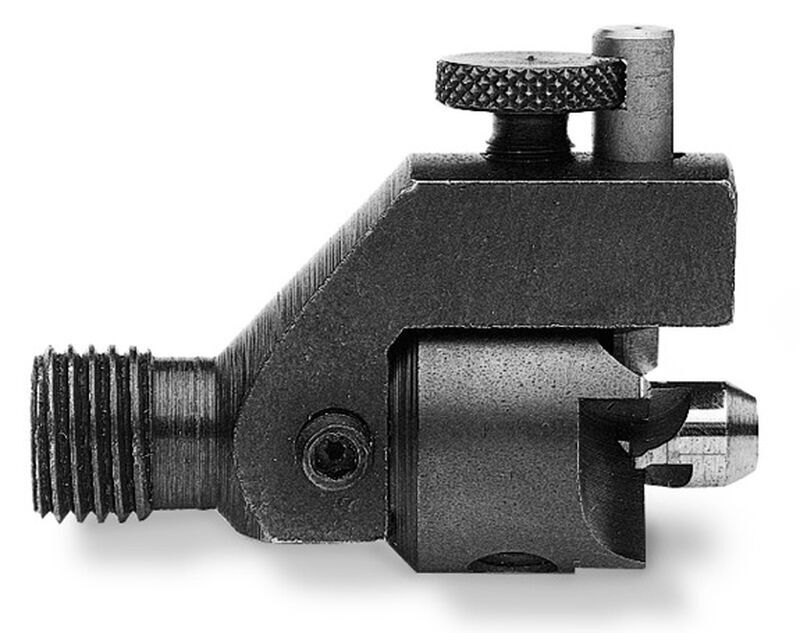

RCBS 3 Way Cutter - RCBS R90279

The RCBS Trim Pro 3-Way Cutter Complete Assembly 6mm Caliber is a highly specialized mechanical case preparation accessory designed to streamline the brass reloading process. Engineered to thread directly onto the cutter shafts of RCBS Rotary Case Trimmers, Trim Pro Manual Trimmers, and Trim Pro Power Trimmers, this assembly combines three separate brass-prep operations into a single step. Utilizing a unique three-blade configuration, it trims brass to length, cuts a precise inside chamfer for smoother bullet seating, and deburrs the outside case mouth simultaneously, significantly reducing case preparation time.

Key Features

Three-in-One Case Prep: Trims, chamfers, and deburrs the brass case mouth in a single stroke or handle turn.
6mm Calibration: Features a built-in pilot sized specifically to guide 6mm (.243 caliber) case mouths.
Precise Adjustment: Features an internal adjustment screw that changes the inside bevel depth at a rate of 0.004 inches (approximately 0.1 mm) per 1-1/8 turns.
System Compatibility: Direct fit for RCBS Rotary, Trim Pro Manual, and Trim Pro Power trimmer shafts.
Purely Mechanical: Requires no electrical power of its own, functioning via manual power or through the motor of a compatible power trimmer.

Specifications

Model/Part Number: R90279 (also referenced as 90279)
Caliber Compatibility: 6mm (.243 caliber)
Adjustment Rate: 0.004 inches (approx. 0.1 mm) per 1-1/8 turns
Shipping Weight: 0.190 lbs to 0.255 lbs (approximately 86g to 115g)
Power Requirements: None (mechanical tool accessory)

Who is the Rcbs Trim Pro 3 Way Cutter Complete Assy 6mm Cal for?

High-volume centerfire rifle reloaders — requires a three-way case trimmer to eliminate repetitive manual steps when preparing 6mm (.243 caliber) cartridge cases by combining trimming, inside chamfering, and outside deburring into one action with a precise adjustment rate of 0.004 inches per 1-1/8 turns.
Benchrest and precision shooters — streamlines brass preparation time by utilizing a dedicated 6mm case trimmer assembly that provides highly repeatable bevel adjustments of 0.004 inches per 1-1/8 turns to ensure consistent case mouth tension and bullet seating.

Less suitable for: Reloaders processing multiple different cartridge sizes, as this tool's caliber compatibility is limited strictly to 6mm unless a separate caliber-specific pilot is installed; users requiring multi-caliber versatility out of the box would be better served by a universal manual case trimmer with interchangeable pilot sets.

SKU	RC39282LP
Model #	R90279
Brand	Rcbs
Shipping Weight	1.0000kg
