What specific tool is the RCBS Hand Case Neck Turner Pilot .30 Cal compatible with?

This pilot is exclusively designed to be used with the RCBS Hand Case Neck Turner tool, which is sold separately. It functions as an internal mandrel that slots inside the case mouth to center the brass while the tool shaves excess material.

Is this pilot adjustable for calibres other than .30 calibre?

No, this model is built strictly for .30 calibre cases such as the .308 Winchester and .30-06 Springfield. If you are reloading different dimensions, you will need to switch to a different calibre-specific pilot from the RCBS lineup.

Are there any electrical safety certifications or 240V plug requirements for use in Australia?

No electrical compliance or SAA/RCM certifications are required for this product. Because the RCBS Hand Case Neck Turner Pilot is a purely manual, non-powered precision steel accessory, electrical standards and Australian three-pin plug compatibility do not apply.

How should I maintain this precision steel pilot in my reloading room?

As a precision-machined steel tool used in dry indoor reloading environments, it should be kept clean and lightly lubricated to prevent corrosion. Proper care ensures the pilot maintains its tight tolerances for achieving consistent .0005-inch increment adjustments.

30 Cal Neck Turner Pilot - RCBS R90413

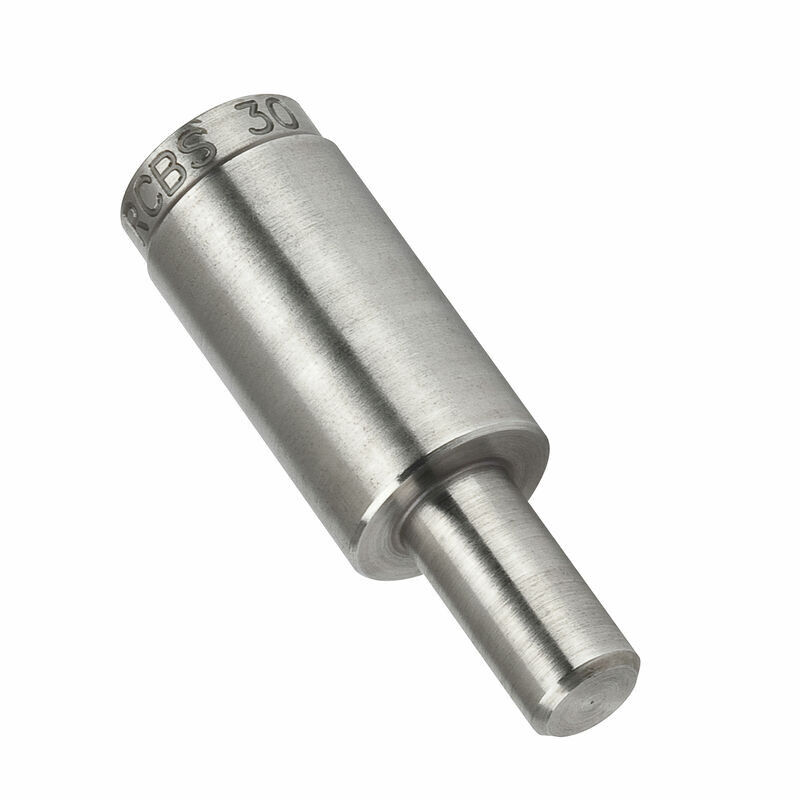

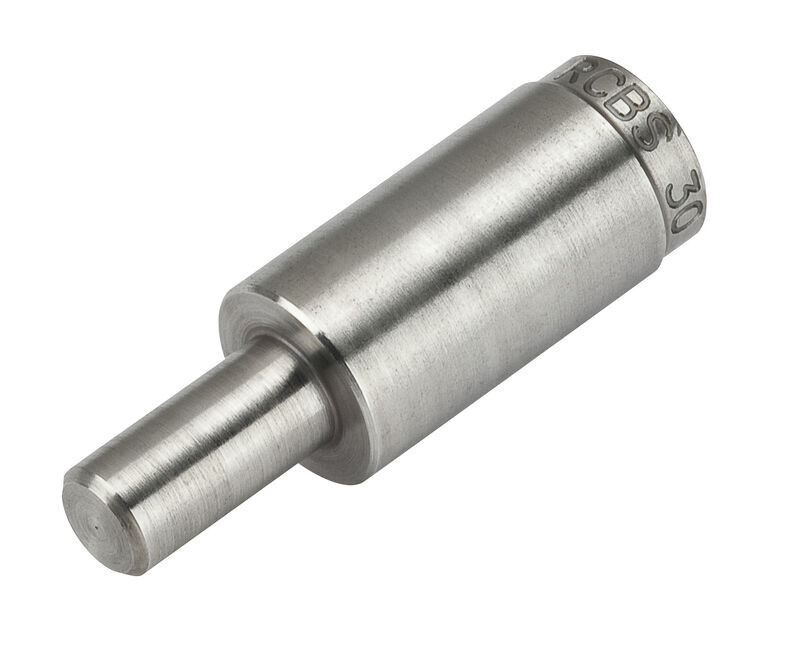

The RCBS Hand Case Neck Turner Pilot .30 Cal (Model: 90413) is a precision-machined steel guide peg designed specifically for reloading cartridge cases. Built exclusively for use with the RCBS Hand Case Neck Turner tool (sold separately), this manual accessory centers the case neck from the inside, acting as an internal mandrel. By stabilizing .30 caliber cartridge cases—such as the .308 Winchester, .30-06 Springfield, and .30 Carbine—it allows the cutting tool to shave away excess brass from the outside of the neck. This corrective process eliminates variances in neck wall thickness, reducing bullet run-out and improving concentricity for enhanced long-range accuracy.

Key Features

Precision Alignment: Serves as an internal mandrel to center .30 caliber cartridge cases, guiding the cutting tool of the RCBS Hand Case Neck Turner for even brass removal.
Consistent Neck Wall Thickness: Helps eliminate variations in case neck walls, reducing concentricity errors and bullet run-out to improve overall accuracy.
High-Quality Steel Construction: Machined from durable steel, providing a stable, rigid guide to ensure tight tolerances are maintained during manual cartridge preparation.
Calibre-Specific Fit: Dedicated strictly to .30 caliber cases, ensuring a tight, reliable slip fit inside the case mouth.

Product Specifications

Product Name: RCBS Hand Case Neck Turner Pilot .30 Cal
Model Number: 90413 (also styled as R90413)
Calibre Compatibility: .30 caliber (e.g., .308 Win, .30-06 Springfield, .30 Carbine)
Tool Compatibility: RCBS Hand Case Neck Turner (sold separately)
Product Weight: 0.10 lbs (approx. 45 grams)
Shipping Dimensions: 1.15" W x 2.30" L x 0.80" H
Unit Dimensions: Approximately 0.5" H x 0.5" W (1.27 cm x 1.27 cm)
Operation: Manual (non-powered)
Working Tolerance: Compatible with micrometer adjustments down to .0005-inch increments on the companion turning tool.

Who is the Rcbs Hand Case Neck Turner Pilot .30 Cal for?

Long-range precision shooters — require the highly precise alignment of this .30 caliber guide peg inside the case mouth to enable consistent outer-neck shaving down to .0005-inch increments, ensuring minimal bullet run-out for .308 Winchester or .30-06 Springfield reloading.
Benchrest competition shooters — need a lightweight, 0.10 lbs steel mandrel to manually uniform their case necks to achieve perfect concentricity, allowing them to turn brass with micrometric precision before match competition.

Less suitable for: shooters working with non-.30 caliber cartridges, as this pilot cannot be adjusted to other dimensions and requires switching to a different calibre-specific pilot. It is also less suitable for high-volume shooters processing hundreds of cases rapidly, who would be better served by automated lathe-style or drill-press powered neck-turning systems rather than this manual, low-to-medium-volume accessory.

SKU	RC39287LP
Model #	R90413
Brand	Rcbs
Shipping Weight	1.0000kg
