Is this RCBS .45 rifle caliber pilot compatible with pistol-specific .45 caliber handgun cases?

No, this model (R9396) is engineered specifically for .45 caliber rifle cartridges with a .458" bullet and neck diameter, such as .45-70 Government and .458 Winchester Magnum. It is distinct from pistol-specific .45 caliber handgun pilots like the RCBS part #09395 and should not be interchanged to ensure proper case neck alignment.

Can I use the RCBS R9396 pilot with case trimmers from other manufacturers?

No, this pilot features a standard shank diameter of 0.154 inches max designed exclusively to fit RCBS brand trimmers, including the Trim Pro and Rotary Case Trimmer series. It is incompatible with lathe-style trimmers from other brands that use different pilot receptacle sizes.

Does this tool require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required for the RCBS R9396 case trimmer pilot. Because it is a completely manual, unpowered tool steel component with no electrical systems or radio frequencies, it has no plugs or voltage ratings to consider for Australian workshops.

Can I use this hardened steel pilot on steel cartridge casings as well as brass?

No, this component is strictly designed for use on brass cartridge cases only. Attempting to use it on steel cartridge casings or other harder metals will cause premature wear or damage to the precision-machined tool steel surface.

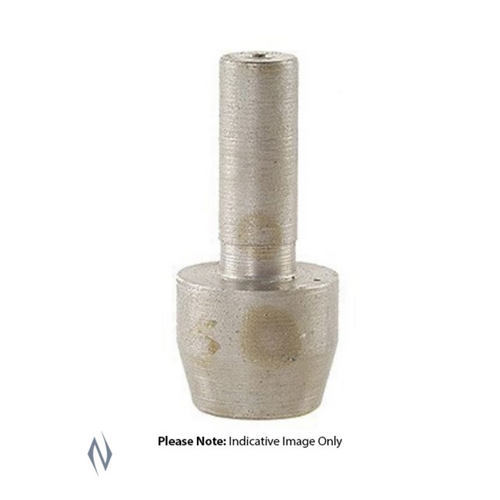

RCBS R9396 Case Trimmer Pilot - RCBS R9396

The RCBS Case Trimmer Pilot .45 Rifle Caliber (Model R9396) is a precision-machined, hardened tool steel accessory designed for cartridge brass reloading. This manual mechanical component guides the case mouth of a fired .45-caliber rifle casing squarely into the cutter blade of a compatible RCBS case trimmer. By centering the cartridge neck, it prevents the brass case from wobbling or shifting during the trimming rotation, ensuring a highly consistent and square cut across batches.

Key Features

Tapered Nose Design: Features a tapered entry section that smoothly guides the pilot into the case mouth of .45-caliber rifle brass.
Wobble Prevention: Aligns the cartridge neck perfectly with the cutter head to prevent shifting, securing a uniform overall length.
Hardened Steel Construction: Manufactured from high-strength tool steel to withstand repetitive contact with brass case mouths without premature wear.
Standard Shank Interface: Equipped with a precision-ground mounting shank measuring a maximum of 0.154 inches to secure directly into compatible RCBS cutter heads.

Product Specifications

Model Number: R9396 (MPN 9396)
Caliber Compatibility: .45 Caliber Rifle (.458-inch bullet/neck diameter)
Shank Diameter: 0.154 inches maximum
Material: Hardened tool steel
Compatible Trimmers: RCBS Trim Pro Case Trimmers, RCBS Rotary Case Trimmer, RCBS Rotary Case Trimmer-2
Packaged Dimensions: Approximately 2.0 inches (W) x 2.8 inches (L) x 0.55 inches (H)
Weight: Approximately 4.5 grams (0.01 lbs)
Power Requirements: None (manual accessory)
Australian Compliance: Fully compliant with local standards; contains no electrical components, requiring no SAA or RCM certification for Australian distribution.

Who is the Rcbs Case Trimmer Pilot .45 Rifle Caliber for?

Handloaders reloading .45-70 Government rifle ammunition — requires this case trimmer pilot to guide and center cases designed for a .458-inch bullet/neck diameter, preventing wobble during manual rotation on compatible RCBS cutter shafts.
Reloaders processing .458 Winchester Magnum rifle cartridges — utilizes the precision 0.154-inch maximum diameter mounting shank to interface directly with an RCBS trimmer cutter head to trim heavy-recoil rifle casings to exact, consistent lengths.

Less suitable for: case trimming systems from other manufacturers with non-matching pilot receptacle sizes, handloaders preparing .45-caliber pistol ammunition who require a shorter handgun-specific pilot, or reloaders processing steel cartridge casings that require specialized heavy-duty carbide tooling.

SKU	RC39295LP
Model #	R9396
Brand	Rcbs
Shipping Weight	1.0000kg
