Which specific cartridges are compatible with the RCBS Expander Decapping Unit .416 Taper model 09827?

This specific taper unit is engineered for .416 calibre bottleneck cartridges, specifically the .416 Remington Magnum and .416 Ruger. Please note that if you are reloading for a .416 Rigby die, RCBS instead specifies part number 09825 rather than this taper unit.

What is the correct way to set up the decapping pin when installing this unit into my sizing die?

When threading the expander decapping unit into your compatible RCBS sizing die, adjust it so that exactly 3/16 inch of the decapping pin protrudes from the bottom of the die. This ensures proper clearance for reliably punching out spent primers while simultaneously expanding the case neck to seat your .416 projectiles.

Are there any electrical compliance requirements or Australian certifications needed for this tool?

No. Because this is an entirely mechanical, non-powered reloading press component, electrical compliance regulations such as 240V mains requirements and SAA/RCM certifications do not apply.

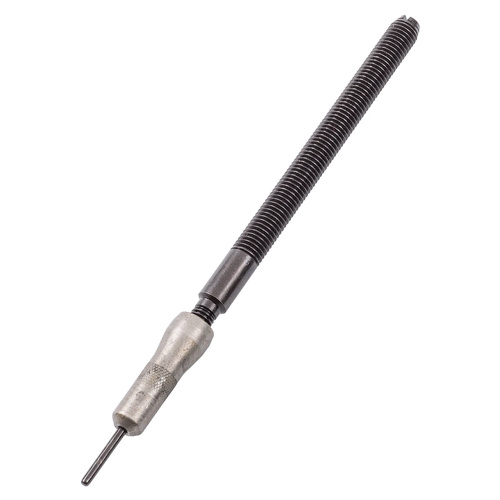

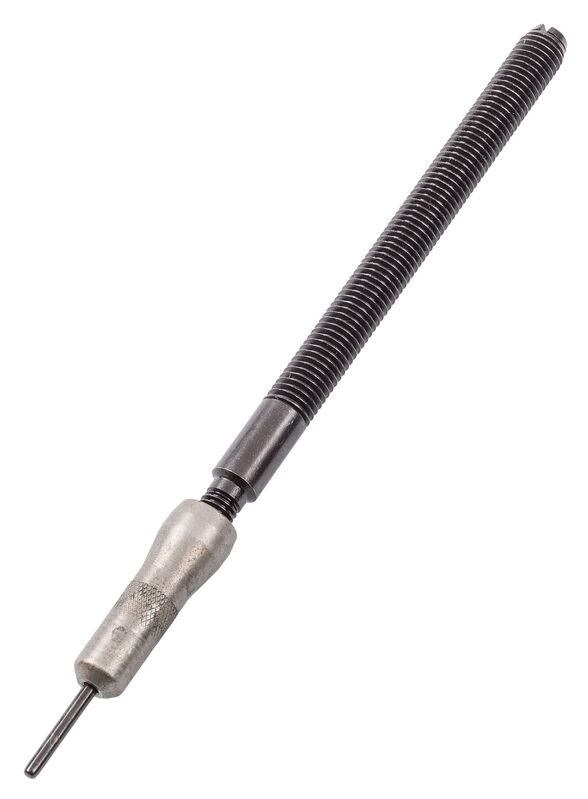

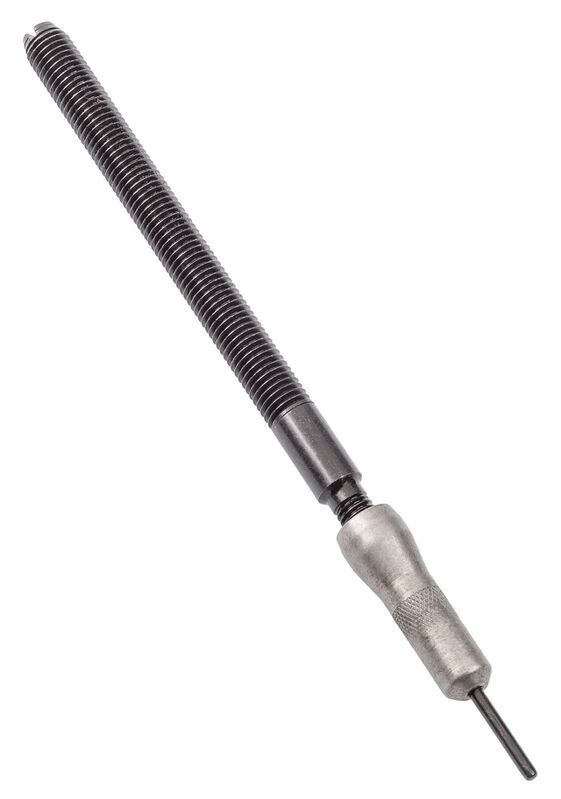

.416 Taper Decap Unit - RCBS R9827

The RCBS Expander Decapping Unit .416 Taper (part number 09827 / R9827) is a precision-machined solid steel internal assembly designed for standard RCBS full-length and neck-sizing rifle dies. Engineered for big-game cartridge reloading, this mechanical unit performs two operations in a single press stroke: it punches out spent primers using a replaceable decapping pin while simultaneously expanding the cartridge case neck to the exact internal dimensions required for .416-calibre projectiles. Its integrated tapered expander button eases entry and exit through the case mouth, reducing neck stretching and preserving case concentricity during the reloading process.

Key Features

Dual-Function Processing: Decaps spent primers and expands case necks in one stroke within compatible RCBS sizing dies.
Tapered Expander Design: Features a smooth, tapered profile that reduces friction and mechanical effort during withdrawal, minimising brass stretch.
All-Steel Construction: Manufactured from precision-machined solid steel, comprising a threaded rod, a .416 tapered expander button, and a replaceable large decapping pin.
OEM Replacement Assembly: Serves as a direct factory replacement for bent rods, stripped threads, or worn components in compatible sizing dies.
Mechanical Compatibility: Threads directly into standard 7/8"-14 RCBS rifle die bodies designed for .416 Remington Magnum and .416 Ruger cartridges.

Specifications

Brand: RCBS
Manufacturer Part Number: 09827 (R9827)
Calibre Compatibility: .416 calibre (.416 Remington Magnum, .416 Ruger)
Material: Precision-machined steel
Pin Setup Depth: 3/16 inch (approximately 4.76 mm) protrusion from the die base
Power Requirements: None (manual reloading press component)

Who is the RCBS Expander Decapping Unit .416 Taper for?

Handloaders loading .416 Remington Magnum cartridges for dangerous game hunting — relies on this rifle reloading expander decapping unit to maintain neck concentricity and properly seat .416 calibre projectiles by setting the decapping pin to the factory-specified 3/16 inch (4.76 mm) protrusion past the die base.
Handloaders loading .416 Ruger cartridges for outback hunting applications — utilises the tapered profile of this rifle reloading expander decapping unit to reduce mechanical sizing resistance on heavy-walled brass cases designed for .416 calibre hunting bullets.

Less suitable for: Handloaders sizing .416 Rigby brass, which requires a non-tapered .416 expander-decap unit (part #09825), or extreme heavy-calibre setups like .416 Barrett, which require dedicated large-format .50 BMG/.416 Barrett decapping units.

SKU	RC39530LP
Model #	R9827
Brand	Rcbs
Shipping Weight	1.0000kg
