What is the correct depth adjustment for the Redding 01032 decapping rod inside the sizing die?

Redding specifies adjusting the rod inside the sizing die so that exactly 3/16 inch (~4.76 mm) of the decapping pin projects from the bottom of the die. Exceeding this depth risks bending or breaking the rod when the internal sizing button contacts the cartridge case base.

Is the Redding 01032 compatible with popular long-action cartridges like .223 Remington or .30-06?

No, the 01032 is specifically a short-calibre replacement rod designed for cases like the .22 Hornet, .22 BR, and 6mm PPC. For standard and long-action calibres such as .223 Remington or .30-06, a longer decapping rod such as model 01033 or 01034 is required.

Can I use the Redding 01032 decapping rod on Berdan-primed brass commonly found in older surplus ammunition?

No, this decapping rod is strictly designed for standard Boxer-primed bottleneck cases. For Berdan-primed brass featuring dual off-centre flash holes, this decapping rod will bend or shatter and is completely incompatible.

Does the Redding 01032 require any special electrical certification or 240V compatibility for Australian reloading benches?

No electrical certification or 240V SAA/RCM compliance is needed because the Redding 01032 is a purely mechanical firearm reloading die component with no electrical parts or circuits. It is ready for immediate drop-in installation on your Australian reloading bench.

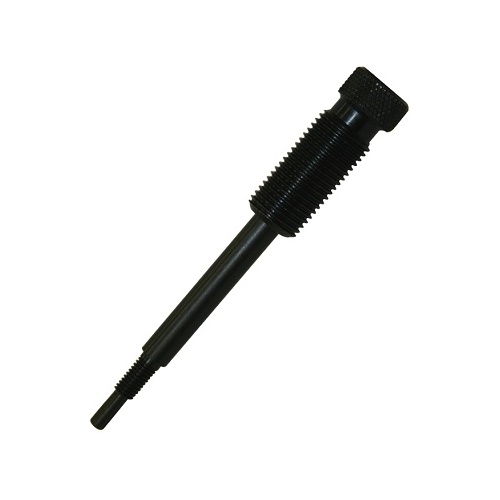

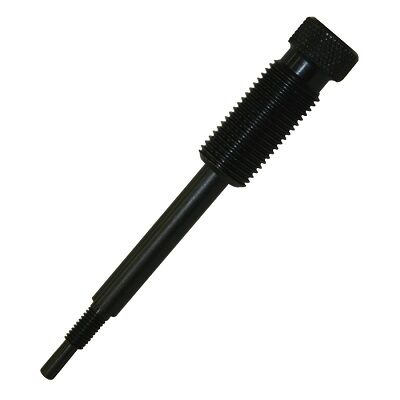

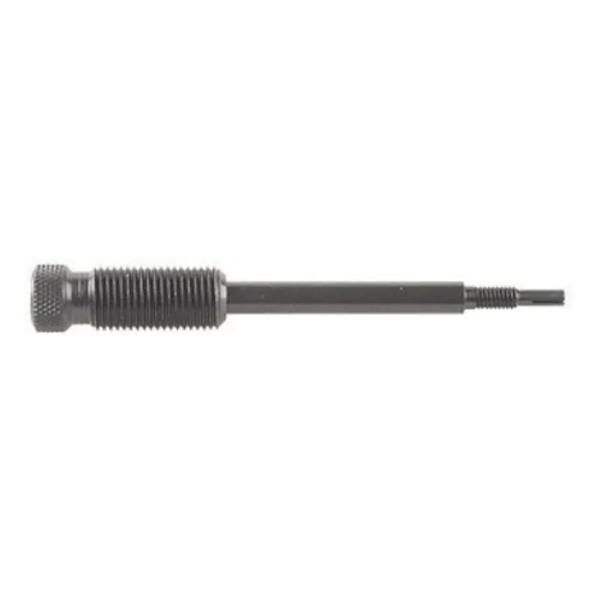

Redding Decapping Rod - Redding 01032

The Redding Decapping Rod (MPN: 01032) is a precision-machined, heat-treated steel replacement stem engineered for Redding Full-Length and Neck Sizing dies. Designed specifically for short-to-medium bottleneck cases and small-calibre cartridges, this mechanical component maintains axial concentricity and straightness within standard 7/8"-14 die bodies. It restores factory tolerances by securing the decapping pin and expander assembly to deprime Boxer-primed cartridge cases during the resizing stroke without introducing case neck runout.

Key Features

Direct OEM Replacement: Replaces bent, stripped, or worn factory decapping stems in Redding sizing dies to restore original factory alignment.
Concentric Alignment: Precision-machined steel construction maintains axial straightness inside the die body to prevent off-centre primer pocket strikes.
Broad Small-Calibre Compatibility: Built for small-action bottleneck cases, including .218 Bee, .22 Hornet, .221 Fireball, .222 Remington, .224 Valkyrie, 6mm BR, 6mm PPC, and WSSM-family cartridges.
Mechanical Simplicity: Non-powered component operating purely on mechanical press leverage without electrical or battery requirements.

Specifications

Manufacturer Part Number (MPN): 01032
Material: Heat-treated, precision-machined steel
Die Body Thread Compatibility: Standard Redding 7/8"-14 sizing dies
Primer Type: Boxer-primed bottleneck cases only
Setup Adjustment Threshold: Requires the decapping pin to protrude exactly 3/16 inch (~4.76 mm) below the base of the die
Supported Calibres: .218 Bee, .218 Mashburn Bee, .22 Hornet, .22 K-Hornet, .221 Remington Fireball, .222 Remington, .220 Russian, .22 Dasher, .22 BR, .224 Valkyrie, .22 PPC, 6mm PPC, 6mm BR, 6mm/222 Rem, 6.5 Grendel, .25-20 Winchester, .223 WSSM, .243 WSSM, and .25 WSSM

Who is the Redding Decapping Rod 218 Bee, 22 Hornet, 222 Rem, 224 Valkyrie, 6br, 6ppc, for?

Benchrest precision reloaders — requiring consistent axial concentricity and a decapping pin protrusion set to exactly 3/16 inch (~4.76 mm) below the die base to deprime .22 BR and 6mm BR cases without risking internal neck runout or base collision.
Varmint hunters — restoring damaged die assemblies with this Redding decapping rod to size and deprime high-volume small-action brass like .22 Hornet, .218 Bee, and .222 Remington to factory tolerances using the 3/16 inch (~4.76 mm) setup standard.
Target shooters — maintaining short-case alignment during the sizing stroke for specialized match cartridges like .224 Valkyrie and 6mm PPC by locking this reloading die decapping rod to the 3/16 inch (~4.76 mm) pin projection threshold.

Less suitable for: Standard and long-action cartridges (such as .22-250, .223 Rem, .243 Win, 6.5 Creedmoor, and .30-06), which require a longer decapping rod assembly (such as models 01033 or 01034), or Berdan-primed brass with dual off-centre flash holes, which will bend or shatter this Boxer-style stem.

SKU	RD41406LP
Model #	01032
Brand	Redding
Shipping Weight	1.0000kg
