What mandrel size and tool compatibility does the Redding 06130 require?

The Redding 06130 pilot stop is specifically engineered to fit standard 3/16 inch (0.1875 in) diameter mandrels. It is designed for seamless integration with the Redding Case Neck Gauge as well as Redding Flash Hole Deburring Tools, and will also fit standard 3/16 inch tools from other manufacturers.

Does this pilot stop work with small flash hole .30-calibre brass cases?

No, the model 06130 is incompatible with cartridges featuring small flash holes or sub-calibre cases that require the smaller 9/64 inch mandrel. For small-mandrel .30-calibre applications, you will need a dedicated small-mandrel pilot stop such as the Redding 06139.

Are there any electrical compliance requirements or SAA/RCM certifications needed for use in Australia?

No electrical compliance or SAA/RCM certifications are required. The Redding 06130 is an entirely unpowered mechanical reloading accessory made from precision CNC-machined stainless steel and does not connect to mains 240V power.

Case Neck Pilot Stop - Redding 06130

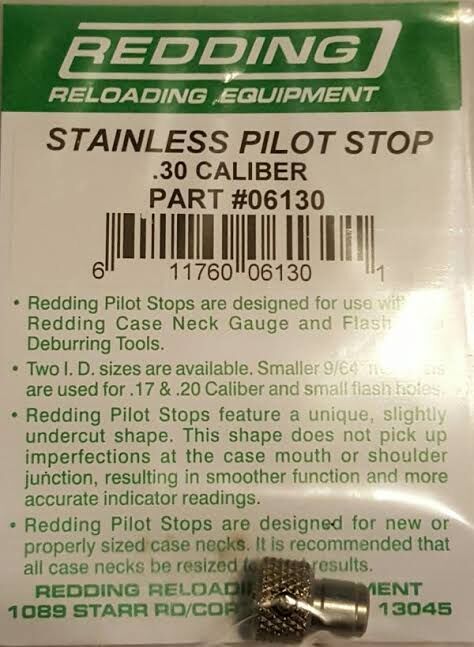

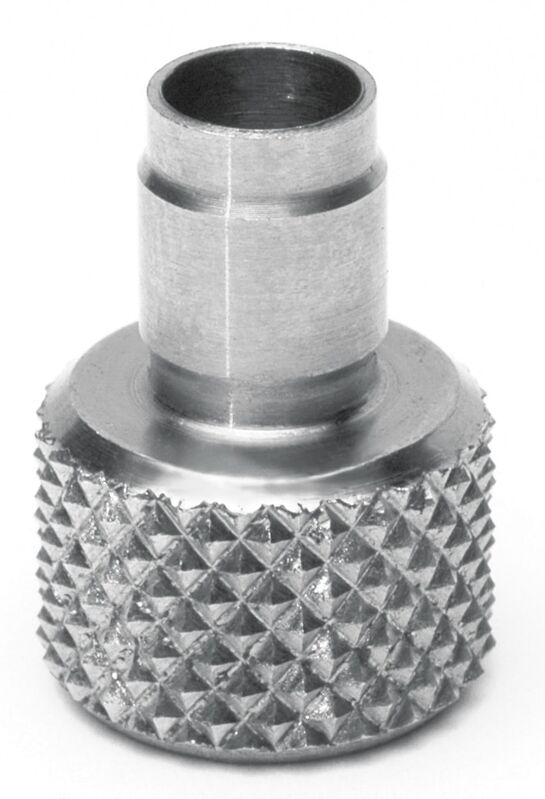

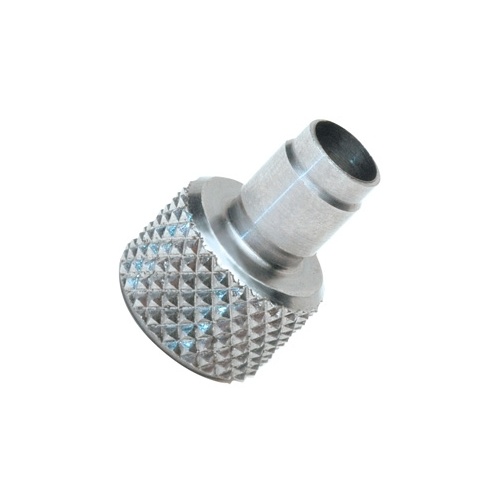

The Redding Case Neck Gauge Pilot Stop (MPN: 06130) is a dedicated reloading tool accessory engineered to locate and support the inside neck of .30-calibre brass cases during precision case preparation. Designed for use with the Redding Case Neck Gauge and Redding Flash Hole Deburring Tools, this component mounts onto standard 3/16-inch (0.1875 in) diameter mandrels. Constructed from precision CNC-machined stainless steel, it provides a stable bearing surface to measure neck-wall thickness variations or establish uniform depth limits when deburring internal flash holes.

Calibre-Specific Alignment: Sized specifically for .30-calibre (7.62 mm) case necks, ensuring exact concentric alignment without loose play or binding during case rotation.
Undercut Relief Profile: Engineered with an undercut profile that prevents the bushing from catching or riding on internal imperfections at the case mouth or neck/shoulder junction, facilitating smooth rotation and accurate dial indicator readings.
Mandrel Compatibility: Machined with an internal bore to slide directly onto standard 3/16-inch (0.1875 in) diameter tool mandrels from Redding and other matching case preparation systems.
Stainless Steel Construction: Precision CNC-machined from stainless steel for wear resistance and dimensional stability across high-volume brass sorting sessions.
Brass Sorting Accuracy: Enables precision handloaders to accurately identify and separate cases exhibiting neck-wall runout exceeding 0.0015 inches.

Specifications

Manufacturer Part Number (MPN): 06130
Calibre Compatibility: .30 Calibre (7.62 mm)
Mandrel Diameter Compatibility: 3/16 inch (0.1875 in)
Material: CNC-machined stainless steel
Tool Fitment: Redding Case Neck Gauge, Redding Flash Hole Deburring Tools, and standard 3/16-inch mandrels
Packaged Dimensions: Approximately 0.63 in H × 3.0 in W
Component Weight: Under 30 grams nominal
Power Requirements: None (manual reloading accessory)

Who is the Redding Case Neck Gauge Pilot Stop .30 Calibre for?

Precision handloaders sorting .30-calibre brass — requires this reloading case neck gauge pilot stop to maintain concentric alignment over a 3/16-inch (0.1875 in) mandrel while identifying neck-wall thickness variations exceeding 0.0015 inches across .30-calibre (7.62 mm) casings.
PRS competitors loading .308 Winchester and .300 Winchester Magnum — utilizes the undercut profile on this pilot stop to eliminate measurement drag at the case shoulder junction when inspecting 7.62 mm neck uniformity on standard 3/16-inch gauge shafts.
Hunters preparing extreme-long-range .300 PRC ammunition — relies on the 0.1875-inch mandrel fitment to set positive, repeatable stop depths during internal flash-hole deburring on .30-calibre magnum cases.

Less suitable for: Handloaders processing non-.30-calibre brass (such as .22, 6mm, 6.5mm, 7mm, or .338) or cartridges with small 0.060-inch flash holes requiring a smaller 9/64-inch mandrel; these applications require a dedicated calibre-matched pilot stop or a small-mandrel pilot stop bushing.

SKU	RD102727LP
Model #	06130
Brand	Redding
Shipping Weight	0.2000kg
