Will the Redding #21 Bullet Seating Micrometer fit my existing RCBS or Hornady standard seating dies?

No, this micrometer is specifically engineered to fit standard Redding bottleneck seating dies featuring a 1/2"-20 TPI thread interface. It is entirely incompatible with non-Redding brands such as RCBS, Hornady, Lee, or Forster, and will not fit Redding Competition seating dies which use a built-in proprietary top micrometer mechanism.

How do I install the Redding 09081 micrometer onto my current Redding seating die?

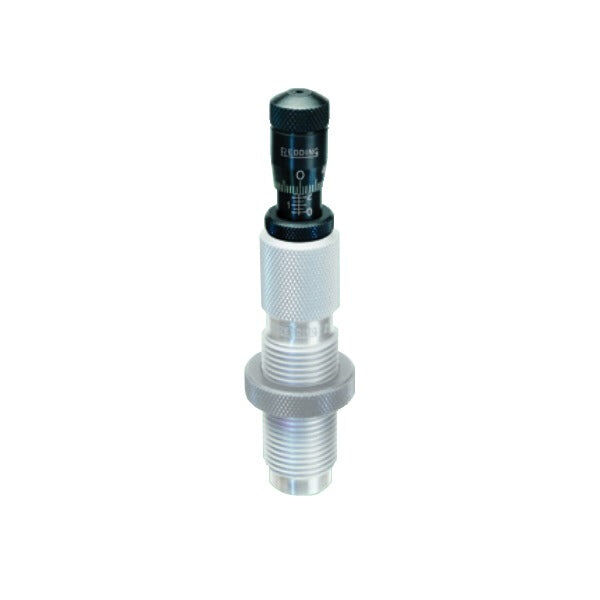

Installation is a straightforward drop-in procedure for your reloading bench. Simply unscrew and remove the factory non-micrometer seating stem from the top of your compatible Redding bottleneck seating die, and screw the #21 micrometer directly into the 1/2"-20 TPI thread interface with no special modifications required.

What level of adjustment precision can I expect when tuning cartridge overall length with this micrometer?

The Redding #21 seating micrometer provides direct 0.001-inch precision depth control increments via its knurled adjustment head and clear engraved graduated markings. This allows precision handloaders tuning big game cartridges like the .375 H&H Magnum or .35 Whelen to achieve highly repeatable bullet seating depths and fine-tune distance-to-rifling lands.

Can I use the #21 standard bullet shape seating plug with Very Low Drag (VLD) projectiles?

The #21 seating plug is profiled for standard hunting ogives, soft points, flat points, and polymer-tipped bullets in compatible .35 and .375 bore families. If you are reloading extremely sharp VLD projectiles, you should instead use Redding's dedicated VLD seating stems to prevent unwanted bullet tip deformation.

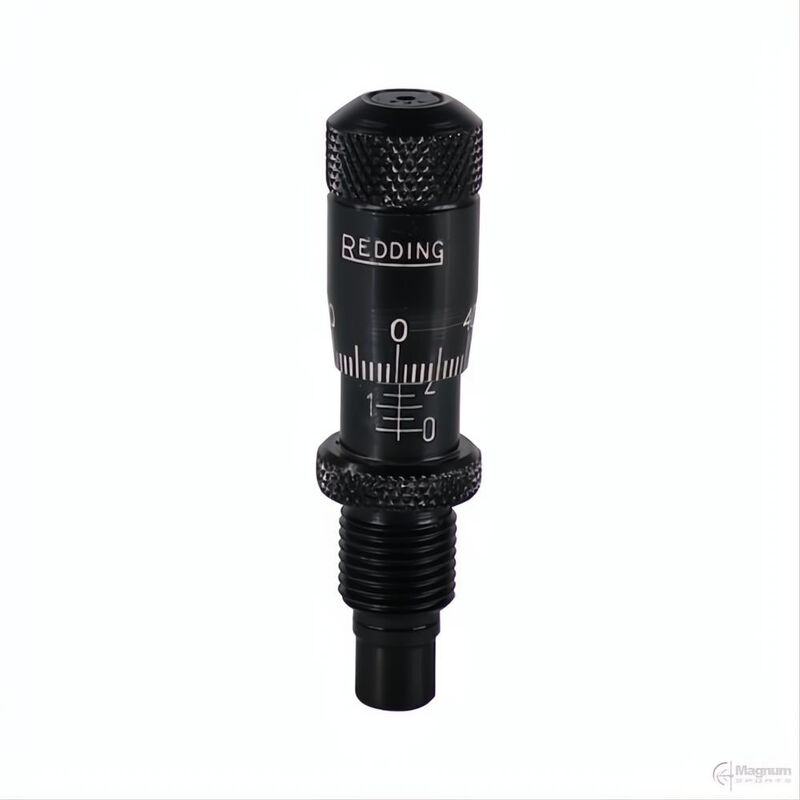

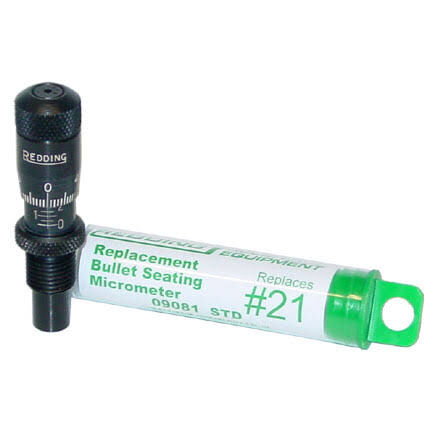

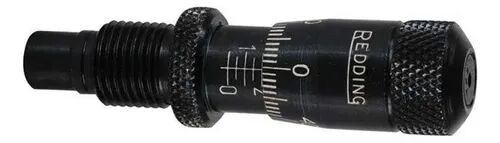

Bullet Seating Micrometer - Redding 09081

The Redding #21 Bullet Seating Micrometer converts standard Redding bottleneck seating dies into precision micro-adjustable dies. Built from machined steel alloy with laser-engraved graduations, it replaces the factory non-micrometer seating assembly to provide precise depth control in direct 0.001-inch increments. Featuring a #21 standard seating plug, this mechanical upgrade is specifically profiled for standard ogives, soft points, and polymer-tipped bullets across .35-calibre to .375-calibre families and select large-bore cartridges.

Key Features

Direct Drop-In Installation: Replaces factory seating plugs in standard bottleneck dies via a 1/2"-20 TPI thread interface without requiring machining or die modifications.
Micro-Adjustable Precision: Provides continuous, repeatable seating depth adjustments in direct 0.001-inch increments for tuning cartridge overall length (COAL) and bullet jump.
Optimised Plug Profile: Utilises the #21 internal contour designed specifically for standard ogive and polymer-tipped projectiles in .35 and .375 chamberings.
Calibre Interoperability: Transfers between compatible standard Redding dies across multiple calibres, including .375 H&H Magnum, .375 RUM, .35 Remington, .35 Whelen, .358 Winchester, and 45-70 Government.
Durable All-Steel Construction: Features a knurled adjustment head and high-visibility engraved reference marks for benchtop handloading consistency.

Specifications

Manufacturer Part Number: 09081
Adjustment Increments: 0.001 inch
Thread Pitch: 1/2"-20 TPI
Seating Plug Profile: #21 Standard Bullet Shape
Material: Machined steel alloy
Mechanism: Purely mechanical micrometer
Primary Calibre Compatibility: .375 H&H Magnum, .375 H&H AI, .375 RUM, .375 Win, .375 Wby Mag, .378 Wby Mag, .35 Rem, .35 Whelen, .35 Whelen AI, .35 Win, .358 Win, .358 Norma Mag, .348 Win, 40-65 Win, 45-70 Govt, 9x57mm Mauser

Who is the Redding #21 Bullet Seating Micrometer - 375 H&H, 35 for?

Precision Big Game Handloaders — Adjust cartridge overall length in exact 0.001-inch increments using this bullet seating micrometer to optimise accuracy and bullet jump in large-bore rifles such as .375 H&H and .35 Whelen.
Reloaders Upgrading Standard Bottleneck Dies — Converts existing bottleneck dies using standard 1/2"-20 TPI threads into micro-adjustable tooling without requiring a completely new die set.

Less suitable for: Handloaders loading sharp secant-ogive Very Low Drag projectiles (who require a dedicated VLD profile seating stem to prevent tip deformation), users of factory competition dies with integrated top micrometers, dies requiring 5/8"-18 or larger threads, or non-compatible third-party reloading dies.

SKU	RD41433LP
Model #	09081
Brand	Redding
Shipping Weight	1.0000kg
