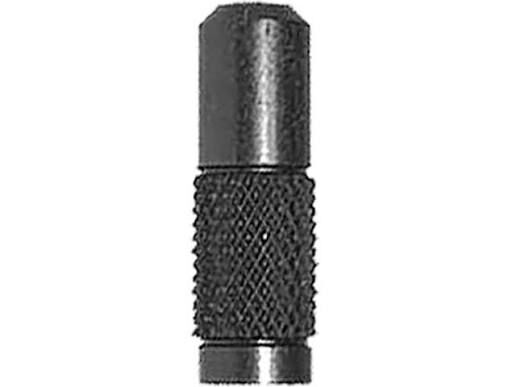

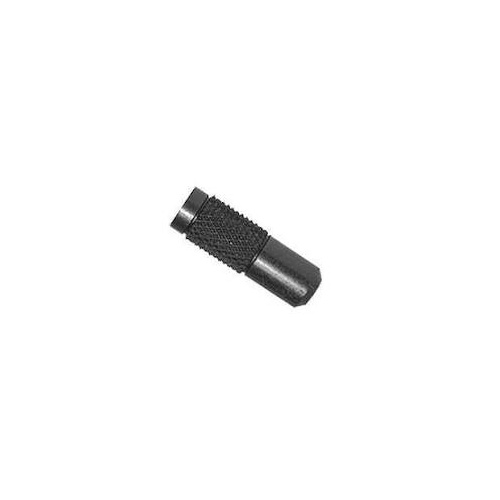

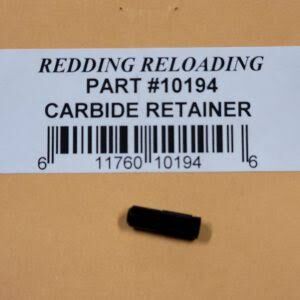

The Redding Type S Die Decapping Pin Retainer (.20 Calibre) (MPN: 10194) is a precision-machined, heat-treated steel reloading component designed for handloaders using Redding Type S Bushing Full Length and Neck Sizing Dies. When sizing brass necks solely via external bushings to minimise runout and brass work-hardening, handloaders remove the factory expanding size button. This component threads onto the decapping rod assembly in place of the expander, securely retaining standard 0.060" to 0.062" decapping pins so case depriming and bushing sizing occur simultaneously in a single press stroke.

Key Features

• Bushing-Only Sizing: Eliminates the standard expander button to allow precise, bushing-only neck sizing without stretching or overworking case necks.
• Narrow Neck Clearance: Machined specifically to clear the narrow internal dimensions of .20 calibre brass cases during extraction without internal neck contact.
• Standard Pin Retention: Holds standard 0.060" / 0.062" diameter decapping pins firmly in place on the Redding decapping rod assembly.
• Durable Construction: Manufactured from heat-treated steel for long-term mechanical stability on standard 7/8"-14 reloading presses.

Product Specifications

• Brand: Redding Reloading Equipment
• Manufacturer Part Number (MPN): 10194
• Calibre Compatibility: .20 calibre (e.g., .204 Ruger, .20 Tactical)
• Pin Compatibility: Standard 0.060" / 0.062" decapping pins (such as Redding #01060)
• Die Compatibility: Redding Type S Bushing Full Length and Neck Sizing Dies
• Material: Precision-machined, heat-treated steel
• Shipping Weight: 0.091 lbs (~41 g)

Who is the Redding Type S Die Small Pin Retainer for?

• Precision varmint hunters reloading .204 Ruger — Requires this reloading die decapping pin retainer to secure 0.060" / 0.062" decapping pins while sizing .20 calibre brass without an internal expander ball dragging through the case neck.
• Target shooters reloading .20 Tactical — Employs this decapping pin retainer to maintain precise neck tension in .20 calibre Redding Type S Bushing Dies using standard 0.060" to 0.062" pins while reducing neck runout.

Less suitable for: Handloaders processing case necks from .22 to 6.5 mm or .270 up to .338+, who require larger dedicated calibre retainers such as the 10195 or 10196 models to properly fit larger cartridge neck diameters.
