What reloading presses are compatible with the Redding #14 Shellholder?

The Redding #14 Shellholder features a universal snap-in ram slot design compatible with standard single-stage and turret reloading presses across major brands including Redding, RCBS, Hornady, Lyman, and Lee standard rams. It is engineered specifically for the .22 Hornet cartridge rim profile with a nominal rim diameter of 0.350 inches.

Does the Redding #14 Shellholder require any Australian electrical compliance or certifications?

No, electrical compliance is not applicable to this product. The Redding #14 Shellholder is an entirely mechanical steel tool containing no electrical circuitry, requiring no mains power, and remaining exempt from Australian SAA or RCM certification frameworks.

When should I use an extended shellholder instead of the standard Redding #14 model?

While the standard #14 shellholder handles regular sizing and seating operations for .22 Hornet and .17 Hornet, Redding specifies using an Extended Shellholder (Part #11514) for lathe case trimming operations where the case overall length falls below 1.50 inches.

.22 Hornet Shellholder - Redding 11014

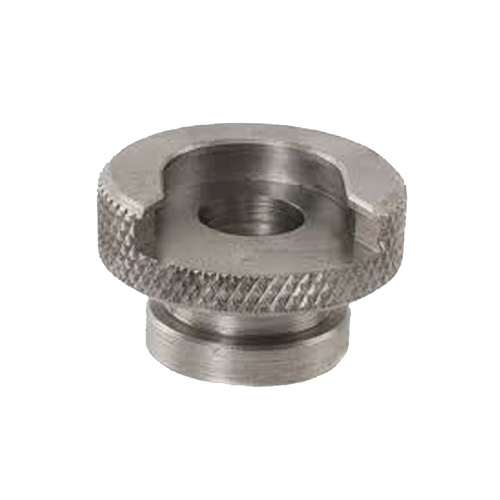

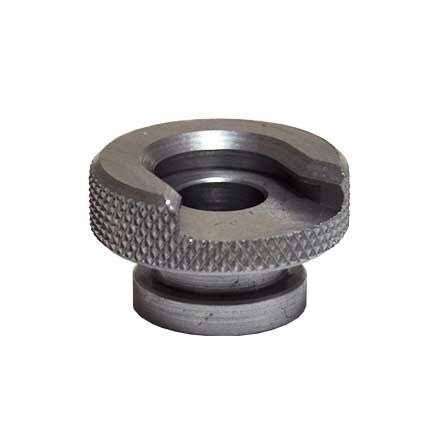

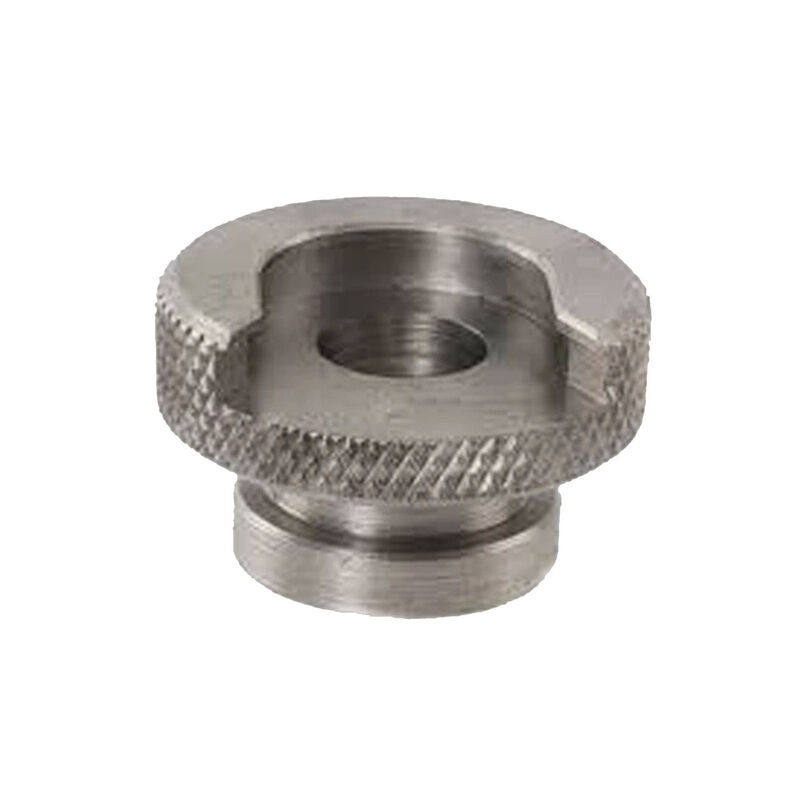

The Redding #14 Standard Shellholder (MPN: 11014) is a precision-machined reloading press accessory designed to securely hold .22 Hornet cartridge cases during metallic reloading operations. Built with a standard snap-in base measuring approximately 31.75 mm in diameter, it interfaces directly with the rams of standard single-stage and turret reloading presses. Constructed from heat-treated, hardened high-grade steel, this mechanical shellholder aligns the cartridge case with reloading dies for uniform decapping, sizing, expanding, priming, and bullet seating without requiring electrical power.

Key Features

Calibre-Specific Fitment: Machined specifically to fit the rim profile of .22 Hornet cases, as well as dimensionally identical variants including .17 Hornet and .22 K-Hornet.
Tapered Entry Profile: Features chamfered entry edges to facilitate smooth, snag-free case insertion and extraction while preventing rim distortion.
Hardened Steel Construction: Heat-treated to resist surface burring, warping, and wear under repetitive press lever pressure.
External Knurling: Finished with a knurled outer surface to ensure a positive grip when inserting or removing the shellholder from the press ram.
Universal Press Ram Compatibility: Conforms to standard snap-in slot dimensions across major reloading press brands including Redding, RCBS, Hornady, Lyman, and Lee.

Specifications

Manufacturer Part Number (MPN): 11014
Material: Heat-treated, hardened high-grade steel
Nominal Rim Diameter: 0.350 in / 8.89 mm
Nominal Rim Thickness: 0.065 in / 1.65 mm
Standard SAAMI Deck Height: 0.125 in / 3.175 mm
Ram Base Diameter: Standard universal fitment (approx. 31.75 mm)
Weight: Approximately 30 g
Power Requirements: None (manual mechanical tool)

Who is the Redding #14 Shellholder for?

Handloaders processing small-calibre rimmed cartridges for pest management — Secures cases matching a 0.350 in (8.89 mm) nominal rim diameter and 0.065 in (1.65 mm) rim thickness, providing the alignment needed when loading .22 Hornet and .17 Hornet ammunition in standard reloading press shellholder rams.
Reloaders setting up standard single-stage and turret presses — Utilises an industry-standard 0.125 in (3.175 mm) SAAMI deck height and a 30 g hardened steel body to maintain uniform headspace datum dimensions across high-volume case sizing operations.

Less suitable for: Handloaders micro-adjusting chamber headspace in +0.002 in increments (who require a stepped Competition Shellholder Set), case trimming operations with overall lengths under 1.50 in / 38.1 mm (which require an extended-height shellholder), or cartridges with larger base dimensions like the .223 Remington (which requires a dedicated #10 shellholder profile).

SKU	RD41450LP
Model #	11014
Brand	Redding
Shipping Weight	1.0000kg
