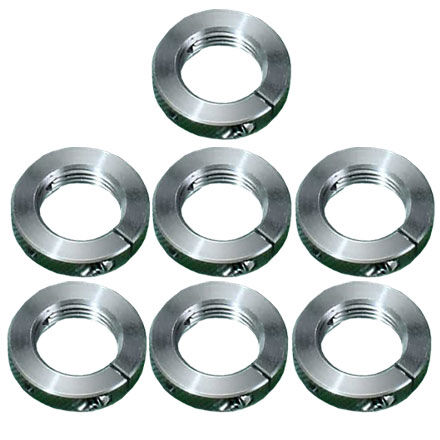

The Redding Stainless Steel Crossbolt Lock Rings – 7 Pack (MPN: 11077) provide positive, non-marring retention for standard reloading dies installed in single-stage, progressive, and turret presses. Sized to fully populate a 7-station press head, these precision-machined stainless steel rings clamp around standard 7/8"-14 TPI die bodies. Unlike traditional brass setscrew designs that drive directly into die threads, the crossbolt split-ring mechanism tightens evenly around the full circumference, preserving critical sizing depth and headspace settings across die removal and reinstallation cycles.

Key Features

• Split-Ring Crossbolt Clamping: Compresses uniformly across the 7/8"-14 die body using an integrated 7/64" hex screw, securing die adjustments without deforming or gouging the steel threads.
• Machined Stainless Steel Construction: Resists environmental humidity and workshop corrosion without degrading, galling, or rusting over long-term storage and use.
• Aggressive Outer Knurling: Delivers high-traction exterior grip for precise finger-tight adjustments, vertical alignment, and depth calibration prior to hex wrench lock-down.

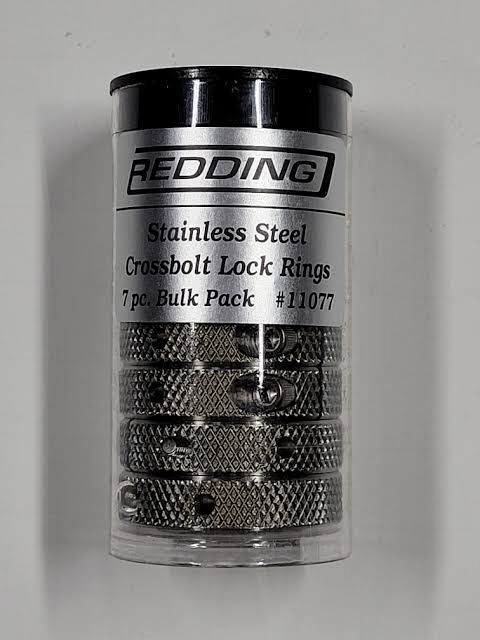

• Direct 7-Station Compatibility: Supplied in a dedicated 7-pack configuration to fully outfit a Redding T-7 Turret Press or multiple multi-die precision sets in a single package.

Specifications

• Thread Standard: 7/8"-14 TPI
• Material: Heavy-duty machined stainless steel
• Fastener Type: Crossbolt clamp screw (7/64" hex drive)
• Pack Quantity: 7 lock rings
• Individual Ring Weight: Approximately 0.034 lb (15.4 g)
• Total Package Weight: Approximately 0.60 lb (272 g)
• Press Compatibility: Standard 7/8"-14 threaded reloading presses and toolheads

Who is the Redding Stainless Steel Crossbolt Lock Rings - 7 Pack For T-7 Press for?

• Redding T-7 Turret Press Owners — Needs a complete set of matching die lock rings supplied in a 7 pack to fully configure every station on a 7-hole turret head without mixing mismatched hardware.
• Precision Handloaders — Requires a 7/64" hex-driven split-clamp design on standard 7/8"-14 TPI reloading die bodies to lock down exact sizing dimensions without marring or stripping outer threads.

Less suitable for: Handloaders running oversized 50 BMG or heavy magnum dies with 1-1/4"-12 or 1-1/2"-12 thread patterns (which require large-format dedicated lock rings) or sub-assembly components using 1/2", 9/16", or 5/8" body threads (which require smaller specialised body lock rings).
