What case trimmers are compatible with the Redding Trimmer Titanium Cutter Model 14050?

The Redding 14050 titanium cutter is designed as a direct-fit replacement head for Redding Model 1400, Model 1400-XT, and Model 2400 case trimming lathes. It securely accepts standard Redding caliber pilots via its integrated set screw for precise manual and lathe-style case mouth trimming.

Can I use the Standard 14050 cutter for .17 or .20 calibre brass cases?

No, the Model 14050 is strictly a standard cutter intended for .22 calibre and larger rifle and pistol cartridge cases. For sub-calibres like .17 and .20, you must use Redding's separate small-shank cutter (Part #14040) which accommodates smaller 5/32-inch pilot shanks.

What are the main durability benefits of the Titanium Nitride coating on this cutter head?

The high-speed steel base of the 14050 cutter is treated with a durable Titanium Nitride (TiN) gold coating that significantly reduces friction during the trimming process. This advanced surface treatment resists edge breakdown and allows the cutter to stay sharp substantially longer than untreated standard steel alternatives.

Are there any electrical or regulatory compliance requirements for using this tool in Australia?

As an entirely unpowered, mechanical reloading tool component weighing just 23 grams, electrical requirements such as 240V compatibility, Australian plugs, or SAA/RCM electrical certifications are completely non-applicable. It is fully compliant and ready for use on any Australian reloading bench.

Case Trimmer Cutter - Redding 14050

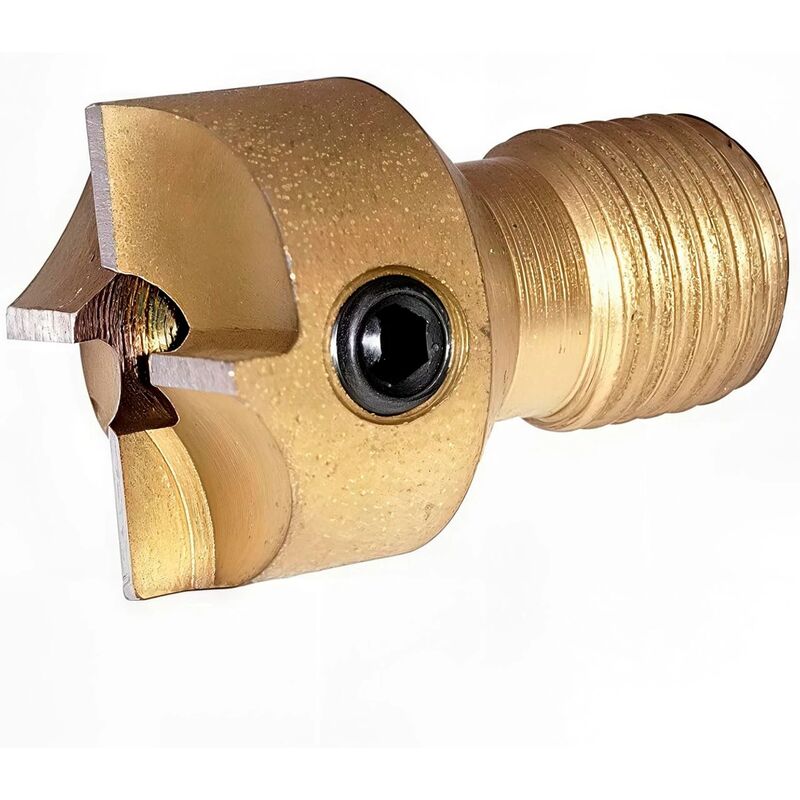

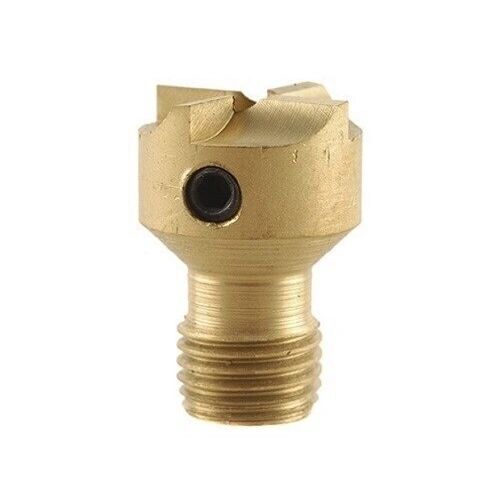

The Redding Trimmer Titanium Cutter (Standard) (MPN: 14050) is a precision replacement cutter head manufactured in the United States by Redding Reloading Equipment. Designed for manual and lathe-style case trimming systems, this mechanical component features a high-speed steel base treated with a hard-wearing Titanium Nitride (TiN) gold coating. It squares off brass cartridge mouths to remove excess neck material caused by brass flow during firing and resizing, delivering high consistency in overall case length and neck squareness without requiring mains electricity.

Key Features

Titanium Nitride Coating: The gold TiN surface treatment significantly reduces friction during trimming, resists edge breakdown, and extends cutting life compared to untreated steel cutters.

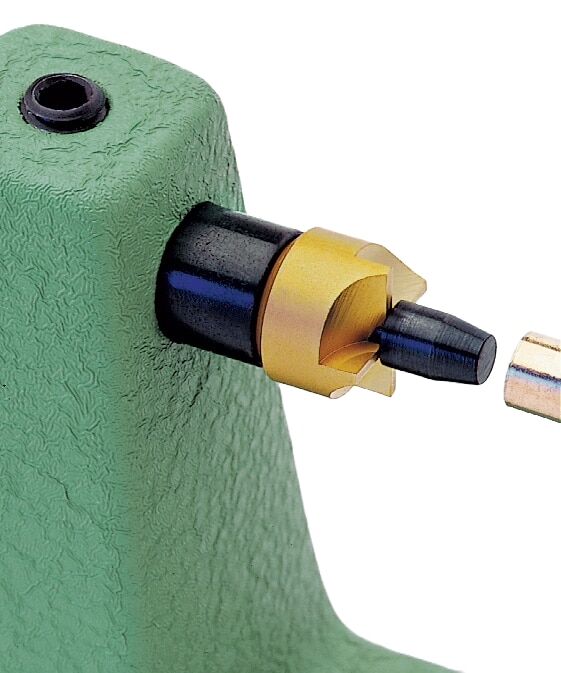

Direct-Fit Lathe Compatibility: Engineered as a direct replacement cutter for Redding Model 1400, Model 1400-XT, and Model 2400 case trimming lathes.
Standard Pilot Mounting: Accepts standard Redding calibre pilot shanks, secured into place via an integrated set screw.
Mechanical Operation: Fully unpowered, manual reloading component designed for indoor reloading bench use.

Specifications

Manufacturer Part Number: 14050
Country of Manufacture: United States
Base Material: High-speed steel
Finish: Titanium Nitride (TiN) coating
Calibre Compatibility: .22 calibre and larger (standard-shank pilots)
Packaged Weight: Approximately 23 grams (0.023 kg)
Packaged Dimensions: 152 mm (L) × 83 mm (W)
Lathe Compatibility: Redding Model 1400, Model 1400-XT, Model 2400

Who is the Redding Trimmer Titanium Cutter (Standard) for?

Precision handloaders — requires a wear-resistant reloading case trimmer cutter head built with standard-shank pilot compatibility to accurately square and trim cases across .22 calibre and larger rifle cartridges.
Australian target shooters — relies on a compact, 23 grams titanium-nitride-coated replacement cutter head to maintain cartridge overall length consistency during manual batch case preparation.

Less suitable for: Handloaders trimming sub-calibres below .22 calibre (such as .17 and .20 calibre); these cartridges require a dedicated small-shank cutter designed to accept 5/32″ pilot shanks, or automated on-press powered trimmer units for ultra-high-volume commercial processing.

SKU	RD41461LP
Model #	14050
Brand	Redding
Shipping Weight	1.0000kg
