What case trimmers are compatible with the Redding 15273 .270 calibre pilot?

This pilot is designed to fit Redding Model 1400, Model 1400-XT, and Model 2400 Match Precision Case Trimming Lathes. It is also cross-compatible with other rotary trimmers that accept a standard 3/16-inch solid shank, such as Forster and Hornady units.

Can I use this pilot for both .270 Winchester and 6.8mm SPC brass?

Yes, the Redding 15273 features a .270 calibre and 6.8mm pilot diameter engineered specifically for nominal .277-inch bullet diameter bore sizes. It guides both .270 Winchester, .270 WSM, and 6.8mm Remington SPC cases squarely into the trimming lathe to ensure uniform case length.

Are there any special permits or Australian compliance certifications required to purchase this tool?

No permits or licenses are required to purchase or import this product in Australia. Because it is an entirely mechanical, non-powered lathe tool attachment, electrical compliance certifications such as SAA or RCM do not apply.

How do I secure the pilot into my rotary case trimmer?

The pilot features a standard 3/16-inch solid steel shank that slides directly into the cutter head of compatible trimming lathes. It is secured firmly in place using the set screw integrated into your trimmer's cutter assembly.

270 Cal Case Trimmer Pilot - Redding 15273

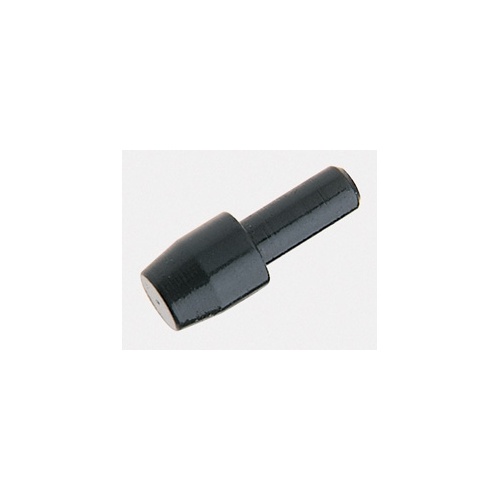

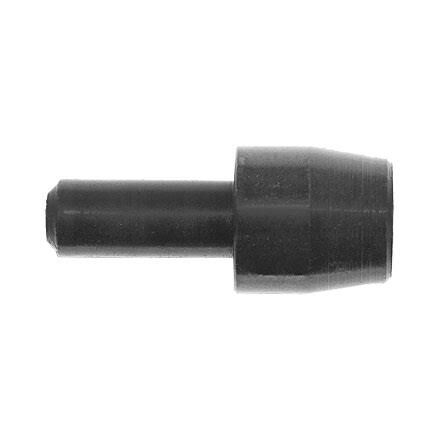

The Redding .270 Calibre Case Trimmer Pilot is a precision case preparation tool designed to guide .270-class cartridge cases squarely into a rotary case trimmer cutter head. Machined from hardened tool steel, this mechanical pilot ensures concentric alignment between the cartridge neck and the trimmer blade, eliminating wobble to produce square, uniform case mouths. Built with a nominal pilot body diameter of approximately .273 inches, it fits cases sized for standard .277-inch projectiles, including .270 Winchester, .270 WSM, .270 Weatherby Magnum, and 6.8mm Remington SPC.

Key Features

Precision Tapered Nose: Features a lead-in taper at the tip to facilitate smooth entry into resized cartridge case necks without catching on burrs or shaving interior brass.
Hardened Tool Steel Construction: Machined from solid tool steel to maintain dimensional tolerances and resist wear across extended case preparation sessions.
Concentric Lathe Alignment: Holds the cartridge case neck square against the cutter blade during manual or drill-powered trimming to prevent uneven cuts and case chatter.
Standard Mounting Interface: Features an industry-standard 3/16-inch solid mounting shank that locks into compatible trimmer cutter heads via a set screw.

Specifications

Calibre Compatibility: .270 Calibre / 6.8mm (designed for nominal .277" bullet diameter cases)
Pilot Body Diameter: Approximately .273"
Mounting Shank Diameter: Standard 3/16" (approx. 4.76 mm) solid shank
Material: Precision-machined, hardened tool steel
Packaged Weight: Under 30 g
Physical Length: Approximately 25 mm to 30 mm
Trimmer Compatibility: Fits Redding Model 1400, Model 1400-XT, and Model 2400 Match Precision Case Trimming Lathes, as well as rotary trimmers accepting 3/16" shanks (including Forster and Hornady)

Who is the Redding 270 Cal. Case Trimmer Pilot for?

Precision handloaders processing .270 Winchester, .270 WSM, or 6.8mm SPC brass — Guides resized cases designed for .277" bullet diameters directly over its .273" diameter body to maintain square case mouths during trimming.
Reloaders operating Redding, Forster, or Hornady rotary case trimmers — Mounts securely into standard 3/16-inch (approx. 4.76 mm) cutter shaft chucks using a solid steel shank to ensure rigid, wobble-free case trimming lathe operation.

Less suitable for: Handloaders processing brass outside the .277" bore specification (such as .264" / 6.5mm or .284" / 7mm calibres), which require dedicated calibre-specific trimmer pilots, or reloaders using trimmer lathes that require threaded pilot shafts rather than standard 3/16-inch solid shanks.

SKU	RD41464LP
Model #	15273
Brand	Redding
Shipping Weight	1.0000kg
