What case trimmers are compatible with the Redding 9.3mm Case Trimmer Pilot model 15362?

The Redding 15362 pilot features a standard 3/16-inch shank, making it natively compatible with Redding case trimming lathes like the Model 1400 and Model 2400. It is also cross-compatible with Hornady and Forster case trimmers that accept standard 3/16-inch pilot shanks. Please note it does not natively fit trimmers with proprietary shank dimensions, such as Lyman or RCBS, without an adapter.

Is this pilot suitable for resizing or trimming calibres other than 9.3mm?

No, this pilot is precision-machined specifically for 9.3mm cases with a .366-inch inside neck diameter, such as 9.3x62mm Mauser and 9.3x74R. It cannot be used with smaller calibres like .338 or .358 as it will not fit inside the case neck, and using it on larger calibres of .375 or greater will result in loose alignment and uneven trimming.

Does the Redding 15362 pilot require any specific electrical compliance or permits for use in Australia?

As a purely mechanical reloading component made from heat-treated solid steel, electrical regulations such as 240V compatibility, SAA approval, and RCM marks do not apply. Additionally, it is an unregluated reloading accessory with no specific domestic firearm permit requirements for purchase or use in Australia.

How should I integrate this pilot into my case prep workflow for Sambar deer hunting loads?

The pilot inserts directly into the inside of a sized 9.3mm case neck to center the brass squarely against the manual trimmer cutter head, preventing chatter and off-axis cuts. It is optimized for batch sizes of 20 to 100 cases, which is ideal for preparing precision hunting ammunition for medium-bore rifles commonly used in Victorian and NSW bush stalking.

9.3mm Case Trimmer Pilot - Redding 15362

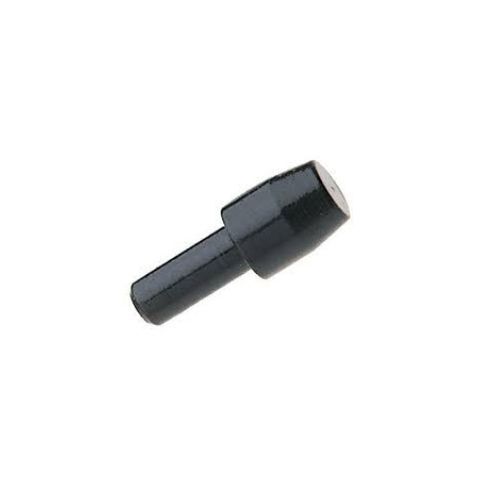

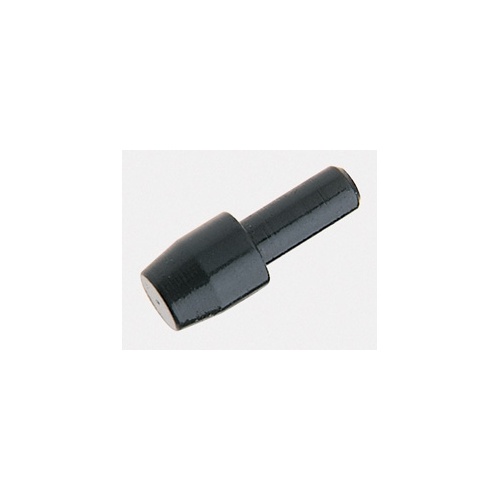

The Redding 9.3mm Case Trimmer Pilot (Model 15362) is a precision-machined solid steel reloading component designed to support and center 9.3mm cartridge brass during case neck trimming. Engineered with a standard 3/16-inch shank, the pilot inserts directly into the inside of sized 9.3mm (.366-inch) case necks to maintain square, on-axis contact against the trimmer cutter head. This alignment eliminates cutter chatter and prevents uneven, off-axis trimming across manual case preparation lathes.

Key Features

Calibre-Specific Neck Support: Sized for an exact fit inside 9.3mm (.366-inch) case necks to ensure uniform cartridge length after fire-forming or resizing.
Standard 3/16-Inch Mounting Shank: Designed to mount into Redding Model 1400 and Model 2400 Case Trimming Lathes, as well as Forster and Hornady case trimmers accepting 3/16-inch pilot shanks.
Heat-Treated Steel Construction: Precision-machined solid steel build resists surface wear and preserves trimming concentricity across repeated reloading sessions.
Mechanical Operation: Fully manual benchtop accessory requiring no external power or electrical adapters.

Product Specifications

Calibre Compatibility: 9.3mm (.366-inch inside neck diameter, including 9.3x62mm Mauser, 9.3x74R, and 9.3x64mm Brenneke)
Mounting Shank Diameter: 3/16 inch
Material: Heat-treated, precision-machined solid steel
Trimmer Compatibility: Redding (Model 1400, Model 2400), Hornady, and Forster case trimmers accepting 3/16-inch shanks
Weight: Under 30 grams (approximate)

Who is the Redding 9.3mm Case Trimmer Pilot for?

Australian Sambar deer hunters handloading 9.3x62mm brass — Requires precision neck support sized to a .366-inch diameter to square medium-bore brass squarely against the cutter head for consistent hunting ammunition across Victorian and NSW hunting conditions.
Target shooters and handloaders using standard 3/16-inch lathe trimmers — Features a universal 3/16-inch shank that integrates directly with Redding, Forster, and Hornady case trimmers to process 9.3mm metallic cartridges without proprietary collet modifications.

Less suitable for: Handloaders prepping smaller diameters such as .338 or .358 calibres, larger bores of .375-inch or greater, trimmers with proprietary non-3/16-inch shanks (such as native RCBS, Lyman, or Wilson units without adapters), or high-volume commercial reloading requiring motorized pass-through trim dies for batches exceeding 20 to 100 cases.

SKU	RD41467LP
Model #	15362
Brand	Redding
Shipping Weight	1.0000kg
