What specific cartridges and bullet diameters is the Redding 24283 decapping rod assembly designed to fit?

This assembly is engineered for 7mm (.284" bullet diameter) cartridges with matching case body lengths. Specifically, it is compatible with 7x57mm Mauser, 7mm Remington Magnum, .284 Winchester, and 7x64mm Brenneke.

Is the Redding 24283 compatible with Redding Type S Bushing Dies?

No, the Redding 24283 decapping rod assembly is incompatible with Redding Type S Bushing Dies. It is specifically designed for Redding Standard Conventional Full-Length and Neck Sizing Dies.

Can I use this decapping rod assembly on Berdan-primed brass or military surplus cases with small flash holes?

No, the standard decapping pin included in this assembly is designed for Boxer-primed brass with standard flash holes. Attempting to use it on Berdan-primed cases will snap the pin.

Does this assembly come as a complete drop-in replacement unit?

Yes, the Redding 24283 is a complete factory-assembled unit that includes the threaded steel decapping rod, standard decapping pin, and a standard steel expander/size button for .284" calibre. It allows for quick and easy installation into your existing standard sizing die without modification.

Are there any Australian licensing requirements to purchase this reloading die accessory?

No licence is required to purchase replacement reloading die accessories under Australian firearms regulations. This mechanical component is unrestricted and widely distributed across Australian shooting supply retailers.

Can I upgrade the expander button on this assembly to a carbide version?

Yes, the threaded construction of the decapping rod allows for easy disassembly to replace bent pins or upgrade to an optional carbide size button such as the Redding Part #49283 for smoother case neck expansion.

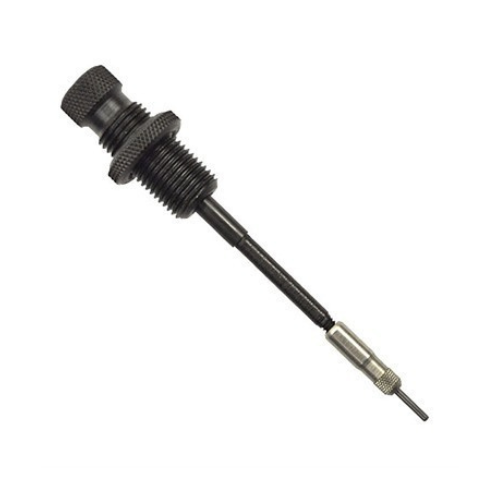

7mm Decapping Rod - Redding 24283

The Redding Decapping Rod Assembly for 7x57 & 7mm Remington Magnum Dies (MPN: 24283) is a factory-replacement component designed for conventional Redding full-length and neck sizing dies. Engineered for 7mm (.284" bullet diameter) cartridges, this complete drop-in assembly replaces bent or damaged internal parts to simultaneously punch out spent Boxer primers and expand the case neck to correct internal dimensions during the sizing stroke.

Key Features

Dual-Function Operation: Simultaneously extracts spent primers via a replaceable decapping pin and expands cartridge neck interiors to .284" in a single die stroke.
Complete Replacement Assembly: Pre-assembled with a threaded steel decapping rod (#01024), standard steel expander button (#40283), and standard decapping pin (#01060).
Serviceable Design: Threaded construction allows quick individual replacement of worn decapping pins or upgrading to optional carbide size buttons.
Drop-in Compatibility: Directly fits standard conventional Redding sizing dies without requiring machining or modification.

Specifications

Manufacturer Part Number (MPN): 24283
Compatible Bullet Diameter: 7mm (.284")
Compatible Cartridges: 7x57mm Mauser, 7mm Remington Magnum, .284 Winchester, 7x64mm Brenneke
Die Compatibility: Redding Standard Conventional Full-Length and Neck Sizing Dies
Flash Hole Compatibility: Standard Boxer-primed cases (~0.080" flash holes)
Power Source: Manual / Mechanical (0V)

Who is the Redding 24283 Decapping Rod Assembly For 7x57 & 7mm Remington Magnum Dies for?

Handloaders and hunters maintaining Redding 7mm sizing dies — restores damaged tooling to exact factory tolerances using a .284" diameter steel expander button to ensure proper bullet tension.
Reloaders processing 7x57mm and 7mm Remington Magnum brass — provides a dedicated decapping rod assembly engineered for the specific body lengths of standard 7mm bottleneck cases using ~0.080" Boxer primer flash holes.

Less suitable for: Handloaders running Redding Type S Bushing Dies or processing Berdan-primed brass; these setups require a dedicated Type S decapping rod assembly or a heavy-duty universal decapping die designed for alternative primer formats.

SKU	RD102360LP
Model #	24283
Brand	Redding
Shipping Weight	0.1000kg
