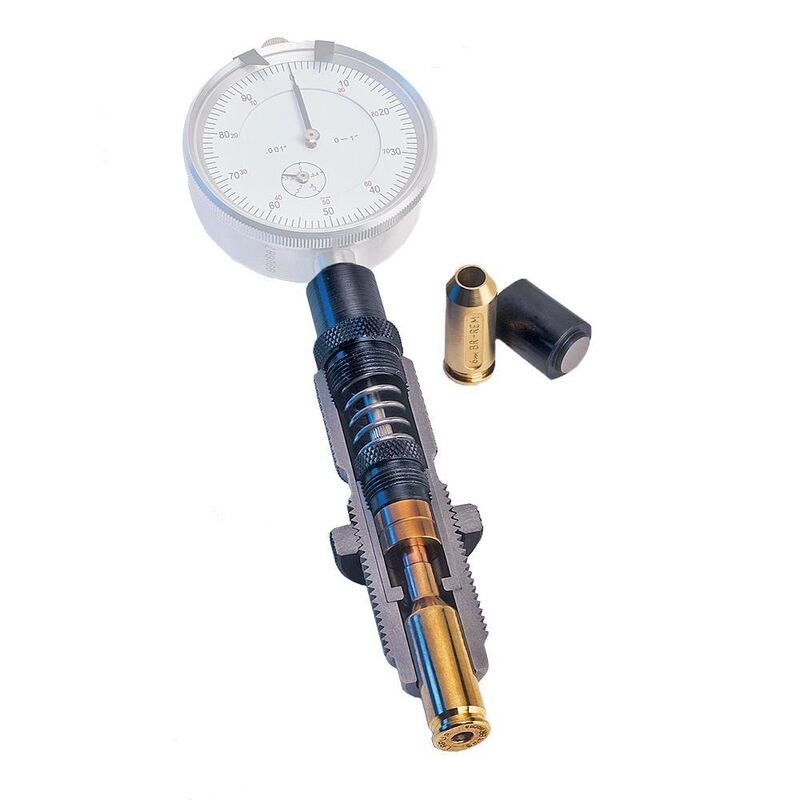

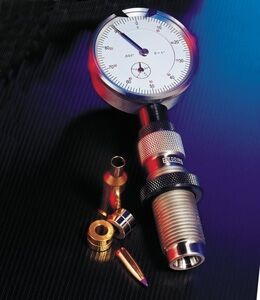

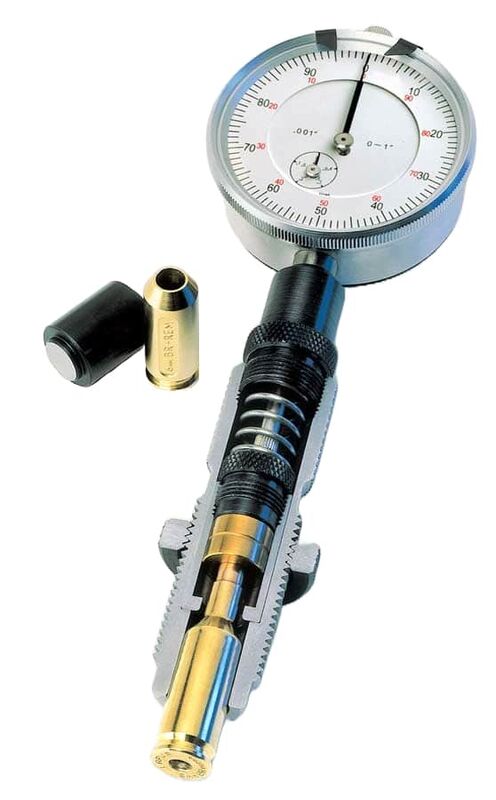

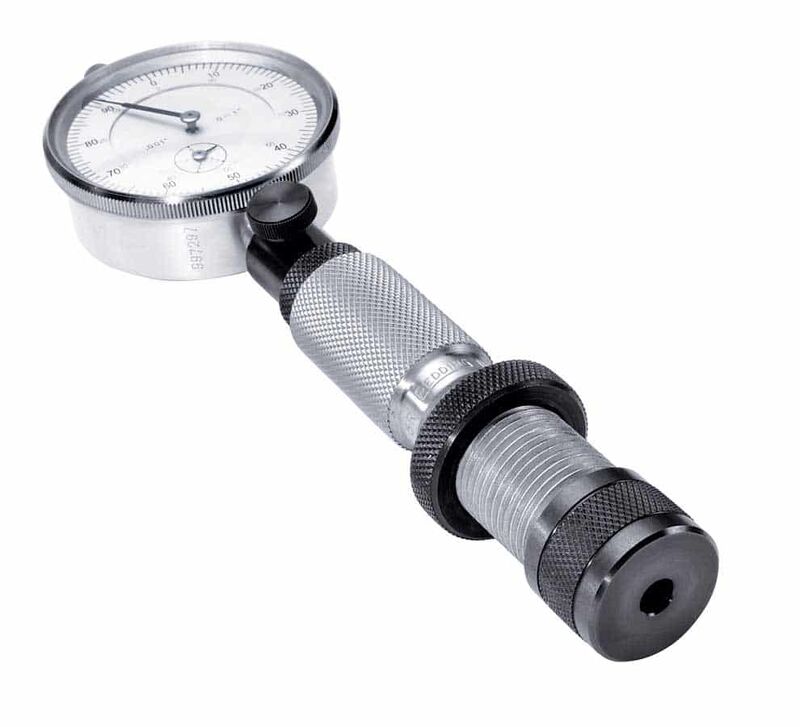

The Redding Instant Indicator Headspace and Bullet Comparator with Dial Indicator for 6.5 Creedmoor is a precision mechanical measuring tool engineered to screw directly into standard 7/8"-14 threaded reloading presses. Designed to evaluate comparative dimensions rather than absolute lengths, the tool measures fired versus resized case shoulder positions and loaded round base-to-ogive consistency using an included analogue dial indicator that reads in 0.001" (0.0254 mm) increments. It allows handloaders to accurately adjust full-length sizing dies to control shoulder bump, extend brass longevity, and verify uniform bullet seating depth across batches of 6.5 Creedmoor cartridges.

Key Features

• Direct Press Mounting: Features standard 7/8"-14 die threads to mount directly into standard single-stage and turret reloading presses.
• Comparative Precision: Features an analogue dial indicator that provides precise comparative readings in 0.001" increments.
• Headspace & Sizing Verification: Enables quick measurement of shoulder bump between fired and resized cases to ensure precise sizing die adjustment without overworking brass.
• Bullet Seating & Ogive Sorting: Measures loaded base-to-ogive dimensions to sort finished rounds and monitor bullet seating consistency.

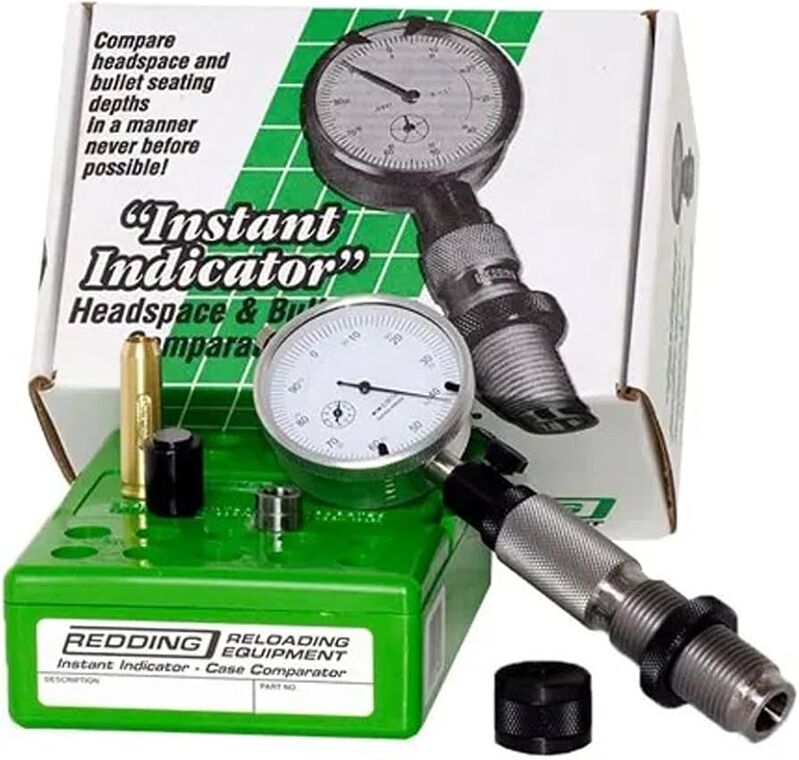

• Comprehensive Tool Kit: Includes the die body, 0.001" dial indicator, 6.5 mm bore diameter bushing, surface contactor, shoulder contactor, and a dedicated headspace gauge standard.
• 100% Mechanical Operation: Requires no batteries, external power, or electrical connections.

Specifications

• Calibre Compatibility: 6.5 Creedmoor
• Mounting Interface: 7/8"-14 reloading die thread
• Dial Resolution: 0.001" (0.0254 mm) increments
• Weight: Approximately 1.58 lbs (~716 g) boxed shipping weight
• Power Requirements: None (mechanical dial indicator)

Who is the Redding Instant Indicator Headspace and Bullet Comparator for?

• Precision Handloaders Loading 6.5 Creedmoor Ammunition: Mounts into standard 7/8"-14 threaded presses to measure fired versus resized brass at 0.001" increments, giving handloaders the exact feedback needed to set sizing dies for consistent shoulder bump on 6.5 Creedmoor cases.
• Competitive Shooters: Utilises the 0.001" dial indicator and 6.5 mm contactors to verify base-to-ogive seating depth and sort finished 6.5 Creedmoor cartridges for uniform chamber seating during long-range competition.

Less suitable for: Handloaders seeking a single measuring system for multiple different cartridge families, as this tool is strictly dedicated to the 6.5 Creedmoor chambering and requires calibre-specific headspace comparators for cartridges with different body tapers or shoulder angles; it is also less suited for portable range use unless paired with a standalone range adapter base.
